Page 2: Product Name

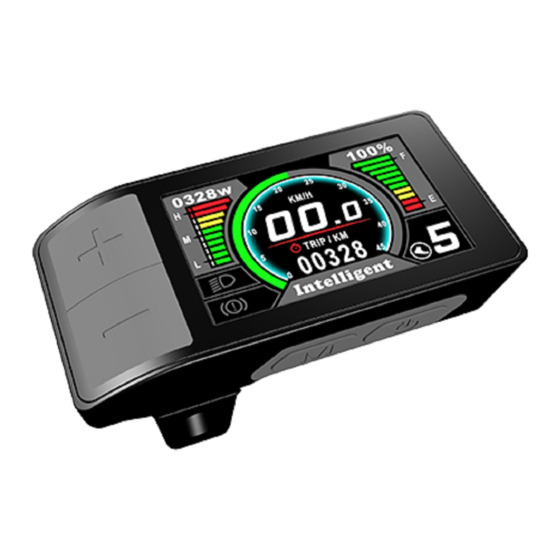

Tianjin APT Science and Technology Co., Ltd. 1． Product Name TFT LCD display Model : APT TFT 500C 2． Suppliers Tianjin APT Science and Technology Co., Ltd. Email : yzhao@aptdevelop.com apt@aptdevelop.com 3． Electrical Parameters 2.2inch IPS screen ... -
Page 3: Functional Description
Tianjin APT Science and Technology Co., Ltd. Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time). Kilometer / Mile : Can be set according to customers’ habits. Smart battery indicator : Provide a reliable battery indicator. 9-level Assist : 3-level/5-level/9-level optional. - Page 4 Tianjin APT Science and Technology Co., Ltd. 7.1 Power On/Off Press and hold Power button for 1 second can turn on/off the display. The Display can automatically shut down when there is no operate & ride for X minutes（X could be 0~9）.
-
Page 5: Parameter Setting
Tianjin APT Science and Technology Co., Ltd. * This feature needs to be supported by controller. 7.6 Data cleanup Press and hold UP & DOWN buttons together for 1 second can reset several temporary data, temporary data include AVG Speed / MAX Speed / Trip / Time. - Page 6 Tianjin APT Science and Technology Co., Ltd. 8.3 Auto off : Press UP/DOWN button to change the auto power off time, from 1 to 9/OFF, the number represent time (minutes) to shutdown, OFF means disable auto off function, default value is 5 minutes.
- Page 7 Tianjin APT Science and Technology Co., Ltd. Poles in motor : This item is invalid. Speed Poles 8.10 Start after poles : This item is invalid. Start Poles 8.11 Assist levels : This parameter can customize assist levels, options are 3/5/9.
- Page 8 Tianjin APT Science and Technology Co., Ltd. 10． Assembly instructions M4*10 Please pay attention to the screw’s torque value, damaged caused by excessive torque is not within the scope of the warranty. 11． Connector descriptions TEL: 86 22 2634 5859 1001, Building 5 HuaDing, No.1 HuaKe 3 Road,...
- Page 9 Tianjin APT Science and Technology Co., Ltd. 1、 Red wire : Anode(24v/36v/48V) 2、 Blue wire : Power cord to the controller 3、 Black wire : 4、 Green wire : RxD (controller -> display) 5、 Yellow wire : TxD (display -> controller) 12．...
