APT APT12LCD03U Product Specification

Tianjin APT Science and Technology Co., Ltd.

Product:

Super thin LCD display display

Model ：

Customer Type:LCD03U

Client:

Customer

audit:

Supplier:

Tianjin APT Science and Technology Co., Ltd.

1001, Building 5 HuaDing, No.1 HuaKe 3 Road, Binhai hi-tech

Industrial Development Zone, Tianjin, China

TEL:

TEL:+86 22 26345859

FAX:+86 22 83719955

yzhao@aptdevelop.com

Approval:

1001, Building 5 HuaDing, No.1 HuaKe 3 Road,

Xiqing District, Tianjin, China 300384

Product Specification

August 2013

APT12LCD03U

Email: yzhao@aptdevelop.com

TEL: 86 22 2634 5859

FAX: 86 22 8371 9955

Table of Contents

Need help?

Do you have a question about the APT12LCD03U and is the answer not in the manual?

Page 1 Tianjin APT Science and Technology Co., Ltd. Product Specification August 2013 Product: Super thin LCD display display Model ： APT12LCD03U Customer Type:LCD03U Client: Customer audit: Supplier: Tianjin APT Science and Technology Co., Ltd. 1001, Building 5 HuaDing, No.1 HuaKe 3 Road, Binhai hi-tech...

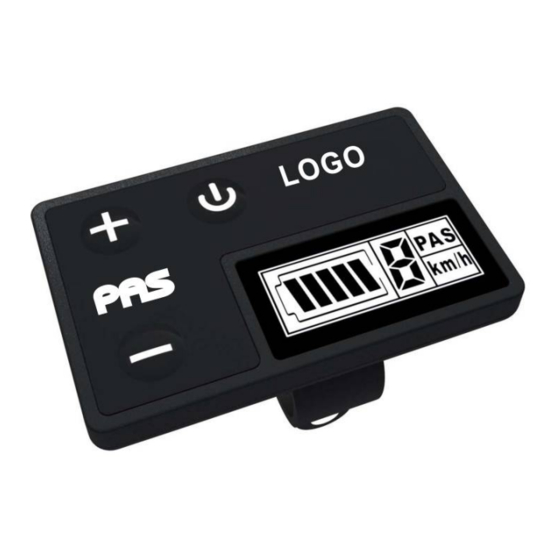

Page 2 Tianjin APT Science and Technology Co., Ltd. 1 Summary 1.1 Product Name: Super thin LCD display display 5-cell waterproof connector Product Type: APT12LCD03U / LCD03U Supplier Tianjin APT Science and Technology Co., Ltd. Functional Description  Voltage:24V、36V  Assist level 0-6 (max 9), 0 means no power assist ...
Page 3 Tianjin APT Science and Technology Co., Ltd.  Off leakage current < 1uA  Operating temperature: -18 ~ 60 ℃.  Storage Temperature: -30 ~ 70 ℃.  90% relative humidity, non-condensing. Film icon 2 LCD introductions 2.1 LCD All showing Figure as follow：...
Page 4 Tianjin APT Science and Technology Co., Ltd.  button : Press the button to increase the PAS level.  button : Press and hold the button for 1.5 second can turn ON/OFF the head light and the LCD backlight. ...
Page 5 Tianjin APT Science and Technology Co., Ltd. 6 Connector wires instructions 1、 Red wire : Anode(24v/36v) 2、 Blue wire : Power cord to the controller 3、 Black wire : 4、 Green wire : RxD (controller -> display) 5、 Yellow wire : TxD (display -> controller) 7 Certification IP65 (water proof) / ROHS.
