5.2 Lamp replacement and quartz sleeve cleaning

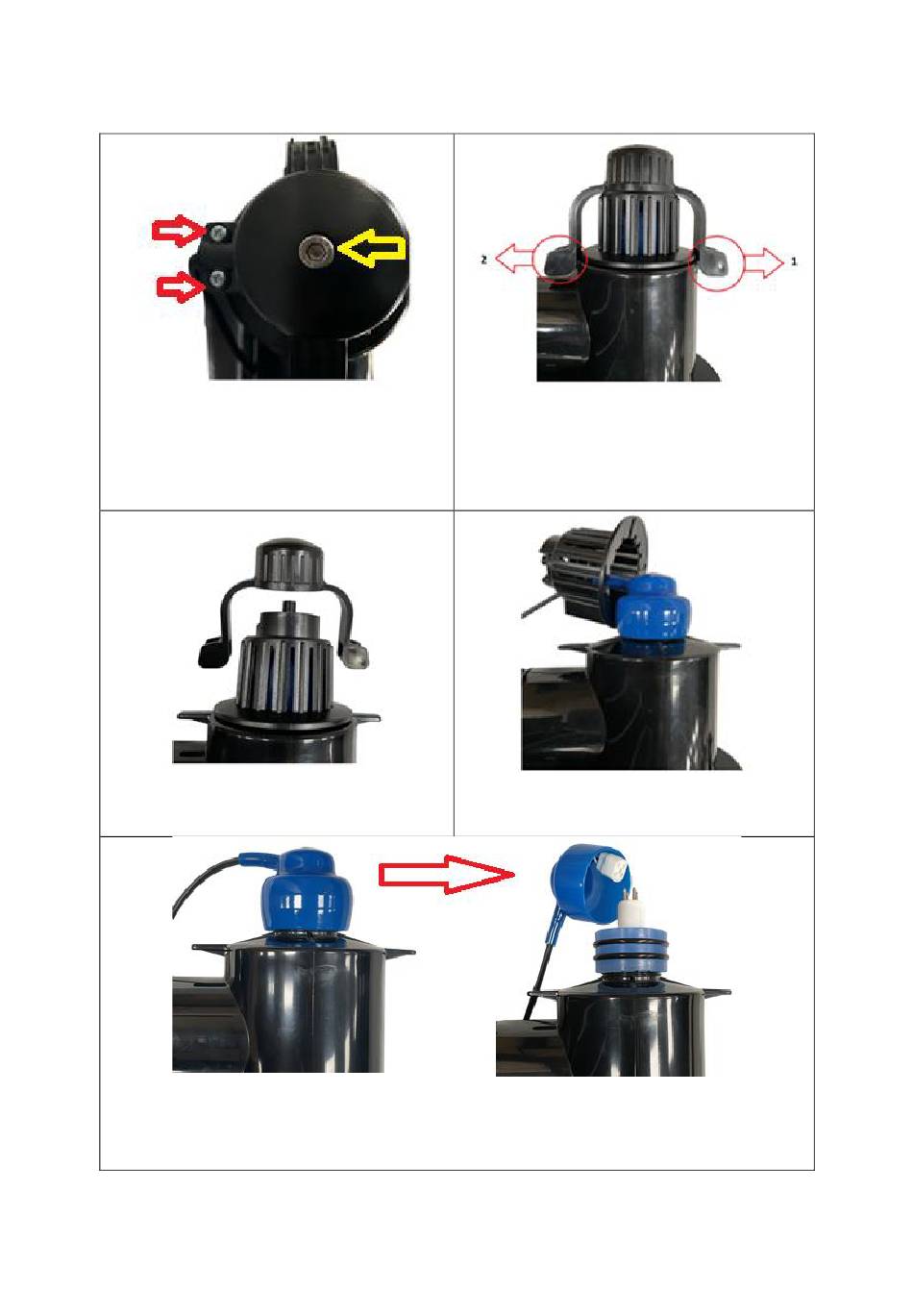

Removing the lamp and quartz sleeve
Unscrew all the highlighted fasteners
Remove Lamp holder Clip from Hard cap
Carefully remove the blue lamp holder shroud
Unclamping the clip from body
1. Pull the clip in shown direction to
unlock from body
2. Pull the second side after unlocking
st
the 1
side
Unmount the Hard cap from Blue lamp
and
white plastic electrical end caps from
the lamp end
Holder
11
