- Page 1 QUANTUM CLASSIC Photocatalytic Pool Sanitiser Installation & Operating Manual Q-65 Q-130...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................... 3 PRODUCT OVERVIEW ........................3 GENERAL INSTALLATION INSTRUCTION ..................5 3.1 Mounting instructions ........................5 Pipe work ........................... 5 3.3 Flow direction ..........................6 3.4 Connection ............................. 8 3.6 Electrical connection ........................9 OPERATING INSTRUCTIONS ......................9 4.1 Flow requirements .......................... -
Page 3: Important Safety Instructions

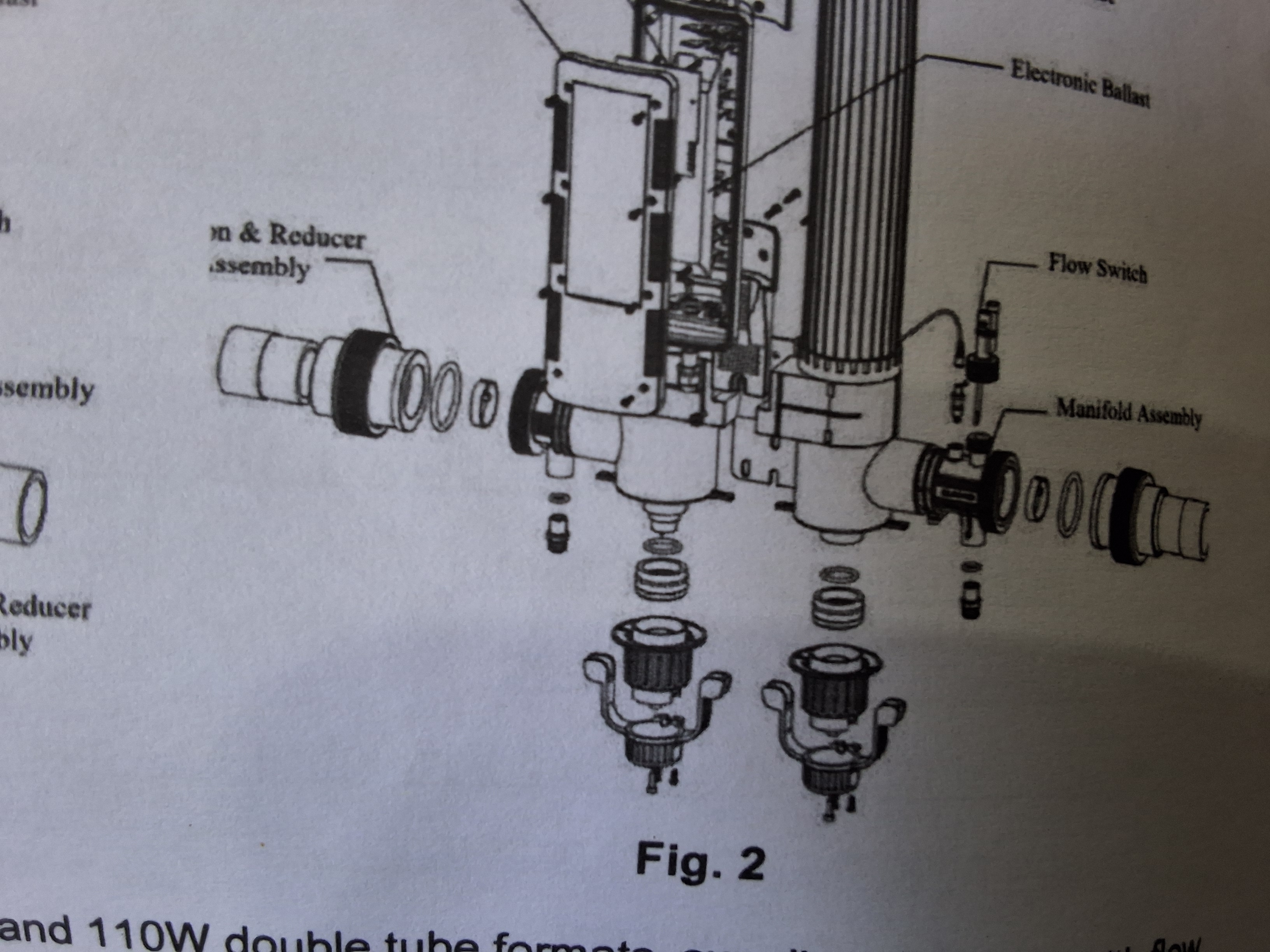

Introduction Thank you for purchasing the Quantum pool sanitising system, the latest sanitisation technology, manufactured to the highest standards in England. To ensure years of trouble-free service, please read and follow these instructions for proper installation, maintenance and use. Incorrect installation will affect your warranty. Please retain this manual for future reference. - Page 4 The Quantum is available in 55W single tube and 110W double tube formats, supplied complete with flow switch and either an analogue lamp life indicator and reset switch, or digital lamp life countdown with intelligent dosing pump. Dimensions:...
-
Page 5: General Installation Instruction
3. GENERAL INSTALLATION INSTRUCTION 3.1 Mounting instructions The Quantum should be either installed horizontally or vertically allowing enough space for the pipe connections, wiring and maintenance of lamps/quartz sleeve(s). It should be firmly secured, using the fixing kit provided, to a solid wall. NOTE: When mounting the UV, it is essential to leave a clearance space of at least 1 metre from one side of the unit to allow access to replace the lamp(s) and/or quartz... -
Page 6: Flow Direction
Fig. 4 Fig. 5 3.3 Flow direction The Quantum is factory set to accept input water flow entering on the left and exiting on the right, this can be reversed by rotating the flow switch 180 degrees (i.e. ½ turn - see Fig. 6). - Page 7 Fig. 6 WARNING: The flow switch paddle can be damaged when reversing the flow direction if it is lifted by more than 5mm from its housing and turned with force. If the flow switch has been rotated it is important to ensure that it is finally locked in the correct orientation perpendicular (at right angles) to the flow of water.
-
Page 8: Connection
3.4 Connection The unit is supplied with unions to allow connection to 2" or 63-mm rigid pipe. Reducers are also supplied to allow connection to 50-mm or 1½" rigid pipe - see Fig 7. For pipework 63-mm or 2” in diameter. For pipework 50-mm or 1½“... -
Page 9: Electrical Connection
3.6 Electrical connection • This device must be installed by a qualified Electrician following the WARNINGS: instructions provided in this manual. The manufacturer will not be liable for any issues caused by poor or improper installation. • Any alterations made to the unit (unless stated) will affect the warranty. This also applies if components are changed for non-standard components acquired anywhere other than direct from the manufacturer. -
Page 10: Water Quality
4.3 Water quality The water quality MUST be within the following limits: • PH: 6.8 – 8.0 • Total Alkalinity (TA): 80 – 140 ppm (parts per million) • Chloride Content MAX: 150 mg/litre • Free Chlorine: 2.0 mg/litre • Total Bromine: Max 4.5 mg/litre •... -
Page 11: Lamp Replacement And Quartz Sleeve Cleaning
5.2 Lamp replacement and quartz sleeve cleaning Removing the lamp and quartz sleeve Unclamping the clip from body 1. Pull the clip in shown direction to unlock from body Unscrew all the highlighted fasteners 2. Pull the second side after unlocking the side Remove Lamp holder Clip from Hard Unmount the Hard cap from Blue lamp Holder... - Page 12 Unscrew the blue quartz sleeve Slide the O-ring off the quartz sleeve locking nut anticlockwise. Both ends must be unscrewed before the quartz sleeve can be removed The quartz sleeve can now be removed. Cleaning the quartz sleeve Clean the sleeve and polish with a soft cloth or paper towel. If you live in a hard water area there may be some limescale on the quartz sleeve.
-
Page 13: Disposal Of Electrical/Electronic Equipment
NOTE: Pinch the blue lamp holder shroud as you reassemble the unit to release any trapped air. Failure to release the trapped air may cause the lamp holder to disconnect from the lamp end. Turn on the water supply to check for leaks before reconnecting the electric supply. - Page 14 Notes: ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ………………………………………………………………………………………………. ……………………………………………………………………………………………….
- Page 15 Elecro Engineering Ltd Repairs Department Unit 11 Gunnels Wood Park Gunnels Wood Road Stevenage Hertfordshire SG1 2BH United Kingdom __________________________________________________________________________________ Customer Information: (ATTACH TO THE PRODUCT) ………………………………………………………………………………. Company Name: ………………………………………………………………………………. Contact Name: Daytime Telephone Number: ………………………………………………………………………………. ……………………………………………………………………………….. Email Address: ………………………………………………………………………………..
- Page 16 Unit 11, Gunnels Wood Park, Stevenage, Herts SG1 2BH Sales@elecro.co.uk www.elecro.co.uk +44 (0) 1438 749474 © Copyright MANE166-EN-Quantum Classic Manual V2-31.08.2021-Elecro...
