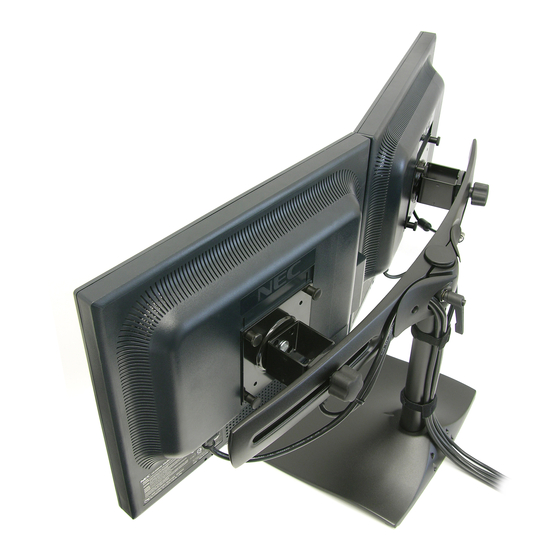

Ergotron DS100 Assembly Instructions Manual

Quad monitor desk stand

Hide thumbs Also See for DS100:

www.ergotron.com

DS100 Quad Monitor Desk

Stand

Part Number: 33-096-200

Weight Capacity: 28 lbs (12.7 kg)

per pivot

Weight capacity may be

diminished if monitor depth is

greater than 2 inches

Meets UL Speciﬁ cation 1678 Tip

Test

TUV-GS Safety Certiﬁ cate

Mounting Standards: VESA FDMI

MIS-D, 100/75, C (hole pattern:

100 x 100 mm & 75 x 75 mm)

• Warranty: Five (5) years

888-33-096P-01 rev.C • 11/06

DS100 Quad Monitor Desk Stand

75-100mm

1/8"

13mm

ASSEMBLY INSTRUCTIONS

16x

#8-32

16x

M4 x 10mm

3/32"

13mm

1 of 7

Table of Contents

Need help?

Do you have a question about the DS100 and is the answer not in the manual?

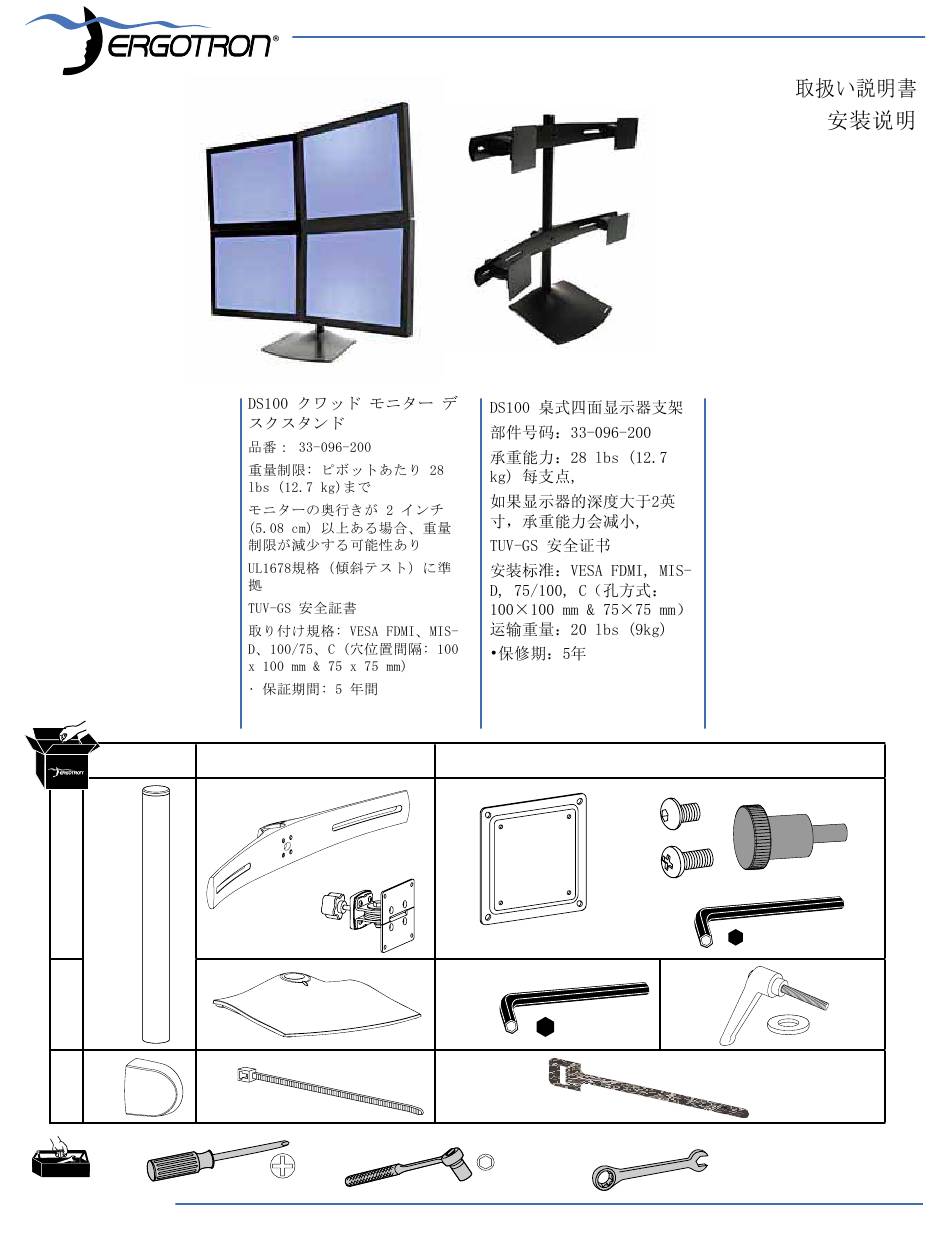

Page 1 DS100 Quad Monitor Desk Stand ASSEMBLY INSTRUCTIONS www.ergotron.com DS100 Quad Monitor Desk Stand Part Number: 33-096-200 Weight Capacity: 28 lbs (12.7 kg) per pivot Weight capacity may be diminished if monitor depth is greater than 2 inches Meets UL Speciﬁ cation 1678 Tip Test TUV-GS Safety Certiﬁ...
Page 2 ATTACH DISPLAY 100 x 100mm 3/32" 75 x 75mm #8-32 M4 x 10 mm ATTACH BASE 1/8" 888-33-096P-01 rev.C • 11/06 2 of 7...
Page 3 ADJUST HEIGHT Caution: support display so that it doesn’t slip down while adjusting height. CABLE ROUTING 888-33-096P-01 rev.C • 11/06 3 of 7...
Page 4 RANGE OF MOTION - This product is designed to adjust quickly and easily according to your needs – refer to following steps for adjustment. If it does not stay in place or movement is stiff, tension needs adjustment. Adjust until motion is equal. Pan –...
Page 5 Trouble Shooting Problem Cause Solution Adjust Pan Display pans side-to-side too Tension needs adjustment. easily or with difﬁ culty. Weight Capacity: 28 lbs. (12.7 kg) per pivot. 28 lbs. (12.7 kg) per pivot. 888-33-096P-01 rev.C • 11/06 5 of 7...
