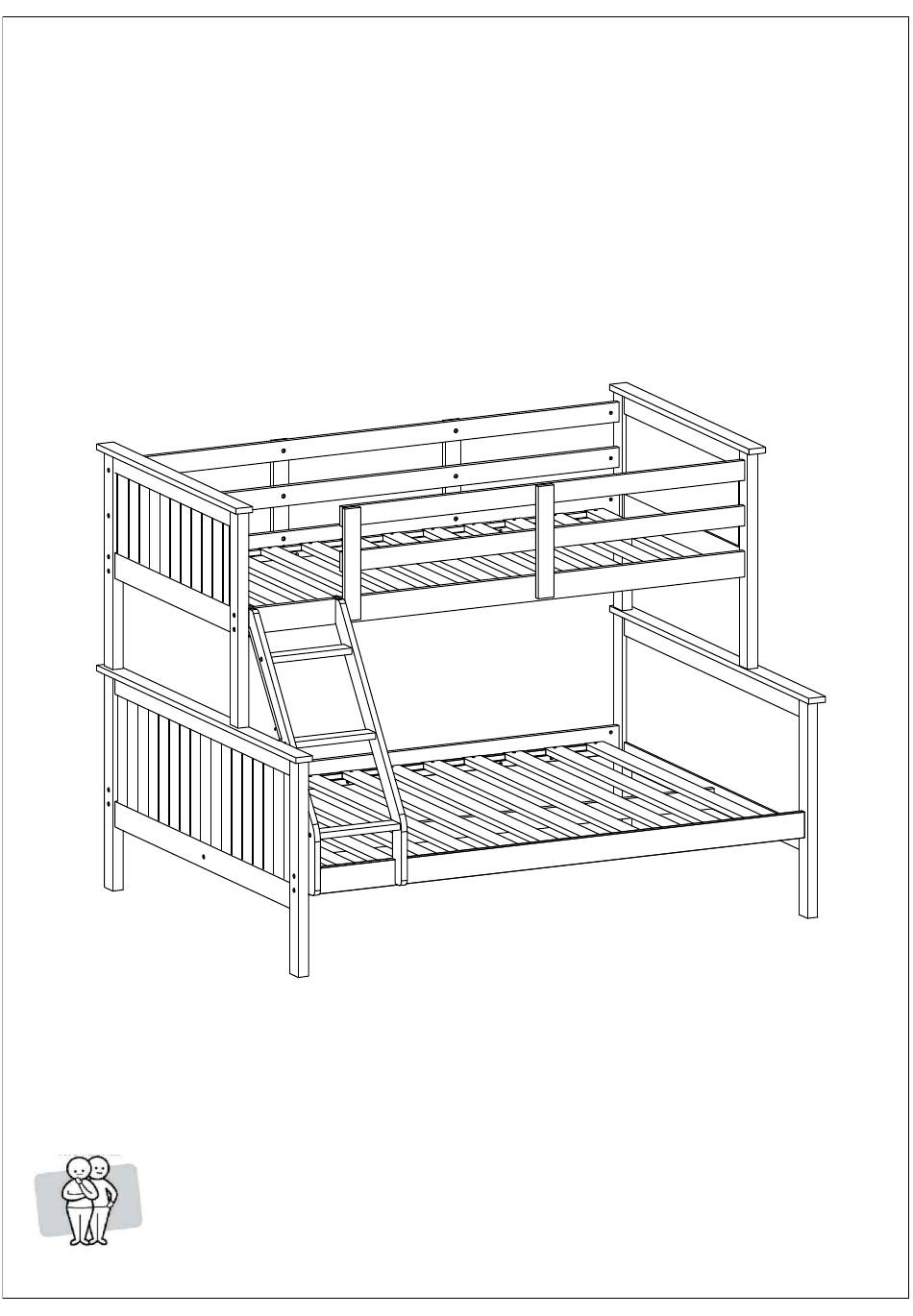

  • Page 1 JY-160204 TWO PEOPLE Addison Double/Single Bunk REQUIRED...
  • Page 2 PAGE 1...

  • Page 3: What You Need

    What you need UPPER REAR SIDE GUARD RAIL SUPPORT RAIL (P9) To assemble the Product TWIN BED SLAT (P10) (P18) TWIN BED RIGHT END PANEL (P3) REAR GUARD RAIL (P11) FRONT GUARD RAIL (P12) DO NOT USE TWIN BED Other tools you need LEFT END PANEL UPPER FRONT SIDE Philips Head Screwdriver...

  • Page 4: You Will Need

    Step 1: You will need 4 x HEXAGON SCREWS 4 x BARREL NUTS 1 x JCBC SCREWS ALLEN KEY (H11) Attach lower front side rails (P5), lower rear side rails (P6) to the full bed right end panel (P1) by using 4 x hexagon screws (H1) with 4 x barrel nuts (H2).
  • Page 5 Step 3: Philips Head Screwdriver You will need (Tools not provided) 36 x SCREWS (H5) 4 x METAL DOWELS (H6) (H5) Attach 12 full bed slats (P17) to lower front side rail (P5) and lower rear side rail (P6) with 36 x screws (H6) by using philips Head Screw driver.
  • Page 6 Step 5: You will need 8 x HEXAGON SCREWS (H3) (H11) ALLEN KEY (H11) Attach 2 guard rail support (P10) to the 2 front guard rail (P12) and upper front side rail (P8) by using 8 x hexagon screws (H3). But do not fully tighten screws. Step 6: You will need (H1)

  • Page 7: Two People

    Step 7: You will need Philips Head Screwdriver (Tools not provided) 24 x SCREWS (H6) Attach 12 twin bed slats (P18) to upper front side rail (P8) and upper rear side rail (P9) with 24 x screws (H6) by using philips Head Screw driver. Step 8: TWO PEOPLE REQUIRED...
  • Page 8 Step 9: Philips Head Screwdriver (Tools not provided) You will need 6 x JCBC SCREWS (H8) 2 X METAL HOOK (H10) OF LADDER (H10) 2 x SCREWS 4 x SCREWS ALLEN KEY (H11) (H9) (H9) (H7) (H11) (H9) (H11) Attach ladder step (14) to the ladder rails left and right (13), (14) with 6 x JCBC Screws (H9) and tighten screws by using Allen Key (H11).
  • Page 9 Step 11: You will need 1 x SCREWS 2 x SCREWS Philips Head Screwdriver (Tools not provided) (H8) (H7) Fix the metal hook of la dder with 2 x screws (H8). Then fix trlangle panel (P16) to twin bed left end panel (P4) using 1 x screws (H7) from inside.
