INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION
PLEASE RECORD THE SERIAL NUMBER ________________ OF SHOWER BASE
IMPORTANT: The acrylic shower bases and walls were carefully
inspected and packed for shipment.
You should check your unit and if there are any problems contact
your dealer before installation.
Protect the shower base and walls from dirt and damage by
leaving the polyethylene protective film in place until installation
and other related construction is complete.
NOTE: Remove the protective film around the flange during
installation prior to drywall and tile application.
Follow Local Building Codes.
Tools and Materials Required
Tools: Tape Measure, Electric Drill, Drill Bit (3/16"),
Level, Caulking Gun and Hole Saw
Materials: Mildew Resistant Silicone Bathroom Caulking,
Drywall Screws and Shims (if required).
PREPARATION
Prepare for installation of a corner base and walls as in Fig. 1.
Refer to Shower Base Specifications for location of drain:
"X" the distance from the corner to the center line of the nailing
stud is dimension "A" of the base plus ½ in. (12 mm)
"Y" the distance from the floor to the center of blocking is the
height of the base plus 73 in. (1854 mm).

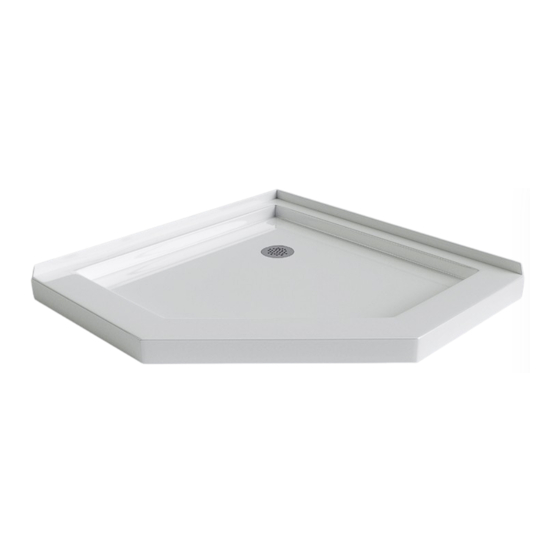

NEO-ANGLE CORNER BASE
TOP VIEW
A
B
B
A
C
©
Copyright 2010 Mirolin Ind.
SORRENTO SERIES
ACRYLIC SHOWER BASE & WALLS
SAVE THIS MANUAL FOR FUTURE REFERENCE
C
SIDE VIEW
FRONT VIEW
3/8 po (9 mm)
DRAIN TO FLOOR CLEARANCE
The Copyright includes all content on the document
ROUND FRONT CORNER BASE
TOP VIEW
A
B
B
A
FIGURE 1- SORRENTO CORNER INSTALLATION
Y
B
5" diam. (127 mm)
Clearance
A B
MODEL C
SB 38 NA Neo - Angle Corner Base
20
38 12
inch
508
965 305
mm
SB 42 NA Neo - Angle Corner Base
41 12 23 ¾
inch
1041 305 648
mm
SB 38 RF Round Front Corner Base
37 ½ 12
inch
953 305
mm
SB 42 RF Round Front Corner Base
41 ½ 12
inch
1054 305
mm
.
mirolin.com
NOTE: - Tolerances on dimensions
± 1/4" (6 mm)
- The drain hole is 3 ¼" (83
mm) dia.
SIDE VIEW
3/8" (9 mm)
DRAIN TO FLOOR CLEARANCE
FRONT VIEW
B
D F G
E
25 ½ 3 4 ½ 41
648 114 1041
76
25 ½ 3 4 ½ 46
648 114 1168
76
3 4 ½ 44
76 114 1118
3 4 ½ 50
76 114 1270
