Fishman FLUENCE CUSTOM MATT HEAFY Series Installation Manual page 10

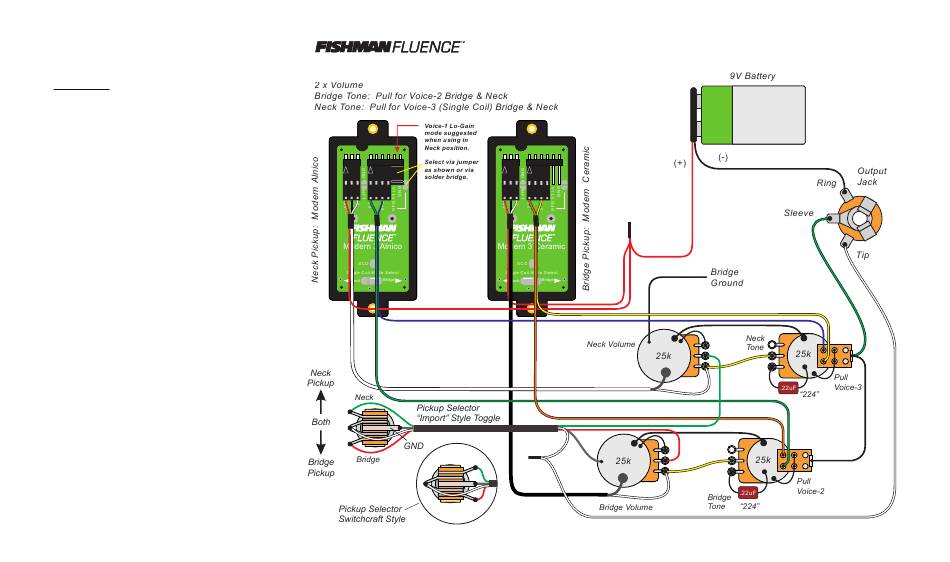

Custom Series Matt Heafy Set Wiring
Standard wiring with dual voice switching.
Pot Controls:
1. Neck Volume
2. Neck Tone (Pull for Voice 2)
3. Bridge Volume
4. Bridge Tone (Pull for Voice 3)
Voice 1 Alnico – Modern Active
(voicing switch open position)
6 String Peak frequency – 650Hz
7 8 9 String Peak frequency – 630 Hz
Voice 1 Ceramic – Modern Active
(voicing switch open position)
6 String Peak frequency – 630Hz
7 8 9 String Peak frequency – 730Hz
Voice 2 Alnico – Crisp, clean and fluid
(voicing switch grounded position)
6 String Peak frequency – 420Hz / 8 kHz
7 8 9 String Peak frequency – 420Hz / 8 kHz
Voice 2 Ceramic – Modern passive attack
(voicing switch grounded position)
6 String Peak frequency – 1.8 kHz
7 8 9 String Peak frequency – 1.8 kHz
Voice 3 Alnico (Single Coil) - Glassy,
Scooped, Hi-fi
6 String Peak frequency - 4.7 kHz
7 8 9 String Peak frequency - 4.7 kHz
Voice 3 Ceramic (Single Coil) - Cutting,
overwound single coil
6 String Peak frequency - 4.5 kHz
7 8 9 String Peak frequency - 4.5 kHz
Custom Series Matt Heafy Set and
Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown) Modern Humbucker Set - 6,7,8,& 9-String (6-String set shown)
