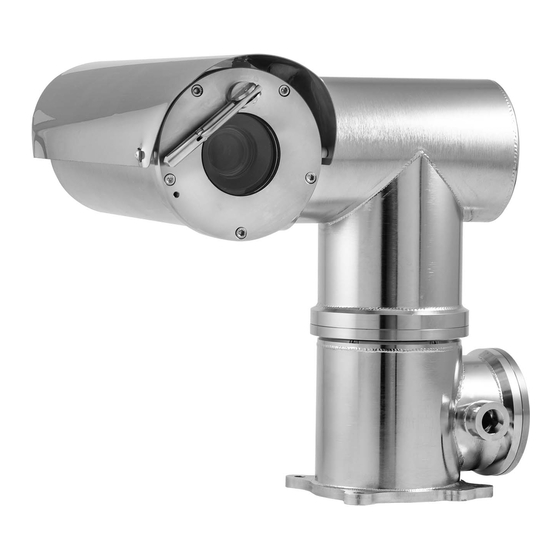

Flame Proof Camera Housings
Installation & Maintenance Instructions
This manual should be read before attempting to connect or operate the equipment
This equipment shall be installed in accordance with the latest local/national codes of practice, and standards
e.g. :- BS EN 60079-14:2014 Explosive atmospheres – Part 14: Electrical installations design, selection and
erection
Whilst every effort has been made to ensure that all information in this document is correct at the time of
publication, due to our policy of continuous improvement, the company reserves the right to change any
information contained herein without notice or reference.
With the exception to Annex
OXALIS
Unit B Sutton Park Way
Oddicroft Lane, Sutton in Ashfield
NG17 5FB
Tel: +44 (0)1623 444400
XP & XT Series
& Pan Tilt Units
IECEx/ATEX Certified
II 2 G Ex db IIC
II 2 D Ex tb IIIC
(IEC 60079-14:2013)
A
which must be referred to the certification Body.
TM393 – XP-XT LW ATEX_IECEx ISS_A
Advertisement
Table of Contents
Related Manuals for Eaton Oxalis XP Series
Summary of Contents for Eaton Oxalis XP Series
- Page 1 TM393 – XP-XT LW ATEX_IECEx ISS_A OXALIS Unit B Sutton Park Way Oddicroft Lane, Sutton in Ashfield NG17 5FB Tel: +44 (0)1623 444400 XP & XT Series Flame Proof Camera Housings & Pan Tilt Units IECEx/ATEX Certified II 2 G Ex db IIC II 2 D Ex tb IIIC Installation &...
-
