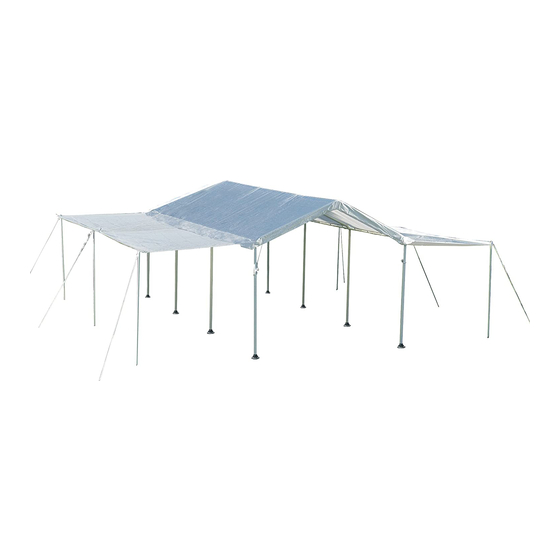

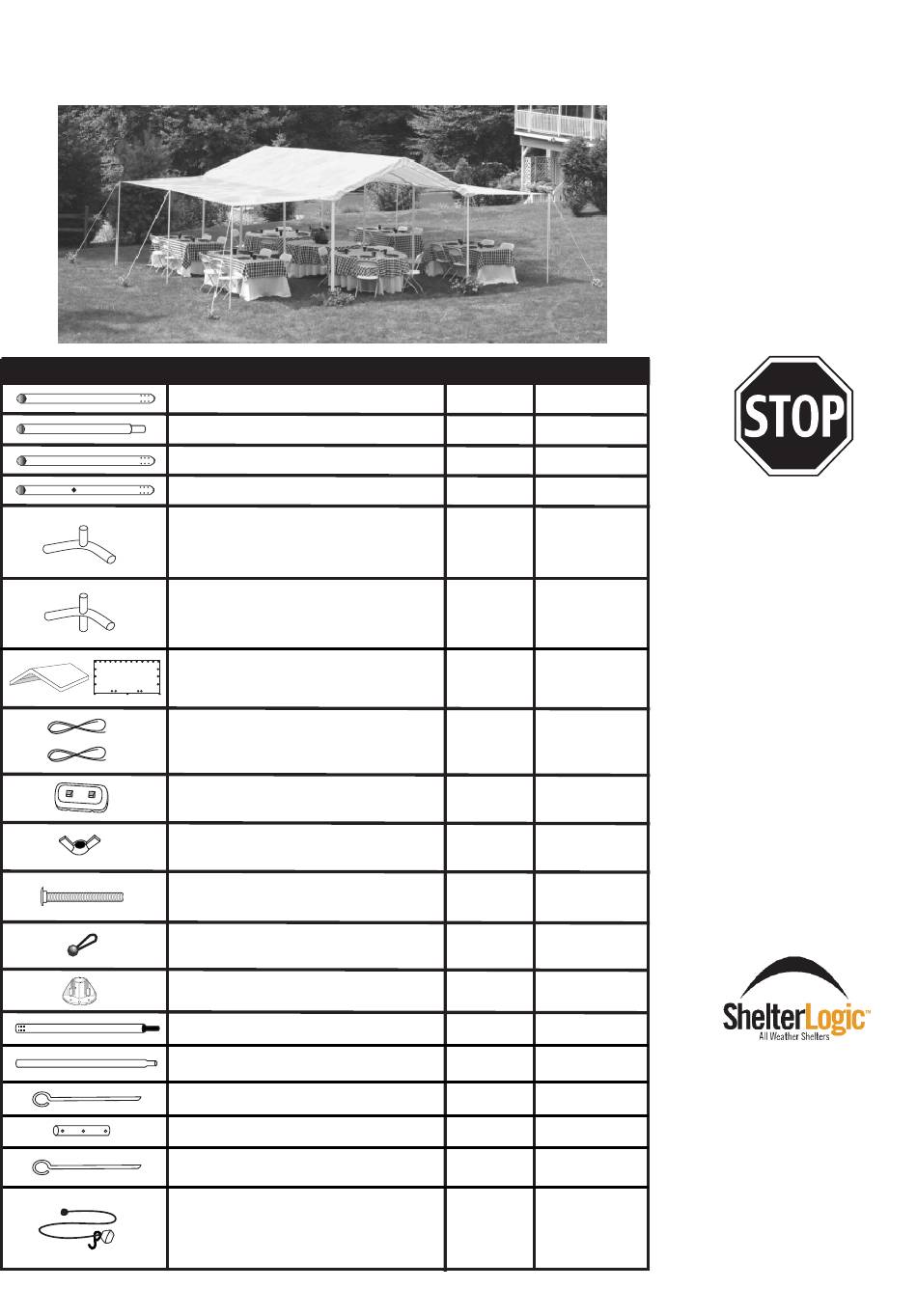

3 in 1 PREMIUM 10x20 CANOPY
Please read instructions completely bef e assembly
24.4" Rafter Tube
40.7" Swedged Tube
39.5" Straight Cross Tube
39" Straight Tube with extra hole
3-Way Frame Connectors
4-Way Frame Connectors
All-Weather Cover
Side Walls
Ropes 10'
Ropes 40'
Clamp
Wing Nut
Bolts 1/4" x 1 1/2"
Bungee Cords
Feet Plates
Tent Pole
Tent Pole Swedged
Anchors
Rope Clamps
Anchors
Tetherball
"S" Hook
Ropes 3'
This canopy must be anchored!!!
Description
Qty.
Part #
13104
8
13103
25
13107
9
13105
8
6
13101
6
13102
1
10072
2
12082
6
10437
2
10432
8
10462
8
7000
8
3025
74
10066
8
10075
6
10458
10459
6
8
10431
6
10436
6
10447
4
10465
4
10464
4
10463
Page 1
Model #23530
or
D D O O N N O O T T
R R E E T T U U R R N N
P P R R O O D D U U C C T T T T O O
S S T T O O R R E E
FO O R R MIS S S S IN N G O O R R
R R E E P P LAC C E E ME E N N T T
P P AR R T T S S
P P LE E AS S E E C C O O N N T T AC C T T
C C U U S S T T O O ME E R R
S S E E R R V V IC C E E : :
1 1 . . 8 8 0 0 0 0 . . 5 5 2 2 4 4 . . 9 9 9 9 7 7 0 0
150 Callender Road
Watertown, CT 06795
05-23530-0B 08/24/06
Advertisement
Related Manuals for ShelterLogic 23530
Summary of Contents for ShelterLogic 23530
- Page 1 3 in 1 PREMIUM 10x20 CANOPY Model #23530 Please read instructions completely bef e assembly Description Qty. Part # 13104 24.4" Rafter Tube 13103 40.7" Swedged Tube 13107 39.5" Straight Cross Tube 13105 39" Straight Tube with extra hole D D O O N N O O T T...
- Page 2 1. FRAME ASSEMBL Y 13101 13103 13104 13101 Combine all the parts listed below to form the frame, starting with the center peak, 13107 and then assemble each side. 13103 17 - #13103 (40.7" Swedged Tubes) 8 - #13104 (24.4" Rafter Tubes) 13102 9 - #13107 (39.5"...
- Page 3 6. ATTACHING WALLS Walls attach to unit by Bungee Cords. Thread bungee cord through grommetts in wall and wrap around pole. If using more than one wall, attach all the walls at the top first, than work your way around the unit wrapping the bungee cords through both corners of the walls and legs.
- Page 4 IMPORTANT:PLEASE READ CAREFULLY: ShelterLogic has no control over the elements such as wind, snow or heavy rain, we cannot be respon- sible for damage caused by the canopy or to the canopy. We suggest you contact your insurance carrier for information just as you would for any other outside structure.
