10' x 20'
2-IN-1 MAX AP CANOPY & EXTENSION KIT
Assembly Instructions
DESCrIPTION
MODEl #

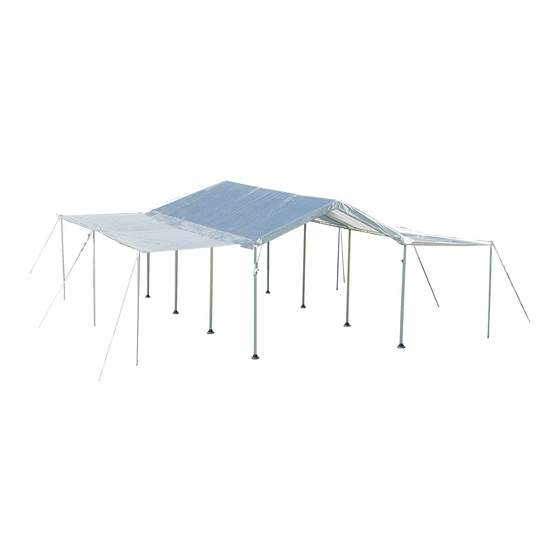

10' x 20' 2-in-1 MAX AP Canopy & Extension Kit - 8 Leg - White
23530
rECOMMENDED TOOlS
Please read instructions COMPLETELY before assembly. This shelter MUST be securely anchored.
THIS IS A TEMPORARY STRUCTURE AND NOT RECOMMENDED AS A PERMANENT STRUCTURE.
Before you start: 2+ individual recommended for assembly, approximate time 3 hr.
