Assure
Assembly Instructions

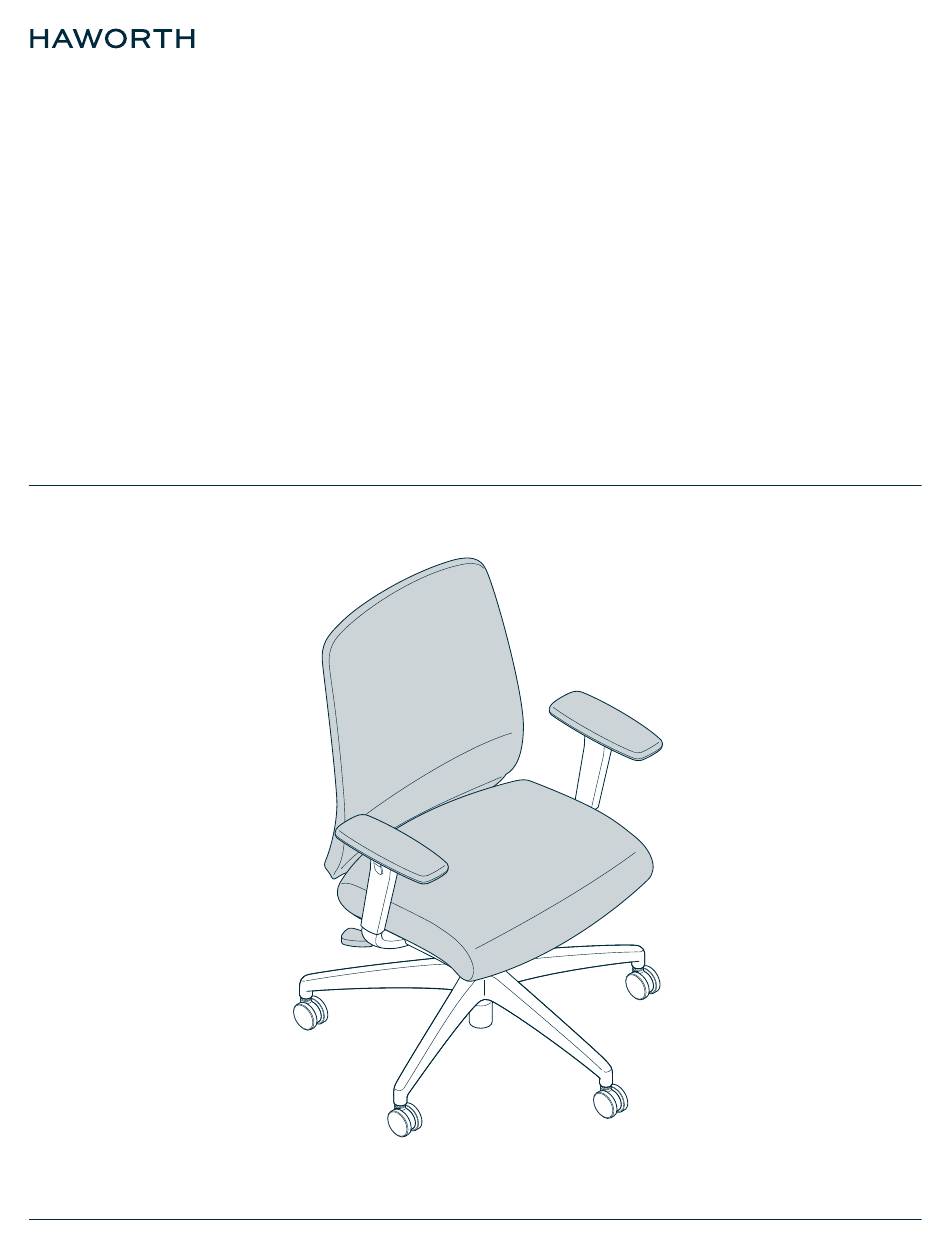

Congratulations on your
purchase of a new

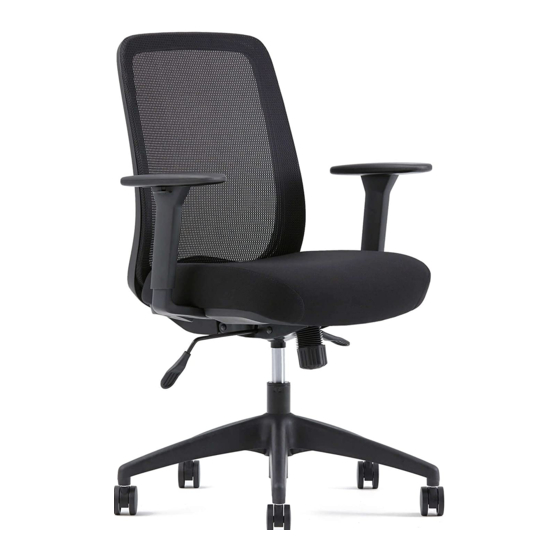

Assure Office Chair!
For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com
Ready to assemble your new chair?
Follow all the steps carefully before using your chair.
That's it! Now you're ready to get down to business with a chair
that's just right for you and your space.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Haworth Assure
Summary of Contents for Haworth Assure
- Page 1 That’s it! Now you’re ready to get down to business with a chair Assure Office Chair! that’s just right for you and your space. For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
- Page 2 Assure Assembly Instructions Tools Required 3/16” Included in hardware pack Assembly Overview S237 S236 Scale 1 : 1 S238 (S236) 5/16 x 22mm Bolt S237 S239 (S239) 5/16 x 25mm Bolt (S238) 5/16 x 30mm Bolt (S237) 1/4 x 35mm Bolt Customer Service: 800 426 8562 E.C.O.
- Page 3 Assure Assembly Instructions (A) Chair Back (C) Arm - Right (D) Arm - Left (E) Synchro-Tilt Mechanism (F) Pneumatic Cylinder (B) Chair Seat (G) Base (H) Casters - Qty. 5 (S236) 5/16 x 22mm Bolts - Qty. 4 (S237) 1/4 x 35mm Bolts and (S238) 5/16 x 30mm Bolts - Qty.
- Page 4 Assure Assembly Instructions Turn base (G) upside down and press casters (H) into sockets Turn base (G) right side up and insert pneumatic cylinder (F) NOTE: Install cylinder (F) with green button facing up Customer Service: 800 426 8562 E.C.O. No 245-691...
- Page 5 Assure Assembly Instructions Turn seat (B) upside down and attach arms (C and D) as shown, tightening bolts securely after setting arms in desired position NOTE: Install the arm marked S237 with an "R" on sitter's right side and the arm marked with an "L"...
- Page 6 Assure Assembly Instructions Align holes in syncro-tilt mechanism (E) to those on the bottom of the seat (B) and install bolts as shown S239 NOTE: Use longer bolts (S238) to attach the front of the S238 mechanism and shorter bolts...
- Page 7 Assure Assembly Instructions Flip the seat assembly over and install onto the base assembly Sit down firmly in the chair to properly secure the seat/mechanism, pneumatic cylinder, and base connections Customer Service: 800 426 8562 E.C.O. No 245-691 Part No 6100-0184...
