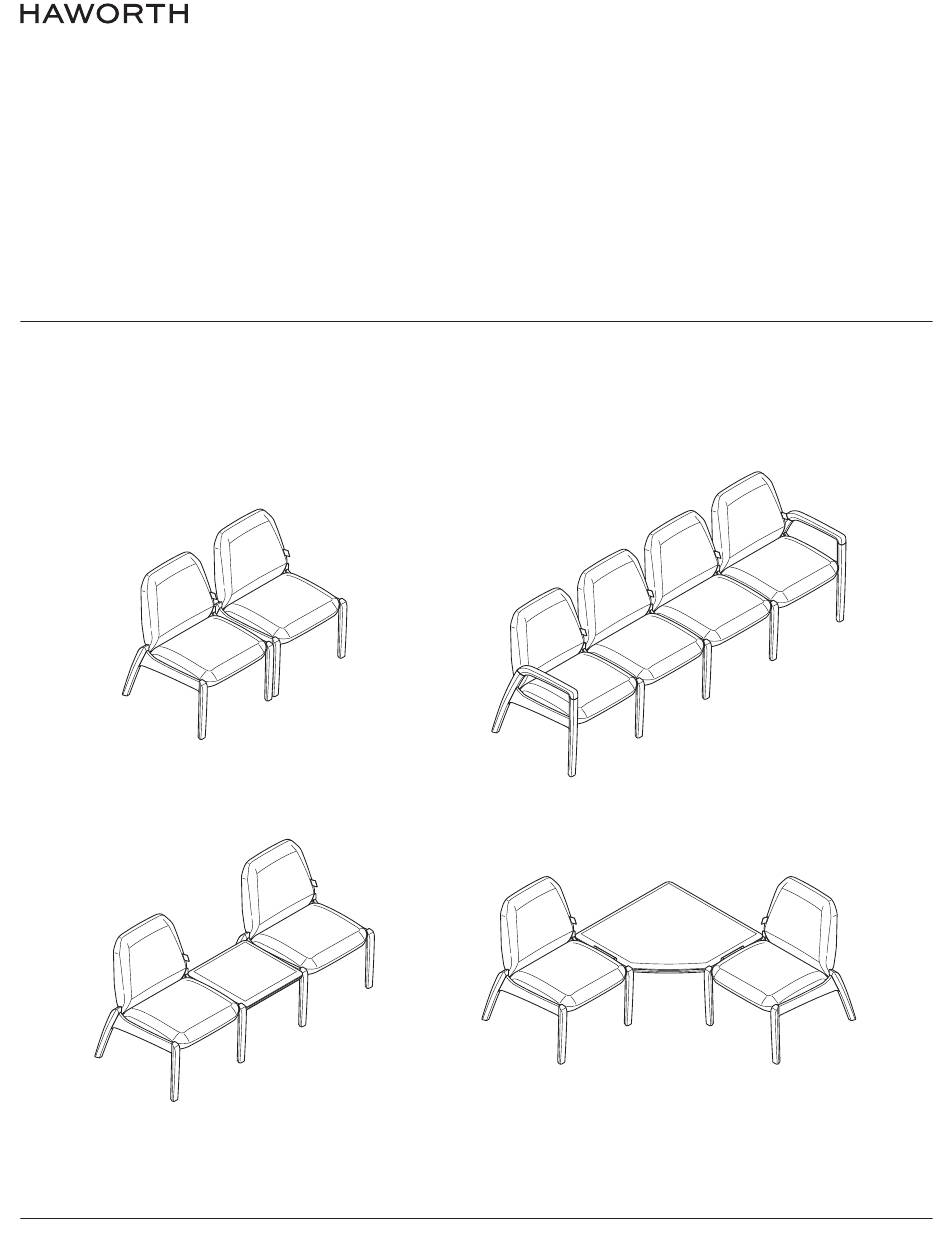

- Page 1 Atwell Assembly Instructions Ganging and Side Tables For assembly assistance, visit haworth.com, call 800 426 8562, or email support@haworth.com...
- Page 2 Atwell Assembly Instructions Tools Required 1/2" Feather Sofa Parts Ganging Bracket Bridge Table Corner Table (S52) 5/16 x 3/4” Serrated Flange Hex Bolt (S53) 5/16 x 1/2” Serrated Flange Hex Bolt Customer Service: 800 426 8562 E.C.O. No 525-001 Part No 6100-0038...
- Page 3 Atwell Assembly Instructions Ganging Bracket (S52) 5/16 x 3/4” Serrated Flange Hex Bolt Bridge Table Customer Service: 800 426 8562 E.C.O. No 525-001 Part No 6100-0038 Rev 1 Page of 5...
- Page 4 Atwell Assembly Instructions Corner Table (S52) 5/16 x 3/4” Serrated Flange Hex Bolt Customer Service: 800 426 8562 E.C.O. No 525-001 Part No 6100-0038 Rev 1 Page of 5...
- Page 5 Atwell Assembly Instructions Tandem (S56) 5/16 x 1-1/2" Hex Head Bolt (S54) 5/16-18 Lock Nut (C57) 5/16" Flat Washer IMPORTANT TANDEM SEATING WILL ALWAYS HAVE ARMS INSTALLED ON EACH END Customer Service: 800 426 8562 E.C.O. No 525-001 Part No 6100-0038...
