Bill of Materials

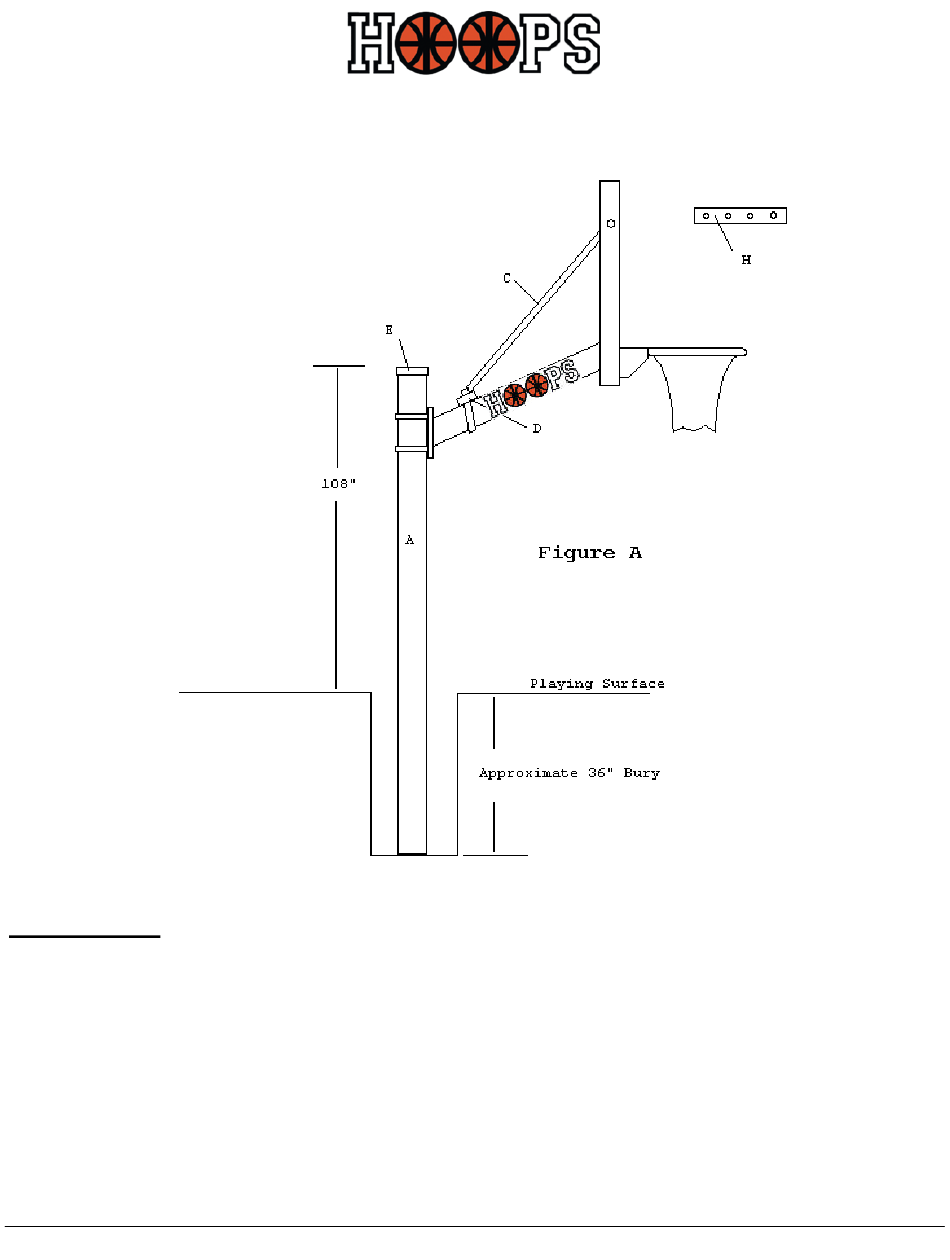

A (1) Vertical Post
B (1) Extension Arm
C (2) Backboard Brace
D (1) Clamp Bar
E (1) 4" Post Cap
F (2) 4" U-Bolt
G (1) 2" U-Bolt
H (1) Backboard Frame Support
I (4) ½" Lock washer
www.HoopsDallas.com 866-944-6677
Hoops Pro Dunk® Original
Assembly Instructions
J (4) ½" Hex Nut
K (2) 3/8" Flat washer
L (2) 3/8" Lock washer
M (2) 3/8" Hex Nut
N (2) 5/16" x 1" Machine Screw
O (2) 5/16" Flat washer
P (2) 5/16" Lock washer
Q (2) 5/16" Hex Nut
Page 1
Advertisement
Table of Contents
Related Manuals for Hoops Pro Dunk Original Select
Summary of Contents for Hoops Pro Dunk Original Select
- Page 1 Hoops Pro Dunk® Original Assembly Instructions Bill of Materials A (1) Vertical Post J (4) ½" Hex Nut B (1) Extension Arm K (2) 3/8" Flat washer C (2) Backboard Brace L (2) 3/8" Lock washer D (1) Clamp Bar M (2) 3/8"...
- Page 2 Hoops Pro Dunk® Original Select & Premium Assembly Instructions NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to Hoops customer service at 1-866-944-6677. Instructions 1. Locate and dig a 12" minimum diameter x 36" deep hole.
