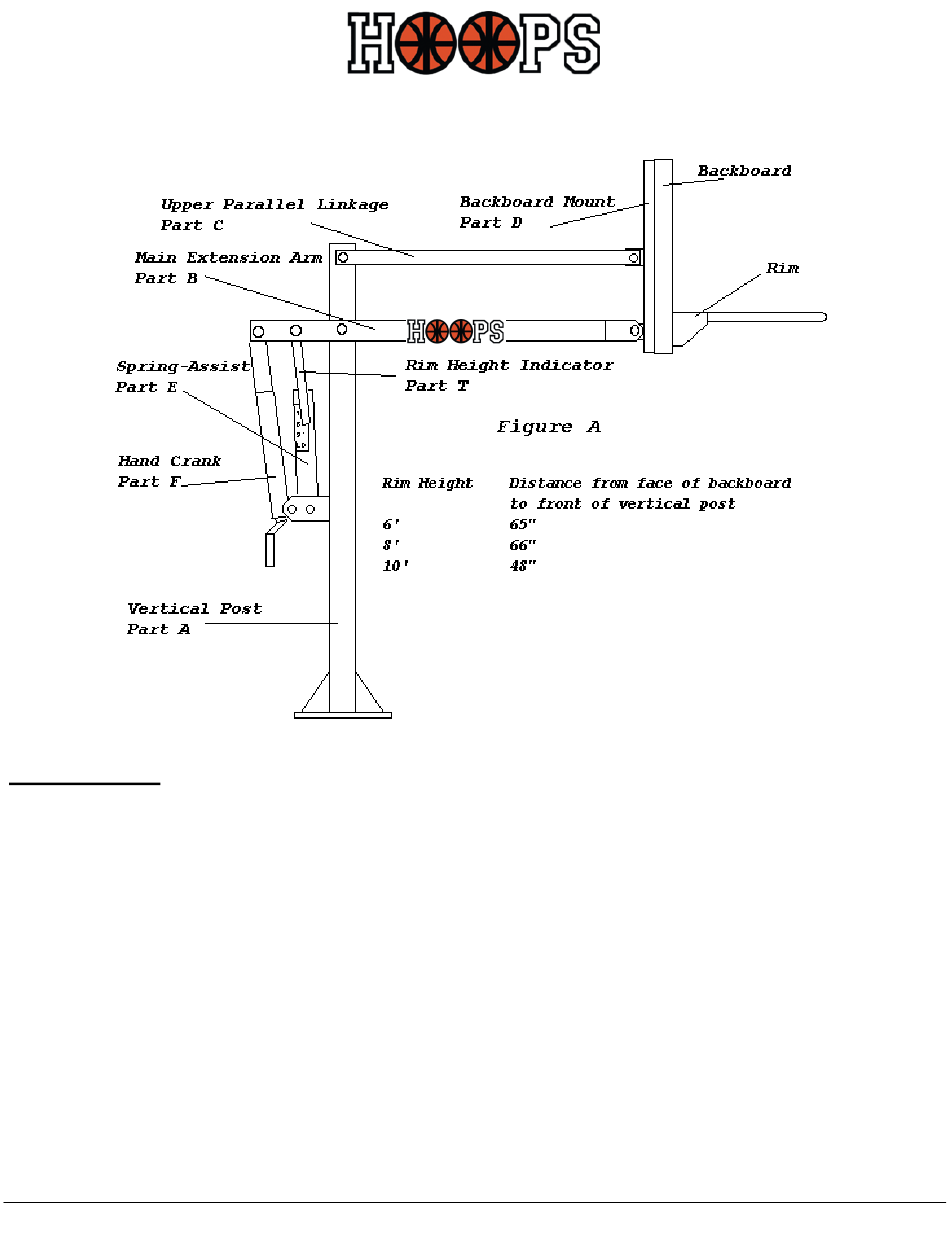

Bill of Materials
A(1) Vertical Post
B(1) Main Extension Arm
C(2) Parallel Linkage
D(1) H-Frame Backboard Mount
E(1) Spring-Assist Cartridge
F(1) Crank Adjustment Cylinder
G(2) ½" x 4 ½" Hex Bolt
H(5) ½" x 10" Hex Bolt
I(1) ½" x 11" Hex Bolt
J(8) ½" Locknut
NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to Hoops
customer service at 1-866-944-6677.
www.HoopsDallas.com 866-944-6677
Hoops Pro Dunk® 5x3 Elite Assembly Instructions
K(4) 5/8" Anchor Bolt
L(12) 5/8" Hex Nut
M(1) Anchor Footing Template
N(4) Anchor Footing Rebar
O(8) 5/16" x 1" Machine Screw
P(8) 5/16" Flat Washer
Q(8) 5/16" Lock washer
R(8) 5/16" Hex Nut
S(1) Rim Height Sticker
T(1) Rim Height Indicator
Page 1
Advertisement
Related Manuals for Hoops Pro Dunk Elite
Summary of Contents for Hoops Pro Dunk Elite
- Page 1 I(1) ½" x 11" Hex Bolt S(1) Rim Height Sticker J(8) ½" Locknut T(1) Rim Height Indicator NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to Hoops customer service at 1-866-944-6677. www.HoopsDallas.com 866-944-6677 Page 1...
- Page 2 If grommets are missing and cannot be located, DO NOT proceed with assembly, call Hoops immediately. If your backboard is acrylic you must remove and discard the plastic shipping block from the backboard joint to complete this step.
- Page 3 Hoops Pro Dunk® Elite Premium Assembly Instructions Next, attach the upper H-Frame pivot tube to the upper parallel linkages using (1) ½" x 10" hex bolt (H) and (1) ½" locknut (J). 16. Check face of backboard to see if it is level forward and back. If it is out of level, correct it by adjusting the 5/8" nuts located underneath the vertical post base plate.
