Bill of Materials
A (1) Vertical Post J (4) ½" Hex Nut
B (4) Extension Arm K (4) ½" x 10" Hex Bolt
C (1) I-Frame Backboard Support L (4) ½" Locknut
D (1) Extension Arm Support M (1) 3/8" Hex Nut
E (1) Insta-Just Bracket N (8) ½" Nylon Flat washer
F (1) 4" Square Post Cap
G (2) 4" U-Bolt
NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to
Hoops customer service at 1-866-944-6677.
www.HoopsDallas.com 866-944-6677
Hoops Pro Dunk® Adjustable
Assembly Instructions
H (1) Lift Spring
I (4) ½" Lock washer
J (4) ½" Hex Nut
K (4) ½" x 10" Hex Bolt
L (4) ½" Locknut
M (8) ½" Nylon Flat washer
Page 1
Advertisement
Related Manuals for Hoops Pro Dunk Adjustable Select
Summary of Contents for Hoops Pro Dunk Adjustable Select
- Page 1 F (1) 4" Square Post Cap M (8) ½" Nylon Flat washer G (2) 4" U-Bolt NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to Hoops customer service at 1-866-944-6677. www.HoopsDallas.com 866-944-6677 Page 1...

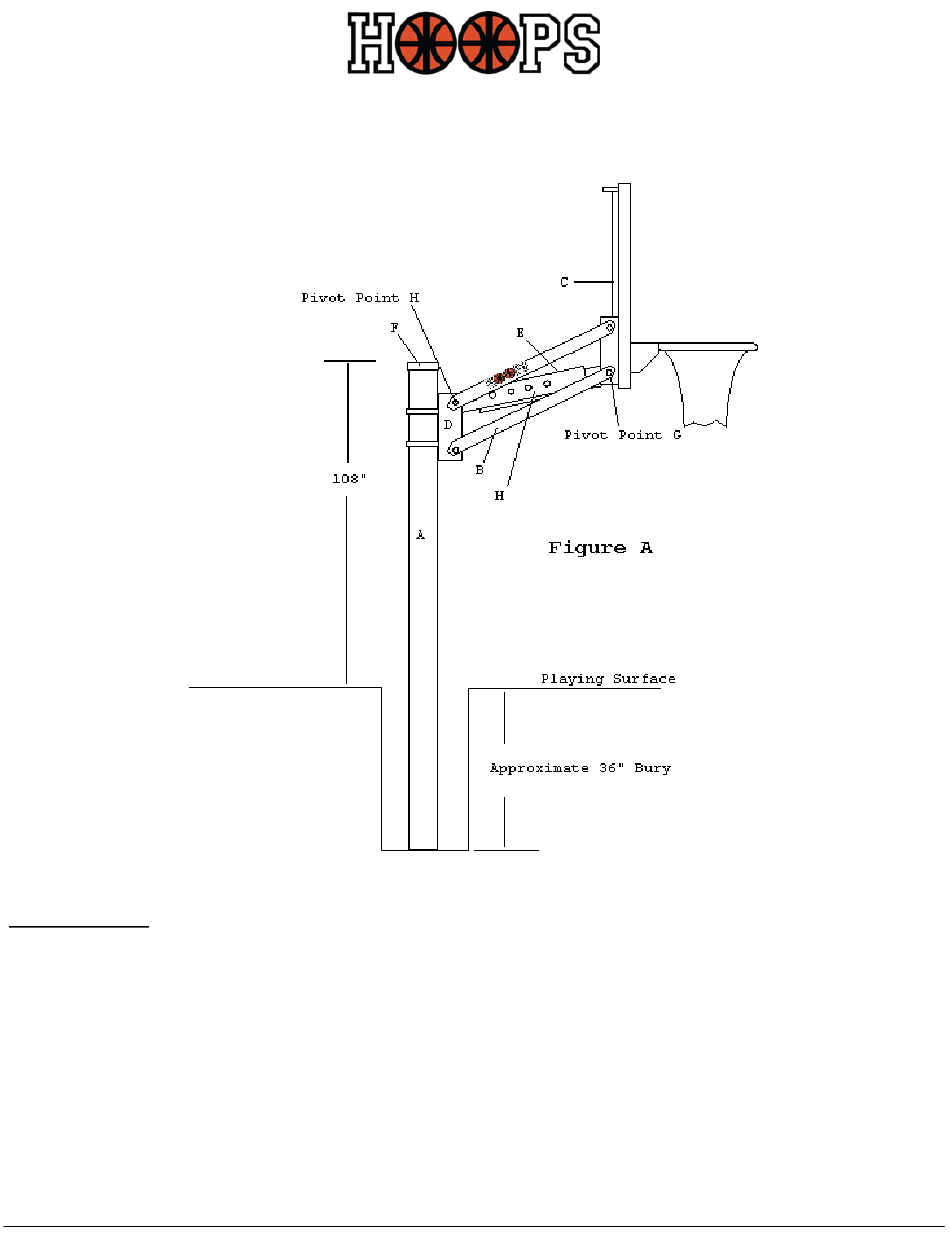

- Page 2 Hoops Pro Dunk® Adjustable Select & Premium Assembly Instructions Instructions 1. Locate and dig a 12" minimum diameter x 36" deep hole. 2. Fill hole with wet premixed concrete, insert vertical pole leaving exactly 108" above desired playing surface. Vibrate to settle concrete.
- Page 3 Hoops Pro Dunk® Adjustable Select & Premium Assembly Instructions With the unit adjusted all the way up, attach one lift spring from pivot point G to pivot point H. If you purchased a Champ III or Champ Select package you should have received 2 lift springs, attach one on either side of the Insta-Just bracket.
