Hoops Pro Dunk Arena Ultimate Assembly Instructions

THIS BASKETBALL SYSTEM IS SPRING LOADED AND SHIPPED UNDER TENSION.

ATTEMPTING TO ASSEMBLE OR DISASSEMBLE ANY PORTION OF THIS UNIT WITHOUT

FIRST READING ENTIRE INSTRUCTION SHEET MAY RESULT IN SEVERE INJURY OR DEATH!

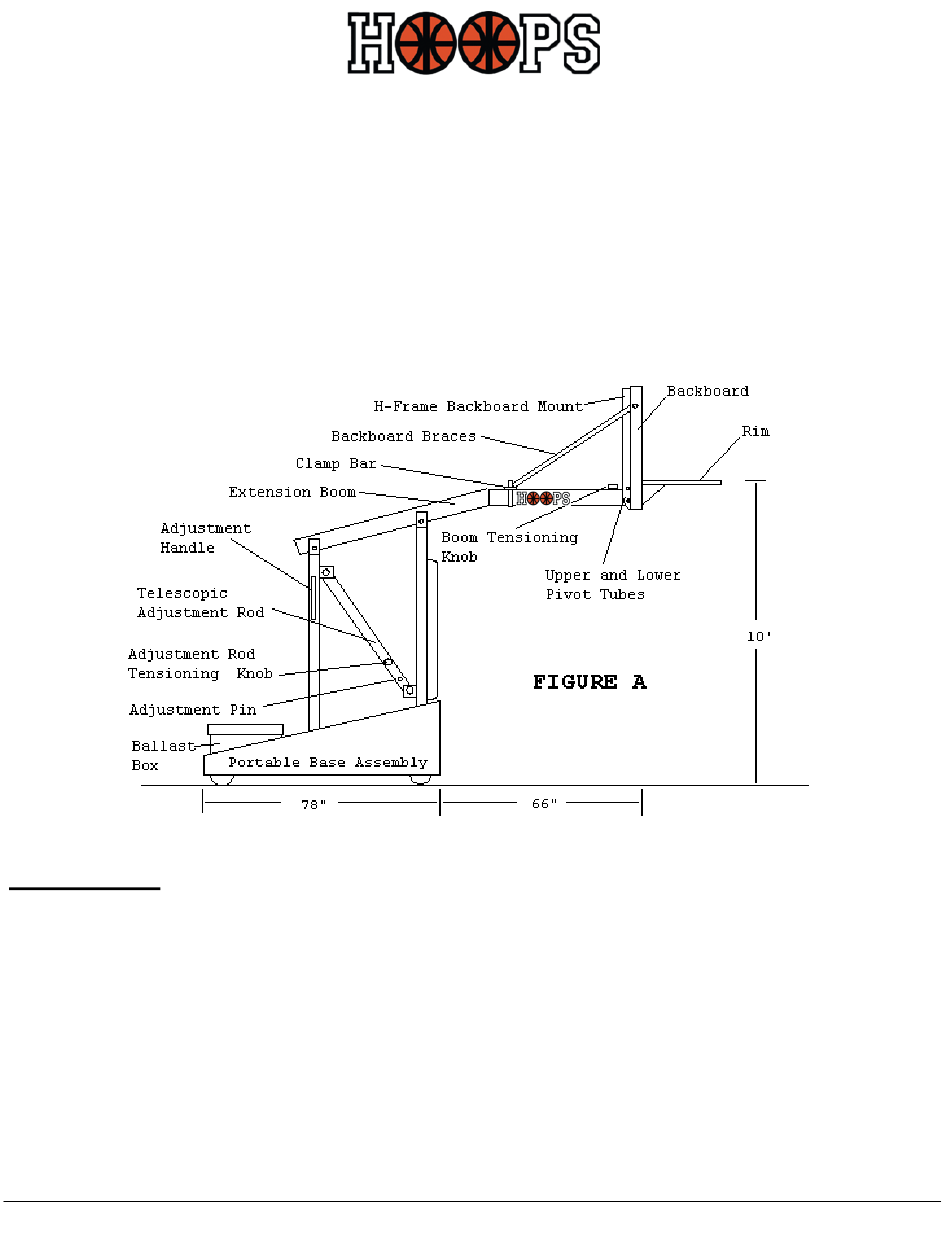

WARNING: DO NOT REMOVE ADJUSTMENT PIN (SEE FIGURE A) UNTIL BACKBOARD AND

Bill of Materials

A (1) Portable Base Assembly

B (1) H-Frame Backboard Mount

C (2) Backboard Brace

D (1) Clamp Bar

E (1) 4" U-Bolt

F (1) ½"x 9" Hex Bolt

G (1) ½"x 8" Hex Bolt

NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to

Hoops customer service at 1-866-944-6677. (4) ½"x 1 ½" hex bolts, (4) ½" flat washers, (4) ½" lock washers and

(4) ½" hex nuts are located in your H-Frame backboard mount.

www.HoopsDallas.com 866-944-6677

Hoops Pro Dunk® Arena Ultimate

Assembly Instructions

WARNING! WARNING! WARNING!

RIM HAS BEEN ATTACHED TO THE UNIT!

H (3) ½" Flat washer

I (4) ½" Lock washer

J (4) ½" Hex Nut

K (10) 5/16" Machine Screw

L (10) 5/16" Flat washer

M (10) 5/16" Lock washer

N (10) 5/16" Hex Nut

O (1) Leverage Tool

P (1) Eccentric

Q (1) Set of Base Padding

R (1) Adjustment Rod Knob

S (1) Boom Tensioning Knob

Page 1

Table of Contents

Do you have a question about the Pro Dunk Arena Ultimate and is the answer not in the manual?

Page 1 NOTE: Immediately unpack all components and cross check against bill of materials. Report any shortages to Hoops customer service at 1-866-944-6677. (4) ½"x 1 ½" hex bolts, (4) ½" flat washers, (4) ½" lock washers and (4) ½" hex nuts are located in your H-Frame backboard mount.
Page 2 (tempered glass or acrylic). Check to make sure all four steel grommets are located at the rim holes, if any are missing look in the box (if grommets are missing and cannot be located do not proceed with assembly, call Hoops immediately).
Page 3 If you do not know what your backboard composition is, weigh your backboard and use the weights provided to identify your backboard. If the chart does not agree with the number of springs pre-loaded onto your unit DO NOT PROCEED WITH ASSEMBLY, CALL HOOPS IMMEDIATELY! Backboard Size & Composition No.
Page 4 Hoops Pro Dunk® Arena Ultimate Assembly Instructions Mount safety padding to the front and sides of the unit using the velcro strap connectors. The sewn rectangular pad fits over the top of the ballast box like a lid. You may want to raise the unit for this step. Also, if you purchased backboard safety padding attach it at this time.
Page 5 Hoops Pro Dunk® Arena Ultimate Assembly Instructions www.HoopsDallas.com 866-944-6677 Page 5...
