Simpli Home REDMOND AXCRED72-GR Assembly Instructions Manual

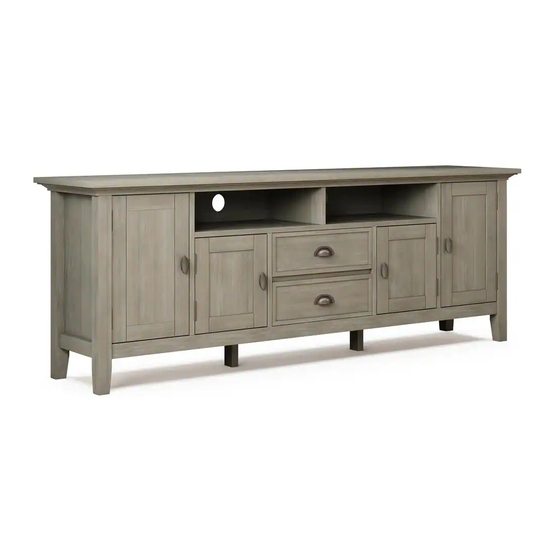

72 inch tv media stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

TM
S IMP HOME
®
TM
REDMOND / MANSFIELD / STANWICK
72 INCH TV MEDIA STAND
MODEL # AXCRED72-GR
1/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REDMOND AXCRED72-GR and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home REDMOND AXCRED72-GR

Summary of Contents for Simpli Home REDMOND AXCRED72-GR

  • Page 1 S IMP HOME ® REDMOND / MANSFIELD / STANWICK 72 INCH TV MEDIA STAND MODEL # AXCRED72-GR 1/24...
  • Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
  • Page 5 PRE-ASSEMBLY INFORMATION MODEL # AXCRED72-GR PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT LARGE DIVIDER RIGHT LARGE DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 LEFT BACK PANEL LARGE DOOR (L&R Same) CABINET SHELF QTY 1 QTY 2 QTY 2...

  • Page 6: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXCRED72-GR PART DESCRIPTION Warning Label RIGHT BACK PANEL TOP BACK PANEL BOTTOM BACK PANEL QTY 1 QTY 1 QTY 1 LEFT DRAWER SIDE DRAWER FRONT TOP SHELF QTY 1 QTY 1 QTY 1 RIGHT DRAWER SIDE DRAWER BOTTOM DRAWER BACK QTY 1...
  • Page 7 PRE-ASSEMBLY INFORMATION MODEL # AXCRED72-GR PART DESCRIPTION FLIP DOWN DOOR MIDDLE SHELF SMALL DIVIDER QTY 1 QTY 1 QTY 1 SMALL DOOR (L&R Same) LEFT MIDDLE DIVIDER RIGHT MIDDLE DIVIDER QTY 2 QTY 1 QTY 1 SUPPORT LEG QTY 2 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.

  • Page 8: Hardware Description

    PRE-ASSEMBLY INFORMATION MODEL # AXCRED72-GR HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SHELF SUPPORT M6 X 30mm QTY 52 QTY 1 QTY 12 PHILLIPS SCREW PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M3 X 15mm M3 X 12mm M4 X 15mm QTY 20 QTY 31 QTY 24...
  • Page 9 PRE-ASSEMBLY INFORMATION MODEL # AXCRED72-GR HARDWARE DESCRIPTION PHILLIPS SCREW HANDLE PHILLIPS SCREW M4 X 30mm M3.5 X 12mm M4 X 10mm QTY 8 QTY 2 SETS QTY 12 Required - Flathead screwdriver HINGE Phillips screwdriver QTY 2 SETS Not Included NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
  • Page 10 COMPONENTS-KEY DIAGRAM MODEL # AXCRED72-GR 10/24...
  • Page 11 ASSEMBLY MODEL # AXCRED72-GR STEP-1 1. Attach four Cam Lock Pins 9 to back of Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides JL , JR . 3. Insert two Cam Locks 9 into pre-drilled holes on each Drawer Side JL , JR . 4.
  • Page 12 ASSEMBLY MODEL # AXCRED72-GR STEP-3 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot. 2. Attach Drawer Back K using two Allen Key Screws 1 through pre-drilled holes on each Side JL , JR . 3.
  • Page 13 ASSEMBLY MODEL # AXCRED72-GR STEP-5 1. Attach Middle Dividers QL , QR to Middle Shelf N using six Allen Key Screws 1 (three screws on each Middle Divider). 2. Use Allen Key 2 to tighten. Do not over-tighten. STEP-6 1. Attach six Cam Lock Pins 9 to underneath of Top Shelf H . 2.
  • Page 14 ASSEMBLY MODEL # AXCRED72-GR STEP-7 1. Attach Large Dividers DL , DR to Top Shelf H using six Allen Key Screws 1 (three screws on each Divider). 2. Use Allen Key 2 to tighten Screws. Do not over-tighten. 14/24...
  • Page 15 ASSEMBLY MODEL # AXCRED72-GR STEP-8 1. Attach Bottom Shelf C to Middle Dividers QL , QR and Large Dividers DL ,DR using twelve Allen Key Screws 1 (three screws on each Divider). 2. Attach Small Divider O to Top Shelf H using three Allen Key Screws 1 3.
  • Page 16 ASSEMBLY MODEL # AXCRED72-GR STEP-9 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Sides AL , AR to Bottom Shelf C using six Allen Key Screws 1 (three Screws on each Side). 2. Use Allen Key 2 to tighten Screws. Do not over-tighten. 3.
  • Page 17 ASSEMBLY MODEL # AXCRED72-GR STEP-10 1. Attach Top B to Sides AL , AR , Small Divider O and Large Dividers DL , DR using fifteen Allen Key Screws 1 (three screws on each Side, Divider). 2. Use Allen Key 2 to tighten. Do not over-tighten. STEP-11 NOTE: The screwdriver is not included in the hardware pack.
  • Page 18 ASSEMBLY MODEL # AXCRED72-GR STEP-12 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Flip Down Door M to Middle Shelf N using two Hinges 13 and twelve Phillips Screws 12 . 2. Attach Magnet Plates 7 to top corner of Middle Divider QL , QR using Phillips Screws 5 into guide holes on Middle Divider QL , QR .
  • Page 19 ASSEMBLY MODEL # AXCRED72-GR STEP-13 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Large Doors E to Sides AL , AR using Phillips Screws 4 into guide holes. 2. Attach hinges on Small Doors P to Large Dividers DL , DR using Phillips Screws 4 into guide holes.
  • Page 20 ASSEMBLY MODEL # AXCRED72-GR STEP-14 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnets Plates 7 to bottom corner of Large Doors E and Small Doors P . using Phillips Screws 5 into guide holes on Large Doors E and Small Doors P .
  • Page 21 ASSEMBLY MODEL # AXCRED72-GR STEP-15 1. Use four Shelf Supports 3 for each Cabinet Shelf F in desired location. 2. Two Shelf Supports 3 may be used on back top of each Cabinet Shelf F as a tipping restraint. 3. Insert assembled drawer into glides on assembled TV Media Stand. 21/24...
  • Page 22 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-16 NOTE: The screwdriver is not included in the hardware pack.
  • Page 23 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.

  • Page 24: Warranty

    S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.

This manual is also suitable for:

Mansfield axcred72-grStanwick axcred72-gr
