15. MPC2000+ Installation

15.1. Casing

The MPC2000+ is supplied in a totally metal enclosed case suitable for flush mounting on the front of the motor
starter cubicle.

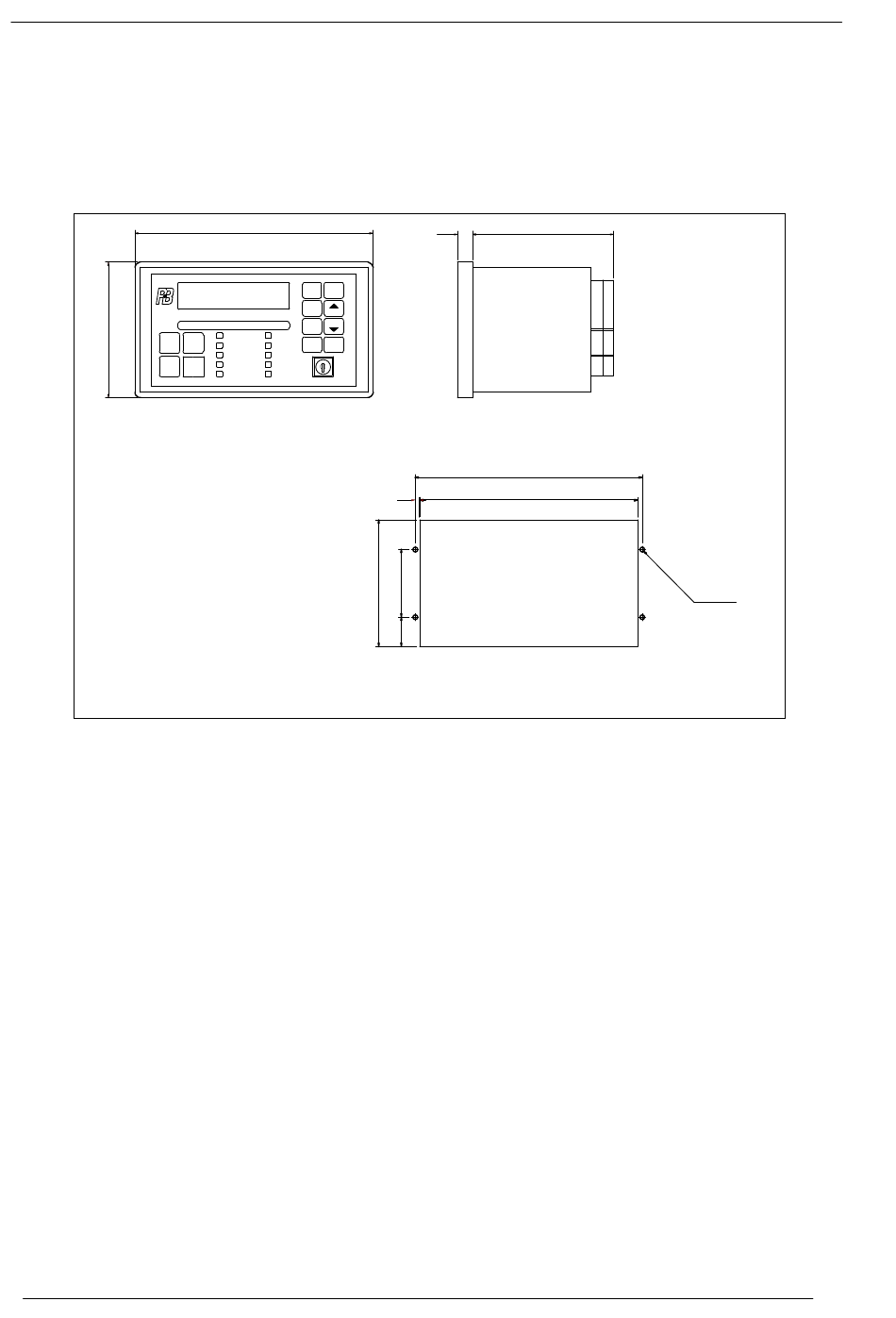

The following dimensional drawing for the MPC2000+ shows the standard flush mounted unit.
211.5
13.5
125.0
119.5
4.0
202.00
194.00
112.0 60
26
4 Holes 4.2 D
Cut Out Details
Page 36
ISSUE 7 28/9/99
