- Page 1 MPC2000D Motor Protection Controller P&B Engineering Belle Vue Works Boundary Street Manchester M12 5NG Tel: 0161 230 6363 Fax: 0161 230 6464 E-mail mail@pbeng.co.uk Issue 2 22/4/98...
-
Page 2: Table Of Contents
Contents CONTENTS ...................................1 1. INTRODUCTION ..............................1 2. SUMMARY OF MPC2000D FEATURES ......................2 2.1 C ..............................2 ONTROL UNCTIONS 2.2 P ............................2 ROTECTIVE UNCTIONS 2.3 D ...............................2 ISPLAYED 2.4 F ...................................3 EATURES 3. TECHNICAL SPECIFICATION..........................4 3.1 T ..............................4 ECHNICAL 3.1.1 A .............................4... - Page 3 11.2. MPC2000D E PC S ......................31 NGINEERING OFTWARE 12. MPC2000D FLASH/CONSTANT MESSAGES....................31 13. MPC2000D INTERNAL TEST ROUTINES ...................... 32 14. MPC2000D FAULT FINDING ..........................33 15. MPC2000D THERMAL OVERLOAD PROTECTION..................34 16. MPC2000D INSTALLATION ..........................38 16.1 C .................................. 38 ASING 16.2 MPC2000D T...
-
Page 4: Contents
RS485 communication facilities provided by the MPC2000D. The MPC2000D replaces the larger MPC2000. The relay has all the same functions of the old MPC2000 but is now smaller and is available in a drawout case. For further information on the draw out case see sections 16.1 and 16.2. -
Page 5: Summary Of Mpc2000D Features
2. Summary of MPC2000D Features 2.1 Control Functions Full Control of: Direct on Line Motor Starters Direct on line Reversing Motor Starters Direct on Line 2 Speed Motor Starters Star/Delta Motor Starters Undervoltage Dip Restart Facility Motor Starts Limitation Circuit Breakers 2.2 Protective Functions... -
Page 6: Features
All functions operate fully independently of communications Non Volatile Memory for all setting parameters calculated, statistical and fault data Full self diagnostics and internal watchdog facility RS485 port enables full control and monitoring by remote DCS/PLC systems MPC2000D Issue 2 22/4/98 Page 3... -
Page 7: Technical Specification
Without VT Transformer Range: 90 - 660V AC Accuracy: +/- 1.0% of Full Scale With VT Transformer Range: 90 - 660V x (VT Primary/VT Secondary) Limited to 25kV Accuracy: +/- 1.0% of Full Scale Page 4 Issue 2 22/4/98 MPC2000D... -
Page 8: Thermistor/Rtd Inputs
+/- 0.5 seconds or +/- 2% of time Exceptions High Set Over-current: -0.1 to +0.2 sec. up to 1 second Earth Fault Trip: -0.1 to +0.2 sec. for less than 1 second delayTotal Run Time Accuracy: +/- 2% MPC2000D Issue 2 22/4/98 Page 5... -
Page 9: Relay Contacts
Accuracy: +/- 20% 4. MPC2000D Schematic Diagrams The following diagrams show typical installation schematic diagrams of the MPC2000D unit when used for both Protection and Control and when used as a Protection Only device. The following points should be noted:... - Page 10 MPC2000D WIRING DIAGRAM ALTERNATIVE RESIDUAL FAULT CONNECTION STOP B STOP B DIP SWITCH 1 ON = TEST FACILITY AVAILABLE STOP A STOP A MAIN CONTACTOR OFF = EXTERNAL FAULT 3 22 23 24 25 26 27 CONTROL VOLTAGE EXTERNAL FAULT 2...
- Page 11 MPC2000D PROTECTION ONLY WIRING DIAGRAM ALTERNATIVE RESIDUAL EARTH FAULT CONNECTION FOR INDICATION PURPOSES AUX. SUPPLY 22 23 24 25 26 27 THERMISTOR PT100 OVERLOAD TRIP E/F TRIP (0.1K-30K) (100-240 OHMS) CASE SWAMPING RESISTOR INTERNAL POWER SUPPLY AUX 1 RELAY [ALARM]...
-
Page 12: Mpc2000D Measured Inputs
MCC busbars to provide an Undervoltage Dip Restart facility. When enabled in the System Settings page the MPC2000D monitors the supply and in the event of a failure will maintain the start signal to the motor for upto 200 msec, beyond 200 msec the unit will trip the motor and should the Power supply be restored within 4 seconds the unit will restart the motor after a time delay set in the Undervoltage Settings page. -
Page 13: Power
MPC2000D and the should always be isolated prior to working on the wiring at the rear of the unit. - Page 14 Local/Remote (74,73) This contact allows control of the MPC2000D to be switched between local control ( via Start A and Start B Input Terminals (68,67-66,65)) or remote control either via the direct wired PLC inputs or via the RS485 serial link . It is also only possible to reset the MPC2000D after a fault from the front panel without authorisation if the MPC2000D is in the Local control mode.
- Page 15 Emergency Stop (31,32) This input allows the MPC2000D to monitor the status and provide indication of the state of any of the external Emergency Stop buttons which are normally directly wired to the contactor closing circuit. Opening of the input causes a trip or alarm depending on the Tripping/Alarms Settings.
-
Page 16: Mpc2000D Faceplate Functions

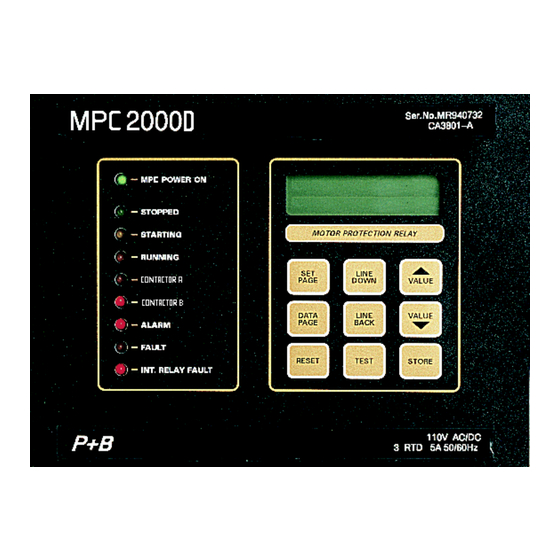

7. MPC2000D Faceplate Functions The MPC2000D Faceplate has been designed to provide all of the required information to the operator for the drive for which the unit is being used. This is achieved by using a LED Status Panel and a Functional Keypad with a LCD display. -
Page 17: Mpc Functional Keypad & Display
FAULT This red LED illuminates when one or more of the MPC2000D Fault functions has operated and stopped the motor. It remains lit until the condition no longer exists and a reset has been performed. Note it is not possible to reset a Fault whilst a Start signal is maintained. - Page 18 If the STORE key is pressed whilst the display shows a Data parameter then the parameter currently being displayed will be set as the default display which the MPC2000D will always revert to if no key is pressed for 5 minutes and provided a flash or constant message is not being displayed.
-
Page 19: Mpc2000D Setting And Data
Serial Link No. This setting range 1-33 with a default setting of 33, identifies the MPC2000D unit to the XCELL unit to which the RS485 Data Highway is connected, and is also required to be set if the MPCSET software is to be used . -
Page 20: System Settings
This setting, range 'Not Connected ' or 95V-660V in steps of 5v, with a default setting of 'Not Connected', allows for systems with voltages above 660V , where the voltage reference to the MPC2000D must be via a voltage transformer and the VT secondary voltage is set with this function. - Page 21 'Trip' determines the use of the Aux 2 relay. Aux.2 Delay This setting range 0-120s in steps of 1s, with a default setting of 0, allows the user to set a time delay on the operation of the Aux.2 relay. Page 18 Issue 2 22/4/98 MPC2000D...
-
Page 22: Voltage Settings
Protection Only Mode This setting range Yes or No with a default setting of 'No', enables the MPC2000D to function either as a motor protector and controller, or as a motor protection relay only. If the Protection Only parameter is set to 'Yes' the... -
Page 23: Current Settings
Number of Starts The number of starts the motor will make can be limited by the MPC2000D from anywhere between the range of 1 to 10 in steps of 1, with a default setting of 10. - Page 24 Time This setting specifies the time the MPC2000D will take to trip at 6 times FLC and determine the basic thermal characteristic. This time range 0.5 and 120 seconds, with a default setting of 10 seconds. For further information refer...
- Page 25 = The unbalance in %. However the minimum trip time is 1 second and the minimum pick up is the same as the setting “unbalance Current” above. 15 % 20 % To = 60 To = 30 Page 22 Issue 2 22/4/98 MPC2000D...
-
Page 26: Temperature Settings
Channel 1 Trip. In these circumstances the trip that occurs depends on the external circuit and cabling used. When the change is not quick enough for the MPC2000D to register an Open Circuit a Channel 1 Trip is registered first instead. -
Page 27: Tripping/Alarm Options
Channel 1 Trip. In these circumstances the trip that occurs depends on the external circuit and cabling used. When the change is not quick enough for the MPC2000D to register an Short Circuit a Channel 1 Trip is registered first instead. - Page 28 E=Enabled D=Disabled. T=Trip A=Alarm AR=Auto-Reset PR=Panel Reset R=Remote Reset The above options are provided individually for all of the following MPC2000D protective and control functions: Function Maximum Start Time Too Many Starts Undercurrent Pre-Alarm Undercurrent Trip Load Increase Alarm Low Set Overcurrent...
-
Page 29: Mpc2000D Data Display
9.7. MPC2000D Data Display Pages The following menus can be displayed by the Data Page Key: Measured Data Calculated Data Logical Inputs/Contact Status Statistical Data Fault Data Each data page provides the following displayed information: Measured Data Phase and Line Voltages (+/- 1.0%) -
Page 30: Mpc2000D Setting Pages Summary
9.8. MPC2000D Setting Pages Summary The following pages show a summary all of the MPC2000D Setting and Data pages and give the setting range and the factory default setting for all settings. Following on is a detailed explanation of each setting page and each individual setting. - Page 31 50-99% t6x Time 0.5-120 Sec 10 Sec Hot/Cold Ratio 20-100% Cool Time Factor 1-15 Stall Time Factor 20-100% Overload reset Method Auto,Hand Hand Unbalance Current 10-40% Current Unbalance Maximum Time 20-120 Sec 30 Sec Page 28 Issue 2 22/4/98 MPC2000D...
- Page 32 Earth Fault Pre-Alarm Earth Fault Trip Serial Port Failure Internal Relay Failure Emergency Stop Control Circuit Open Welded Contactor External Fault 2 External Fault 3 E=Enabled D=Disabled, T=Trip, A=Alarm, AR=Auto-Reset, PR=Panel Reset, R=Remote Reset MPC2000D Issue 2 22/4/98 Page 29...
-
Page 33: Mpc2000D Data Pages Summary
9.9. MPC2000D Data Pages Summary MEASURED DATA VP1, VP2, VP3 Volts VL1, VL2, VL3 Volts I1, I2, I3 Amps Total Real Power Watts E/F Current Amps Total VA Power R1, R2, R3 Ohms Power Factor CALCULATED DATA Motor Load Thermal Capacity... -
Page 34: Mpc2000D Communications
11.1 MPCSET Software All of the MPC2000D setting parameters mentioned above can be viewed and changed through the use of the MPCSET Software offered by P & B Engineering. It is designed to configure large numbers of units quickly as well as storing and printing the MPC2000D setting parameters. -
Page 35: Mpc2000D Internal Test Routines
This message is displayed constantly after the MPC2000D has recognised a Hard Wired Stop, this is defined as a motor stop which is not the result of an MPC2000D command or the Emergency Stop Indication input.. The message remains displayed until the reset button pressed. -
Page 36: Mpc2000D Fault Finding
14. MPC2000D Fault Finding This procedure details some of the more common faults which may cause the MPC2000D to not operate as required. This is usually due to incorrect settings or logic and will hopefully assist to rectify the situation. -
Page 37: Mpc2000D Thermal Overload Protection
For example if the Hot/Cold ratio setting is 60% and the motor has been running at normal FLC for some time the amount of thermal capacity available is 60% then the amount displayed by the MPC2000D is the amount used which is 100 - 60 = 40%. - Page 38 MPC2000D. If a motor speed switch is installed and connected to the MPC2000D it is then possible to decrease the thermal trip time in the range of 20-100% of the set hot & cold curve operating times when the motor stops rotating, i.e. stalled.
- Page 39 Example Application As an example of applying the MPC2000D Thermal Overload protection to a motor let us establish the settings for a particular motor having the following characteristics: Rating: 100Kw System Volts 415 Volts FLC: 180 Amps CT ratio 200/5 Amps...
- Page 40 P & B Engineering on request. Further help on the application of thermal overload protection by ringing P & B Engineering at Manchester on 0161 230 6363. MPC2000D Issue 2 22/4/98 Page 37...
-
Page 41: Mpc2000D Installation
16. MPC2000D Installation 16.1 Casing The MPC2000D is supplied in a UK manufactured industry standard drawout case for flush mounting on the front of the motor starter or circuit breaker cubicles. 4 HOLES 4.3mm DIAMETER PANEL CUT OUT FLUSH MOUNTING FIXING DETAILS... -
Page 42: Mpc2000D Terminations
16.2 MPC2000D Terminations All terminations to the MPC2000D are situated to the rear of the unit, and are suitable for use with standard crimped connectors. The rear terminal block accepts both pre-insulated screw and push-on blade type connectors. Each terminal has 1 screw type and 2 blade type connectors. -
Page 43: Fast Scan Analogue Data
Accuracy of Power for small motors is noted. (Section 5.6.) Fast Scan Update Time Added. (Section 9.1.) This manual is applicable to relays with software version 17/4/98. All information is subject to change without notice. Page 40 Issue 2 22/4/98 MPC2000D... -
Page 44: Starting Methods
19. Starting Methods. The MPC2000D can control motors in a variety of different ways. The MPC2000D can also control circuit breakers. This section details the different ways of controlling a motor and the new variables that need setting on the MPC2000D.
