Built-In (BI) Series
Built-In (BI) Series
Side to Side and In and Out Adjustment Procedure:
IMPORTANT NOTE: Side to side and in and out
adjustments only affect the top of the door. The bottom
hinge is stationary, except for up and down adjust-
ments.
1. Slightly loosen the two upper cabinet hinge mount-
ing bolts using a 1/2" wrench
2. For side to side adjustments, use a 3/8" open-end
wrench to turn the bolt mounted left to right in the
top hinge assembly in the appropriate direction
Figure 2-13).
3. For in and out adjustments, use a 5/32" allen
wrench to turn the bolt mounted front to back in the
top hinge assembly in the appropriate direction
Figure 2-13).

MOUNTING BOLTS

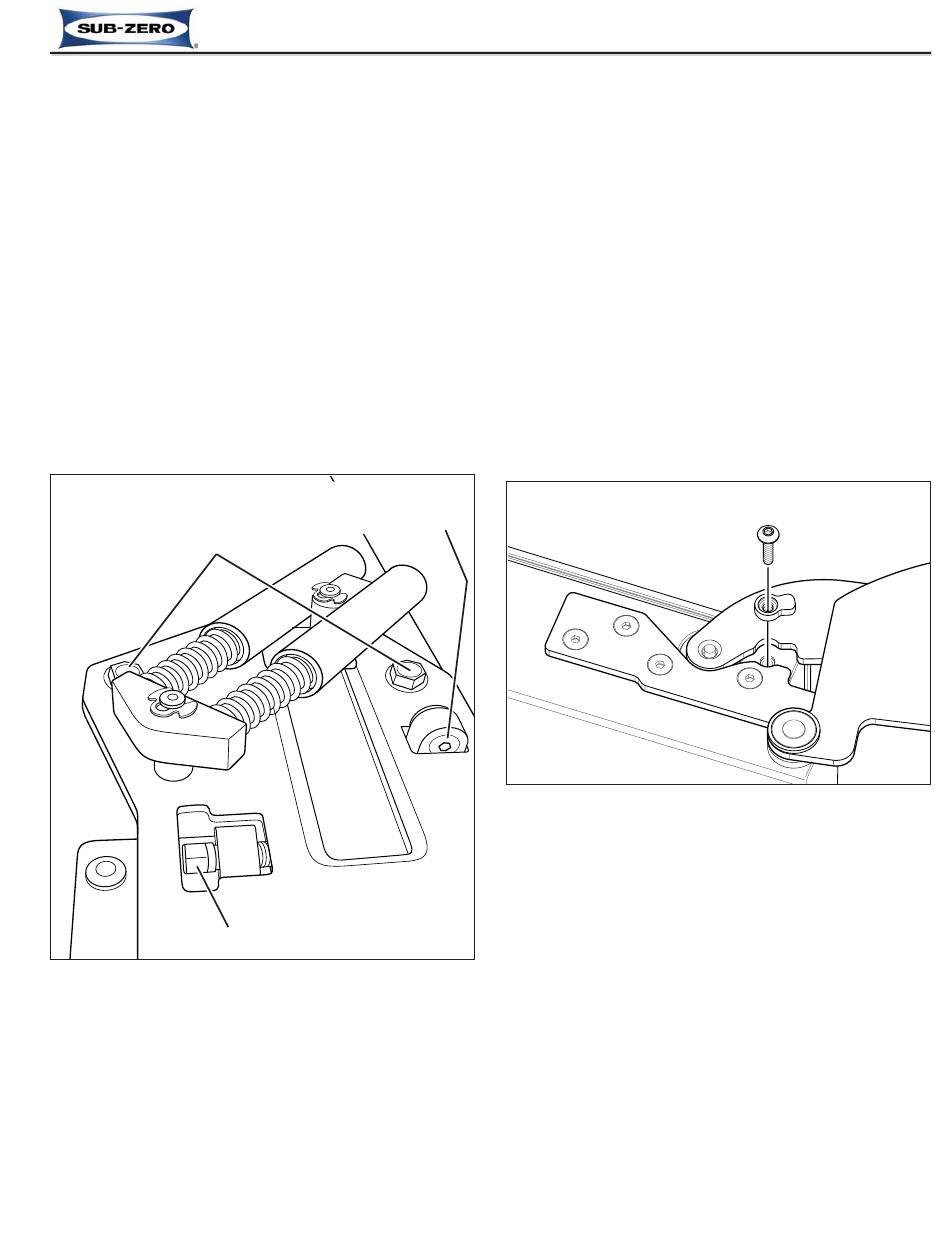

Figure 2-13. Door Adjustment,
Left to Right and In and Out
(See Figure 2-13).
IN AND OUT
ADJUSTMET BOLT
LEFT TO RIGHT
ADJUSTMET BOLT
90-Degree Door Stop
The doors on all Built-in Series units open to 110-
degrees. An optional 90-degree door stop kit is sup-
plied with the unit, and is also available through a Sub-
Zero dealer or distributor.
The 90-degree door stop will be installed in the top
hinge of the door.
Door Stop Installation Procedure:
1. Open door to approximately 90 degrees.
(See
2. At top of door, insert door stop cam down
between door hinge and door closer arm as
shown in
(See
3. Insert screw through door stop and into door as
shown in
Figure 2-14. 90 Degree Door Stop
2-11
Installation Information
Figure 2-14.
Figure 2-14.
#7005333 - Revision C - September, 2010
