Drawer Handle / Handle-Side Trim Removal Procedure:
1. At the back right-hand side of the drawer handle or handle-side trim, insert a flat blade screwdriver into the notch
in the screw cover and pry the cover away form the handle or handle-side trim, disengaging the screw cover
from the clips (See Figures 2-17A
2. With a T-20, 6-lobe Torx type bit, extract the handle or handle-side trim mounting screws and pull the handle or
trim from the drawer

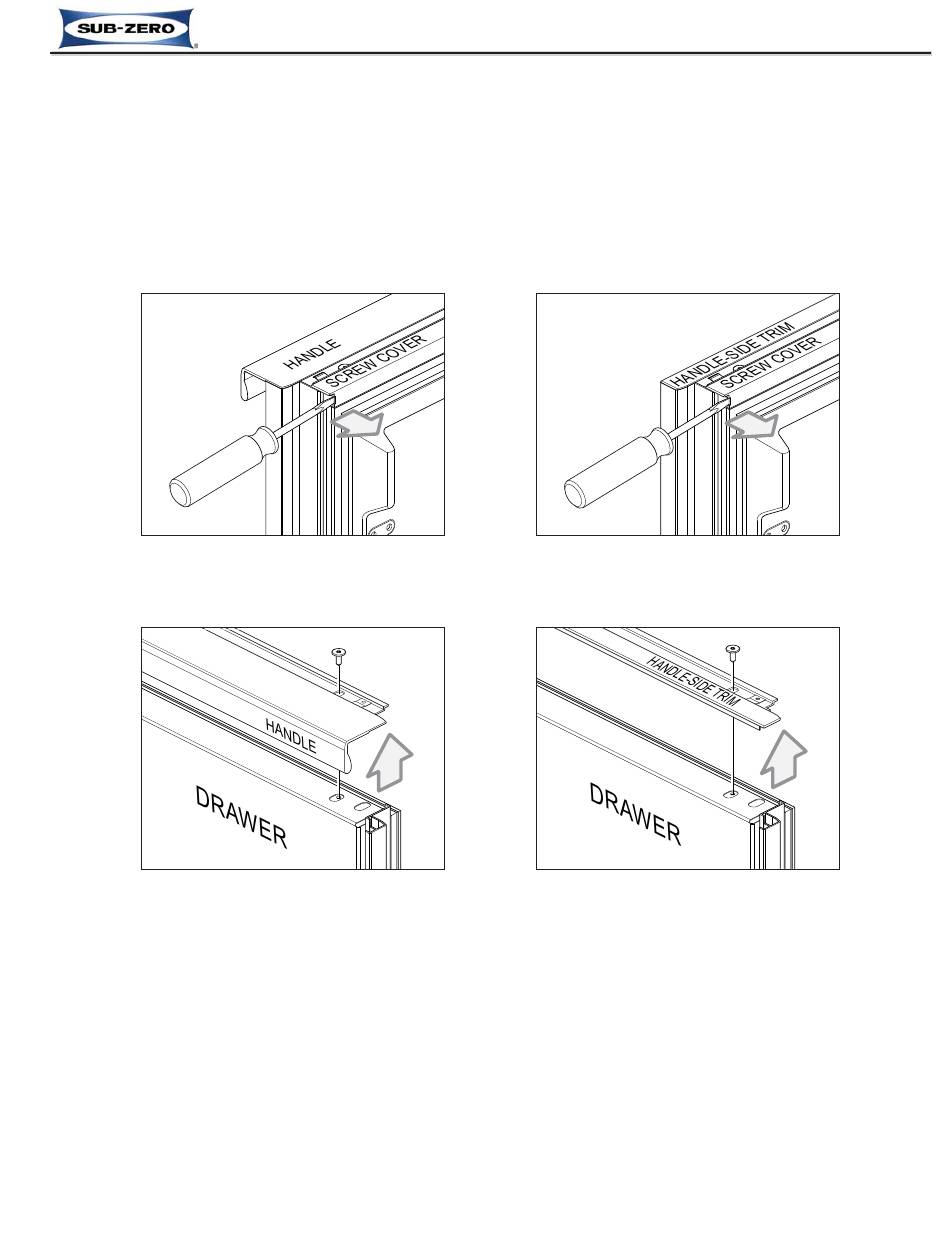

Figure 2-17A. Screw Cover Removal
Figure 2-18A. Handle Removal
and 2-17B).
(See Figures 2-18A and 2-18B).
with Handle
Figure 2-17B. Screw Cover Removal
with Handle-Side Trim
Figure 2-18B. Handle-Side Trim
Removal
