Built-In (BI) Series
Built-In (BI) Series
Monitor Compressor Run Duration, Displays If Service is Needed
The microprocessor observes the changing state of the compressor relays on the control board to determine the
length of compressor run time (See Figure 3-50). Other than during initial pull down, if a compressor runs 100%
(Freezer = 6 hours / Refrigerator = 4 hours), five consecutive times, a fault code is logged, defrost is initiated, and
the service icon will flash. If approximately twenty-four (24) hours worth of 100% run periods occur, and the com-
partment temperature does not fall to at least the average of the set point and low off-set temperature (and the door
is not opened during the last run period), then the service icon will flash and the alarm will chime (See Figure 3-51).
NOTES:
• If the unit is ever switched OFF then back ON, compressors will not energize for at least three (3) minutes. This
minimum OFF time is used to protect the compressor and its electricals.
• To clear error indicators and Fault Codes the problem must be corrected, then press the ALARM key for fifteen
(15) seconds. Failure to clear Fault Codes will result in the highest priority error indicator reappearing in the LCD
when the unit is
switched back ON.
Power to compressors
monitored; fault code
logged if 100% run
observed and service
icon appears; if sever-
al 100% runs occur,
service icon flashes
and alarm chimes
LIGHTS
ICE MAKER
MAX ICE
Figure 3-51. the Service Icon Flashing & Alarm Chiming = Service Needed Immediately
HIGH VOLTAGE
L1
BLACK
WATER FILTER SW
N.O.
P14
P1
P15
P2
9
P3
P16
1
MAIN
CONTROL
BOARD
P5
P6
6
P7
P18
1
P8
P9

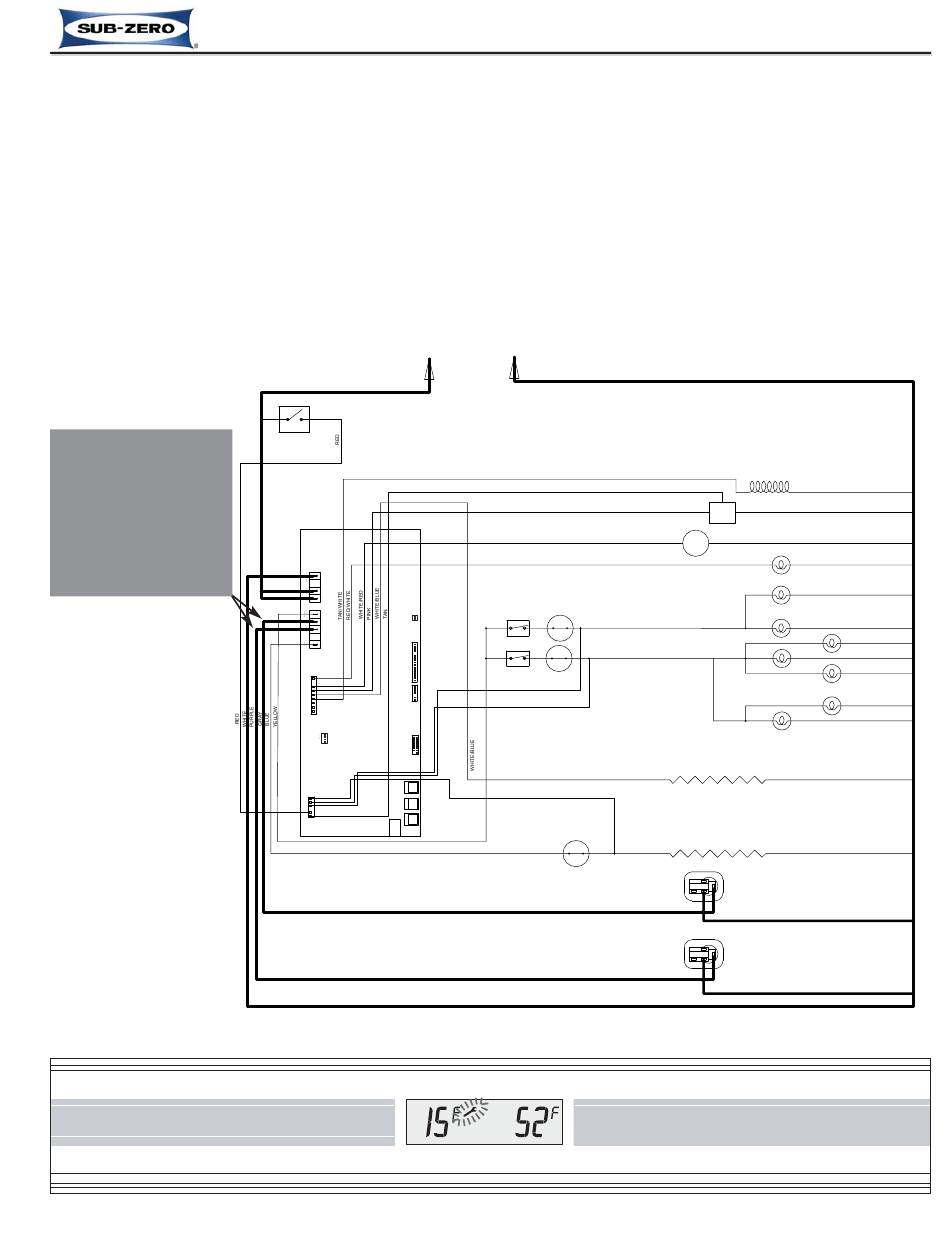

Figure 3-50. Signal Trace Schematic: Monitoring Compressor Run Times
COLDER
WARMER

Electronic Control System

115 VOLTS
NEUTRAL
60 CYCLES
FREEZER LIGHT
TERMINATOR
N.C.
YELLOW
YELLOW
FZ DOOR SWITCH
N.C.
YELLOW
BROWN
REF DOOR SWITCH
REFRIGERATOR
LIGHT
TERMINATOR
ORANGE/BLACK
ORANGE
WHITE/BLUE
GRAY/WHITE
BLUE
DEFROST
TERMINATOR
COLDER
3-31
WHITE
TAN/WHITE
WATER VALVE
TAN
160 Ω
PINK
IM
CONDENSER FAN MOTOR
WHITE/RED
M
RED/WHITE
AIR FILTER LIGHT
FREEZER LIGHTS
ORANGE/BLACK
ORANGE
REFRIGERATOR LIGHTS
DRAWER LIGHTS
FILL-TUBE HEATER
2300-2900 Ω
DEF HEATER
27.9-30.9 Ω
REFRIGERATOR
COMPRESSOR
STARTING RELAY
GRAY
FREEZER COMPRESSOR
STARTING RELAY
PURPLE
WARMER
PURE AIR
ALARM
#7005333 - Revision A - January, 2008
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
POWER
