Summary of Contents for Deco Gear DGVIEW304

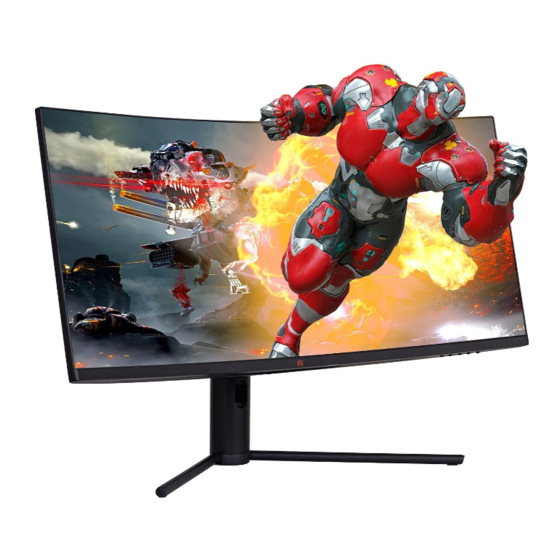

- Page 1 34 3440x1440 144Hz E-LED View this product on decogear.com MODEL: DGVIEW304...
-
Page 3: Table Of Contents
DP Connectivity ECO Modes and Gameplus Switching 12.1 13.1 Supported DisplayPort 13.2 Supported HDMI Resolution 14.1 How to choose a high refresh rate for WIN10 14.2 How to choose a high refresh rate for WIN7... - Page 5 Monitor x 1 Lifting Stand x 1 Stand Base x 1 Screws x3 Screws x 4 Power Cable x 1 (PM5*11) (for Wall Mounting) 34 3440x1440 144Hz E-LED MODEL: DGVIEW304 DP Cable x 1 User Manual x 1...
- Page 6 DP Connector : Insert one end of the DP cable into the computer’s DP output and connect the other end to the monitor’s DP port.
- Page 7 Open the package and take out the product with foam still attached. Gently place it on a desktop or table. Take out the upper polfoam and the inner package bag, lower polyfoam place on a desktop or table, keep the lower foam underneath the monitor. See picture, fasten the stand stem and base with a screw.
- Page 8 1. Open the package and take out the product with foam still attached. Gently place in on a desktop or table. Remove the extra parts and the foam covering the monitor. If the monitor is already attached to the stand. remove the stand. 2.
- Page 9 Power Cable...
-
Page 10: Dp Connectivity
DP Connectivity In order for the monitor to receive DP signals from the computer, use a DP cable to connect the monitor to the computer. - Page 11 Insert one end of the DP cable to the graphics card in your PC. Other types of connection can be used. additional cables not included. DP Connector...
- Page 12 3440x1440@60Hz HDMI1 HDMI2 3440x1440@60Hz...
-
Page 15: Eco Modes And Gameplus Switching
Part 10: ECO Modes and Gameplus Switching Press any one of the buttons to activate the navigation window. Press to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games,though they can be used for other scenarios. - Page 16 Part 11: Troubleshooting...
- Page 18 Part 12: Information 12.1 Item Detail Model Number DGVIEW304 Screen Size 34” Curvature 1500R Viewing Angle 178° (H)/178° (V) Aspect Ratio 21:9 Resolution 3440x1440p Backlight E-LED Typical Brightness Default Color Temperature 6500 Contrast Ratio 3000:1(Static); 1000000:1(Dynamic) Dot Pitch 0.07725 x 0.23175...
-
Page 19: Supported Displayport
13.1 Supported DisplayPort 3440x1440@144Hz 1152X864@75Hz 4:3 1280X720@60Hz 16:9 1720x1440@60Hz 1280X960@60Hz 4:3 1920x1080@60Hz 1280X1024@60Hz 5:4 2560x1440@60hz 1440X900@60Hz 16:10 1920x1080@144hz 1600X900@60Hz 16:9 2560x1080@120Hz 1680X1050@60Hz 16:10 1920X1080@60Hz 16:9 640x480p@59.94Hz@4:3@1:1 3840x2160p@59.94Hz/60Hz@16:9@1:1 720x480p@59.94Hz/60Hz@16:9@32:27 1280x720p@59.94Hz/60Hz@16:9@1:1 1920x1080i@59.94Hz/60Hz@16:9@1:1 1920x1080p@59.94Hz/60Hz@16:9@1:1 720x576p@50Hz@4:3@16:15 720x576p@50Hz@16:9@64:45 1280x720p@50Hz@16:9@1:1 1920x1080i@50Hz@16:9@1:1 1920x1080p@50Hz@16:9@1:1 1920x1080p@100Hz@16:9@1:1 1920x1080p@25Hz@16:9@1:1 1920x1080p@29.97Hz/30Hz@16:9@1:1 1920x1080p@119.88/120Hz@16:9@1:1 3440x1440@60Hz 3440x1440@100Hz 3440x1440@120Hz... -
Page 20: Supported Hdmi Resolution
13.2 Supported HDMI Resolution 3440x1440@50Hz 1152X864@75Hz 4:3 1280X720@60Hz 16:9 2560x1440@60hz 1280X960@60Hz 4:3 2560x1440@120hz 1280X1024@60Hz 5:4 1440X900@60Hz 16:10 1600X900@60Hz 16:9 1680X1050@60Hz 16:10 1920X1080@60Hz 16:9 640x480p@59.94Hz@4:3@1:1 3840x2160p@59.94Hz/60Hz@16:9@1:1 720x480p@59.94Hz/60Hz@16:9@32:27 1280x720p@59.94Hz/60Hz@16:9@1:1 1920x1080i@59.94Hz/60Hz@16:9@1:1 1920x1080p@59.94Hz/60Hz@16:9@1:1 720x576p@50Hz@4:3@16:15 720x576p@50Hz@16:9@64:45 1280x720p@50Hz@16:9@1:1 1920x1080i@50Hz@16:9@1:1 1920x1080p@50Hz@16:9@1:1 3840x2160p@59.94Hz/60Hz@16:9@1:1 1920x1080p@25Hz@16:9@1:1 1920x1080p@29.97Hz/30Hz@16:9@1:1 1920x1080p@119.88/120Hz@16:9@1:1 3440x1440@60Hz 3440x1440@100Hz 1720x1440@60Hz... -
Page 21: How To Choose A High Refresh Rate For Win10
14.1 How to choose a high refresh rate for WIN10 1. Right-click “Display settings” on the desktop;（Pls refer to the below picture） View Sort by Refresh Paste Paste shortcut NVIDIA Control Panel Display settings Personalize 2. Click “Advanced display settings” (Pls refer to the below picture) - Page 22 3. Click “Display adapter properties of Monitor 1” (Pls refer to the below picture) 4. Click “Monitor” (Pls refer to the below picture)
- Page 23 5. Click “Screen Refresh Rate(S)”: Options (Pls refer to the below picture) 6. Select the refresh rate which you like, Then click the “Apply” (Pls see the below picture) (ps : The highest refresh rate is depends on the monitor which support, Pls refer to the below picture)
- Page 24 7. After clicking the “Apply”, you must click “Keep changes” then the monitor switch to refresh rate which you like.(Pls refer to the below picture)
-
Page 25: How To Choose A High Refresh Rate For Win7
14.2 How to choose a high refresh rate for WIN7 1. Right-click “Screen resolution (C)” on the desktop;(Pls refer to the below picture) View Sort by Refresh Paste Paste shortcut Graphics Properties... Graphics Options SVN Checkout... TortoiseSVN Screen resolution Gadgets Personalize 2. - Page 26 3. Click “Monitor” and Choose ”Monitor Settings”, then choose any refresh rate which you like, Finally Click the “Apply”.
- Page 28 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are rademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Page 32 108.007.13451 34CHR DGVIEW304 2021-01-18 feihong 注：封二封三不要印内容，页数不够可加空白页...
