Summary of Contents for Deco Gear DGPM20

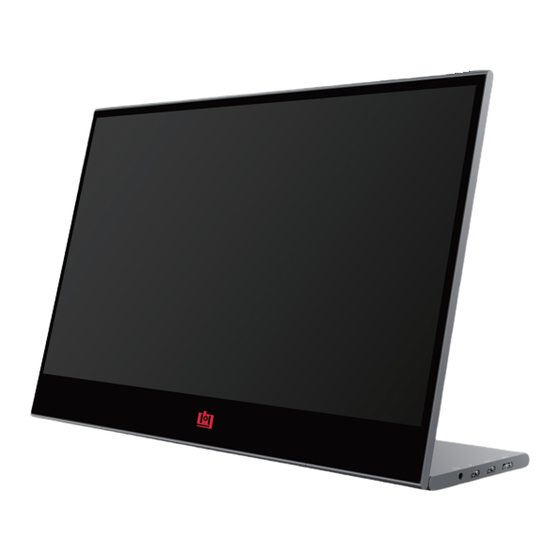

- Page 1 15.6” Touchscreen Full HD IPS LED Portable USB-C Monitor View this product on decogear.com MODEL: DGPM20...
- Page 2 DECOGEAR LCD Monitor User Manual (UM) Important safety instructions Please read the following instructions carefully. 1. To clean the LCD monitor screen: · Turn off the LCD monitor and unplug the power cord. · Spray a non-solvent cleaning sloution onto a rag and clean the screen gently.
-
Page 3: Package Contents
MINI HDMI Cable User manual 15.6” Touchscreen Full HD IPS LED Portable USB-C Monitor MODEL: DGPM20 Please make sure to use the original DECOGEAR accessories in order to preserve the quality-aspects. Adjustable base (0° ~ 180 °) 1. Take out the monitor from the packaging and place it on a stable and level workspace. -
Page 4: Connect The Monitor To Your Computer
Connect the monitor to your computer 1. Plug the adaptor of you monitor into a nearby electrical outlet. 2. Use the adaptor to connect to the monitor’s Port 2. 3. Connect Type-C Cable(Only Type-C-input model) a. Connect the Type-C Cable to the computer. 4. -
Page 5: External Controls
External controls ICON Item Description a. Press this button to select the desired item when Up/Hot Key in OSD menu. b. Long press this button to adjust the volume. Press this button to select the desired item when Down in OSD menu. Power button Long press for 3 sec to turn on/off Monitor. -
Page 6: Operation
OPERATION Powering On / Off Press and hold the power button for 3 seconds to turn the monitor ON and off. The monitor will enter power saving mode when turned on unless a suitable device is connected. Volume Up / Down Press and hold the up button to enter Volume Adjustment. - Page 7 The following content is for general reference only. The actual product specifications may vary. The on-screen display (OSD) can be used for adjusting the settings of your monitor. Press any button to open the Navigation OSD. You can use the OSD to adjust the picture quality, OSD setting, and general settings.
-
Page 8: Color Temperature Setting
Color Temperature Setting The color temperature adjustment Warm-Normal-Cool corresponds to the color temperature of 6500K, 7500K, 9300K and the User mode has a three-level menu. Audio Setting Adjust the volume manually or select Audio Mute to disable the audio. OSD Setting Langusge Setting: Set the OSD menu language. -
Page 9: Specifications
SPECIFICATIONS Audio Speaker 1W*2 Dimensions Size 362(W)x240(H)x15.6(D)mm Net Weight 1.1kg Display Brightness 470(typ) Colours 16.7M Contrast Ratio 1500:1 Native Aspect Ratio 16:9 Panel Manufacturer SHARP Panel Type Refresh Rate 60Hz Resolution FHD (1920x1080) Size 15.6" Viewing Angle 170°(H)x170°(V) Features Low Blue Light Inputs HDMI(1.4) USB Type-C... -
Page 10: Troubleshooting
TROUBLESHOOTING... -
Page 12: Supported Timing List
Supported Timing List Standard timing Resolution Refresh Rate Resolution Refresh Rate 720 x 400 70hz 1024 x 768 75hz 640 x 480 60hz 1280 x 1024 75hz 640 x 480 67hz 1152 x 870 75hz 640 x 480 72hz 1280 x 720 60hz 640 x 480 75hz... -
Page 14: Notice For Fcc
Notice for FCC This device complies with Part of 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of FCC Rules. - Page 16 15N2F DGPM20 User Manual DECOGEAR 2020.12.19 140*210mm 封面157g铜版，内页80g双胶纸 ，胶装 Pantone 3517C C:0 M:0 Y:0 K:11 梁丽...
