- Page 1 49” 3840 x 1080 144Hz E-LED Curved Gaming Monitor INSTRUCTION MANUAL DGVIEW490...
- Page 3 Precaution Before using this product, please read this User Manual carefully and keep it well Keep the monitor away from water sources or damp places, such as bath rooms, kitchens, basements and swimming pools. Make sure the monitor is placed on a flat surface. If the monitor falls down, it may cause human injury or device damage.
-
Page 4: Package Content
Cables supplied may vary with purchased products. Figures in this User Manual are for reference only. Monitor Screws Mount hexagon irons DP cable Power cable Stand 49” 3840 x 1080 144Hz E-LED Curved Gaming Monitor INSTRUCTION MANUAL DGVIEW490 Base Remote Control User Manual... -
Page 5: Installation
Installation nstallation of base 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. Lock the base and stem with three screws. Stem screws Base 3. Take out the monitor and remove the bottom foam section. - Page 6 4. Align the stand stem's bracket with the opening on the back of the monitor, and carefullyinsert bracket. The pieces should click into place. When remove the base, take off the decorative cover of the back shell and pull down the quick remove button to remove the base.
- Page 7 Installation of mount 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. 2. Remove the original screws ( ) from the opening in the back of the monitor. Follow the directions received with your mount, stand, or accessory and install the monitor on the wall or fixture as desired.
- Page 8 Adjustment of monitor Rotation angle -15°(±2.0°)- +15°(±2.0°) -5° 15° 95mm Tilting angle Height adjustment -5.0°(±2.0°)- +15°(±2.0°) 0- 95mm (±5.0mm)
-
Page 9: Description Of Buttons
Instructions for use Description of buttons Button Function Menu selection key: Enter the next menu / shortcut to the main menu Downward selection key: Move down in the menu/quickly enter the game sight Up selection key: Move up in the menu / quickly enter the light console Exit/Hotkey: Return to the previous menu / Quick access to switch color format Power switch key: Press to turn on/off... -
Page 10: Remote Control
Remote Control Press to turn the monitor on or off. Press to switch between HDMI or DP input. Press to enter the OSD menu or press to After entering the OSD settings menu, press any of the arrow buttons to move within the menu. After entering the navigation menu, press to enter the LED effects console. -
Page 11: Cable Connection
Cable connection * The bottom interface configuration at the back of the monitor varies with products. * Note: If the power cable or signal cable is damaged, you must replace it with special soft cables or special components purchased from the manufacture or maintenance department. HDMI interface Use the HDMI cable to connect the HDMI IN Use the HDMI-DVI cable (not included) to connect... -
Page 12: Menu Description
OSD menu Menu description The color and shape of the OSD menu of the actual computer may be slightly different from them shown in the figure. Specifications of the OSD menu may change with improvements of functions without prior notice. The screen display (OSD) menu can be used to adjust settings of the monitor and is shown on the screen after the monitor is powered on and the button is pressed. - Page 13 Functions of the monitor vary with models, and the functions in this manual are for reference only. HDMI1 Input Source HDMI2 HDMI3 Brightness 0-100 Brightness/ Blacklevel 0-100 Contrast Contrast 0-100 On/Off Gamma 1.8/2.0/2.2/2.4/2.6 Standard/Photo/Movie/Game/FPS/RTS/USER Picture Mode Color Temperature Warm/Cool/USER Color Setting Low Blue Light 0-100 0-100...
-
Page 14: Specification
Specification Product Name LCD Monitor Product model DGVIEW490 Screen Size 49 inch (124cm) Aspect Ratio 32:9 Viewing Angle 178°(H) / 178°(V) Pixel pitch 0.1038(H)× 0.3114(V)mm Contrast ratio 3000:1(TYP) Color 16.7M Resolution 3840 x 1080 144Hz Refresh Rate 100-240V~ 50/60Hz, 2.0A... - Page 15 Supported resolution and refrech rate HDMI1[2.0] HDMI2[1.4] Detailed Timing Detailed Timing 3840x1080@60Hz 3840x1080@60Hz 1920x1080@60Hz 1920x1080@60Hz 2560x1080@60Hz 2560x1080@60Hz 3840x1080@120Hz Entablished Timing Entablished Timing 720x400@70Hz-IBM.VGA 720x400@70Hz-IBM.VGA 640x480@60Hz-IBM.VGA 640x480@60Hz-IBM.VGA 640x480@75Hz-VESA 640x480@75Hz-VESA 800x600@60Hz-VESA 800x600@60Hz-VESA 800x600@75Hz-VESA 800x600@75Hz-VESA 1024x768@60Hz-VESA 1024x768@60Hz-VESA 1024x768@75Hz-VESA 1024x768@75Hz-VESA 1280x1024@75Hz-VESA 1280x1024@75Hz-VESA Standard Timing Standard Timing 1152x864@75Hz-VESASTD 1152x864@75Hz-VESASTD...
- Page 16 HDMI2[1.4] DP2[1.4] Detailed Timing Detailed Timing 3840x1080@60Hz 3840x1080@60Hz 1920x1080@60Hz 3840x1080@120Hz 2560x1080@60Hz 3840x1080@144Hz Entablished Timing 2560x1080@60Hz 720x400@70Hz-IBM.VGA Entablished Timing 720x400@70Hz-IBM.VGA 640x480@60Hz-IBM.VGA 640x480@75Hz-VESA 640x480@60Hz-IBM.VGA 800x600@60Hz-VESA 640x480@75Hz-VESA 800x600@60Hz-VESA 800x600@75Hz-VESA 1024x768@60Hz-VESA 800x600@75Hz-VESA 1024x768@75Hz-VESA 1024x768@60Hz-VESA 1024x768@75Hz-VESA 1280x1024@75Hz-VESA Standard Timing 1280x1024@75Hz-VESA Standard Timing 1152x864@75Hz-VESASTD 1152x864@75Hz-VESASTD 1280x720@60Hz-VESASTD 1280x960@60Hz-VESASTD 1280x720@60Hz-VESASTD 1280x1024@60Hz-VESASTD...
-
Page 17: Manufacturer's 1-Year Limited Warranty
Deco Gear 80 Carter Drive Edison, NJ 08817... - Page 20 DGVIEW490 H3C2C-HQ DECO GEAR 说明书 20211218 1 4 0 x210mm 封面封底157G铜版纸，内页80G铜版纸 彩印 骑马钉 蒋武波...
Need help?
Do you have a question about the DGVIEW490 and is the answer not in the manual?
Questions and answers

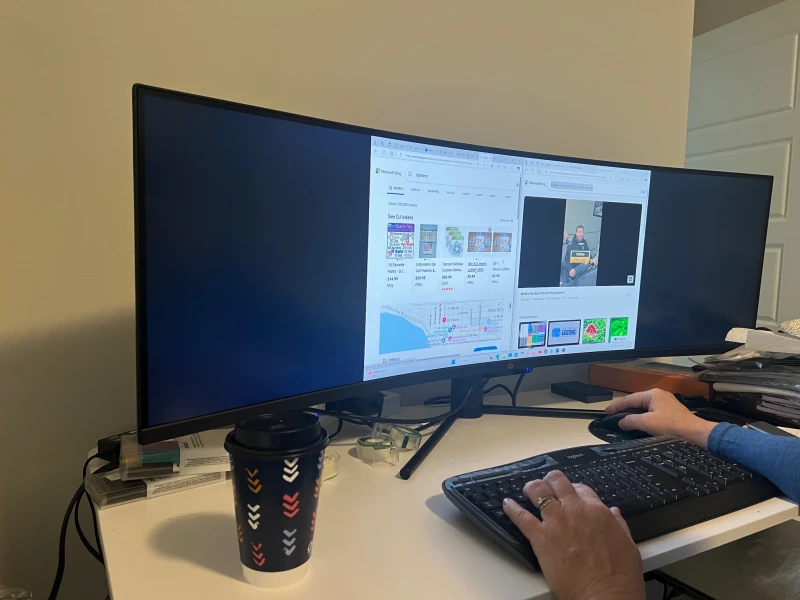

How do we display two windows screens simultaneously on this monitor, using the entire width?
To display two windows screens simultaneously on the Deco Gear DGVIEW490 monitor using the entire width, you can utilize the monitor's ultra-wide 32:9 aspect ratio and its resolution of 3840 x 1080p. You can achieve this by enabling your operating system's split-screen or multitasking feature, which allows you to place one window on the left half of the screen and another on the right half. This setup utilizes the monitor's full width to display two windows side by side.
