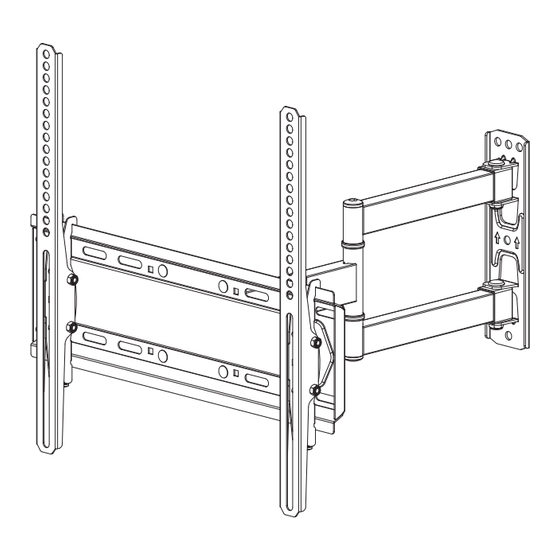

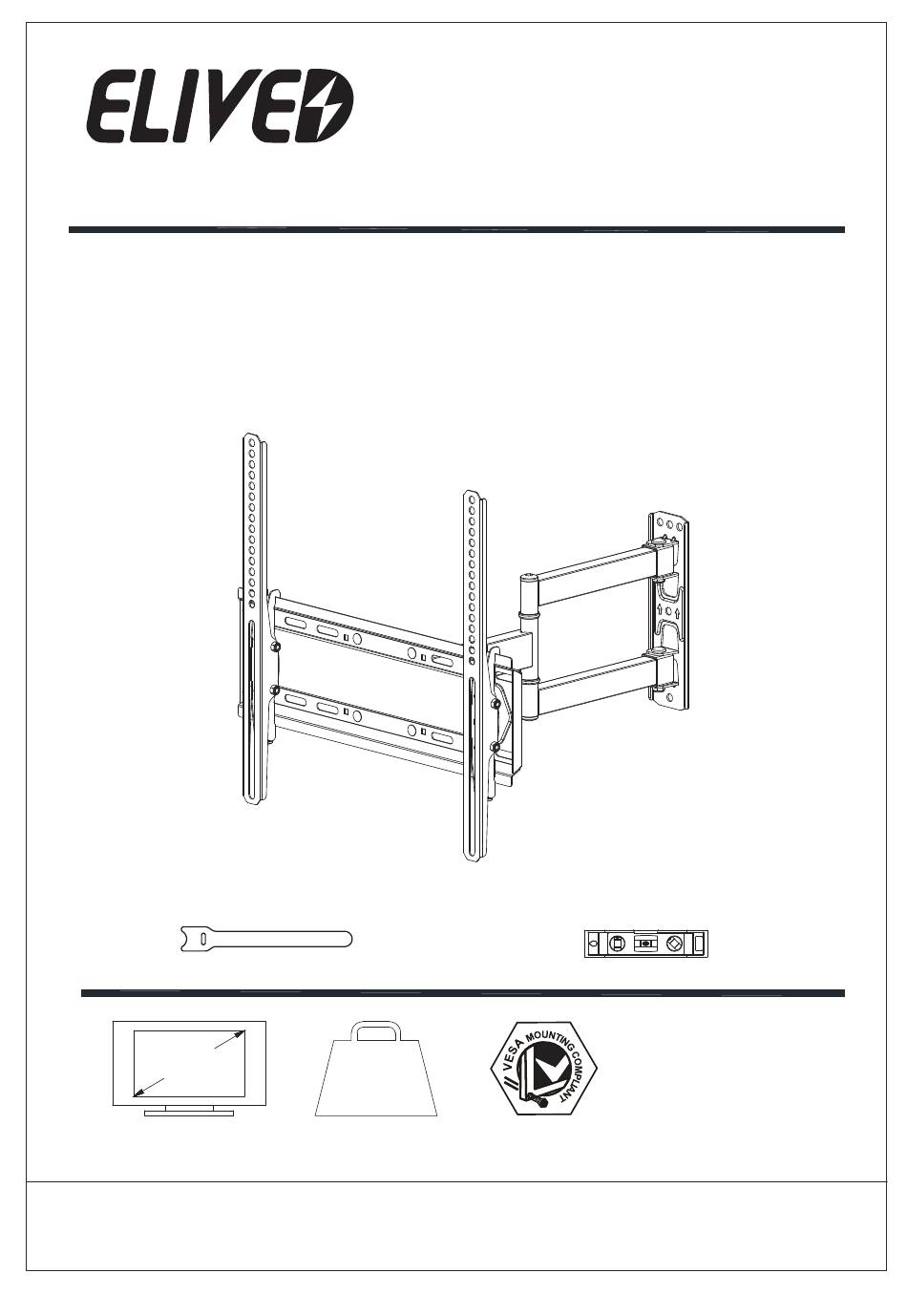

INSTALLATION INSTRUCTION
Max:
60LBS
27KG
Bubble level X1
- 1 -
Max:400x400mm/16x16"
Min:75x75mm/3x3"
(V2)

Advertisement

loading
Need help?

Need help?

Do you have a question about the EV011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elived EV011

  • Page 1 INSTALLATION INSTRUCTION EV011 Für die Installationsanweisungen auf Deutsch, siehe Seite 11~12. Pour l'instruction en français, veuillez vous reporter à la page 13~14. Para las instrucciones de la instalación en español, favor vea la página 15~16. Per le Istruzioni in italiano, vedi pagina 17~18.
  • Page 2 Safety Caution combined. ● Do not apply this product to any purpose not indicated by ELIVED. ● Incorrect installation may result in product damage or body injury. ELIVED shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
  • Page 3: Hardware Included

    Hardware Included Brackets Arm and Wall Plate Hardware WARNING: (Wall /Product) This product contains small items that could be a Washers Open end Concrete Wall Anchor Lag Bolts Ø8mm wrench choking hazard if swallowed. Before Not for drywall or 5/16 x 2½ in wood stud installation starting assembly, verify all parts (ST8 x 65mm)
  • Page 4 STEP 1-1 Select TV Screw Diameter Thread screws by hand into the threaded holes on the back of your TV to select which screw diameter fits your TV. STEP 1-2 Select TV Screw Length Too Short Too Long Correct Correct - 4 -...
  • Page 5 STEP 1-3 Attach the Bracket Position your brackets over your TV hole pattern - making sure the brackets are centered and level over the TV hole pattern. Secure the brackets using your screw/washer/spacer selection: (a) for Flat Back (b) for Round Back / Extra space CAUTION: Ensure bracket is securely fastened before moving on to the next step.
  • Page 6 STEP 2A Wall Plate Installation (Wood stud) 2A-1 Locate your studs. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge-to-edge stud finder. Position the wall plate 2A-2 your desired height and line up the holes with your stud center line.
  • Page 7 2A-4 For concrete wall installations ONLY CAUTION:Do not use in drywall or wood Install wall plate using lag bolts and washer B . Tighten the lag bolts until they are pulled firmly against the wall plate STEP 2B Wall Plate Installation (Concrete or Brick) Position the wall plate 2B-1 your desired height , level...
  • Page 8 2B-3 Concrete Wall Install wall plate using lag bolts washer and anchor (not included). Tighten the lag bolts until they are Concrete Wall pulled firmly against the wall plate STEP 3 Lift and hang TV with brackets onto wall bracket. Secure TV with brackets against the horizontal plate with the pre-assembled screws...
  • Page 9 Adjustments If necessary (Tool-free Tilting Adjustment) If TV keeps tilting down, Pull TV to desired angle then fasten tilting nuts with open end wrench. -10° +5° Tighten Loosen (Leveling) ±3° Leveling adjustment (-3°/+3°) If needed, TV can be leveled ±3 degrees via adjusting the 4 nuts with the open end wrench.
  • Page 10: Product Dimensions

    Product dimensions: 5 ° 10 ° 84mm 498mm 435mm MAX:400mm MIN:75mm -3°/+3° 435mm - 10 -...
