Elived YD1008 Installation Instruction

YD1008
INSTALLATION INSTRUCTION
Bubble level X1
14"~40" Max:
44LBS
(20KG)
If you have any questions, please contact us.
Step 1-1 Select TV screw diameter
Thread screws by hand into the threaded holes on the back of your TV to select which screw
diameter fits your TV.
M4 M6 M8
Step 1-2 Select TV screw length
When attaching brackets to the flat screen, be careful not to over tighten screws and
be sure that screws do not bottom out in the mounting holes.
Too Long
Too Short
Step 2 Mesure your TV pattern
Measure and note the width and the height
of the square or rectangle formed from the
VESA holes pattern .
75mm ≈ 3in.
100mm ≈ 4in.
150mm ≈ 6in.
200mm ≈ 8in.
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the installation, assembly
or use of this product, please contact us.
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount combined.
● Do not apply this product to any purpose not indicated by ELIVED.
● Incorrect installation may result in product damage or body injury. ELIVED shall bear no responsibility
for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
WARNING:
Before starting assembly, verify all parts are included and undamaged. For parts shortage or damage,
please contact us.
Must Check Before Getting Started
MAX:200mm/8"
MAX:
200mm/8"
Installation Tools (Not Included)
Wood Stud Installation
Max:200x200mm /8x8"
Min:75x75mm /3x3"
5/32"
(4mm)
(V4)
Stud Awl Wood
Finder Drill Bit
Step 3-1 Select monitor plate configuration
Select the configuration A , B , C, or D to use based on the measurement from step
VESA Pattern
(WxH)
75mm x 75mm
100mm x 100mm
100mm x 200mm
Correct
Correct 100mm
W
B
H
for VESA hole pattern:
100x200mm
2M 2M
3
Safety Caution
This product contains small items that could be a choking hazard if swallowed.
<16mm(5/8")
Max:
44LBS
(20KG)
Drywall with wood studs
CAUTION: DO NOT install into drywall alone.
Concrete Installation
2M
3/8"
(10mm)
Band Pencil Electrodrill Socket
Masonry Hammer Tape Wrench
Drill Bit
VESA Pattern
Configuration Configuration
(WxH)
A 150mm x 150mm C
A 200mm x 100mm D
B 200mm x 200mm C
for VESA hole pattern:
75x75mm, 100x100mm.
200mm
150mm
200mm
C
for VESA hole pattern:
for VESA hole pattern:
200x100mm
150x150mm, 200x200mm
Hardware Included

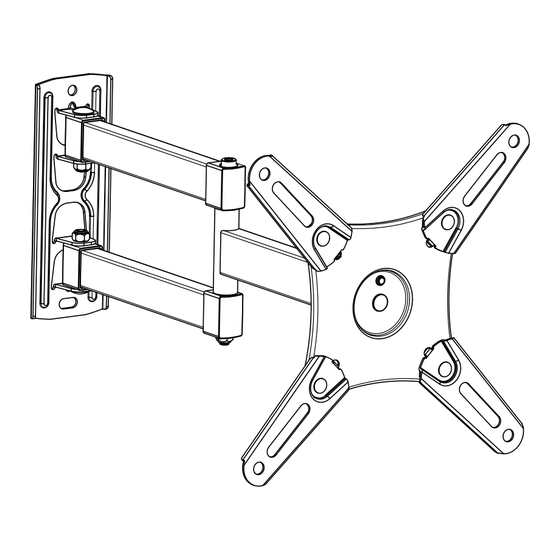

Arm and Wall Plate
01 x1
Hardware
(Wall /Product)
Lag Bolts Open-end wrench
ST6.3 x 60mm
Min. 8"
(203mm)
x2
A
Solid concrete wall
TV Screws / Washers
Philips Screws Philips Screws Philips Screws
M4 x 12mm M6 x 15mm M8 x 25mm
M4 x 30mm M6 x 30mm
1/2"
x4 x4
(13mm)
x4 x4
Screwdriver
M-A M-B
1
Step 3-2 Assemble monitor plate and extenders
2.
If your TV hole pattern is greater
100mm
than 100x100mm, attach
75mm
extenders [03] to monitor plate
03
[02]using Nut [C] and Bolt [D] .
C D
02
Step 3-3 Attach the brackets
A
(a) For Flat Back
M-C
M-A
M-B
M-B
Use the shorter
screws
M-E
Not for M8 screws
(b) For Round Back / Extra Space
M-A
D M-B
M-B
Use the
longer screws
M-E
M-D M-F
4
Monitor Plate Extenders
03 x4
02 x1
Nuts Bolts
x4 x4
x1
B C D
Spacers Washers Spacers
L10mm Ø6mm L5mm
M4-5-6
x4 x4 x4 x4
M-C M-D M-E M-F
02
B
C
03
D
No!
No!
2
5
