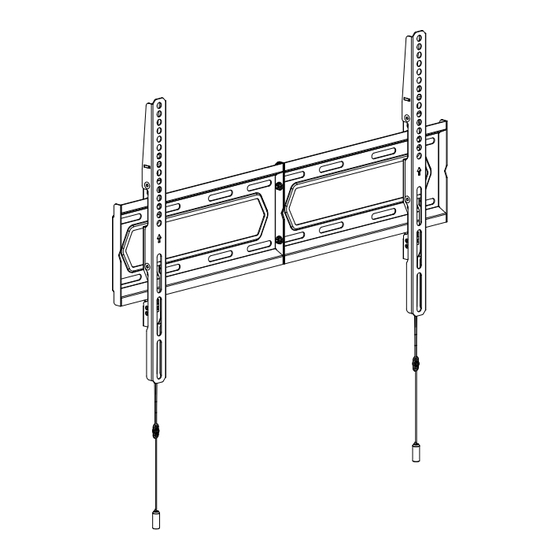

- Page 1 YD1006 INSTALLATION INSTRUCTION Velcro cable ties X5 Bubble level X1 Max:600x400mm/24x16" Max: 42"~70" 100LBS Min:75x75mm /3x3" 45.5KG (A0) If you have any questions, please contact us via help@elivedglobal.com - 1 -...
- Page 2 Safety Caution combined. ● Do not apply this product to any purpose not indicated by ELIVED. ● Incorrect installation may result in product damage or body injury. ELIVED shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
-
Page 3: Hardware Included
Hardware Included Wall Plate Bracket Allen Key Hardware Wall Plate Kit （Wall /Product) Washers Open end Wrench Bolts Nuts Lag Bolts Ø8mm M5 x 12 5/16 x 2½ in TV Screws / Washers Philips Screws Philips Screws Philips Screws Spacers Washers Spacers M4 x 12mm... -
Page 4: Attach The Brackets
Select TV Screw Length Too Short Too Long Correct Correct Attach the Brackets Position your brackets over your TV hole pattern - making sure the brackets are centered and level over the TV hole pattern. Secure the brackets using your screw/washer/spacer selection: (a) For Flat Back (b) For Round Back / Extra Space CAUTION:... - Page 5 Attach the Brackets Use the longer screws No need to use for M8 screws (b) Round Back / Extra Space STEP 2 Assemble Wall Plate Assemble the wall plates [01] together with the Bolts [D] x4 Back and Nuts [E] x4. CAUTION! Secure 2 bolts and nuts at the back of the wall plate assembly.
- Page 6 STEP 3A Wall Plate Installation (Wood Stud) 3A-1 Locate your studs. Verify and mark the center of the studs by finding the stud edges using an awl, a thin nail, or an edge-to-edge stud finder, then measure the space of the studs and record.
- Page 7 3A-4 Mount wall plate using 4 sets of 5/16” lag bolts (a) and washers B with a 1/2” socket wrench (not included). STEP 3B Wall Plate Installation (Concrete or Brick) 3B-1 Position the wall plate assembly at your desired height , level the wall plate assembly and mark the pilot hole locations.
- Page 8 Install wall plate using lag bolts , washer and anchor (not included). 3B-3 Tighten the lag bolts until they are pulled firmly against the wall plate Concrete wall anchor (NOT INCLUDED) Contact us by email help@elivedglobal.com to have these additional pieces shipped directly to you. Concrete Wall Anchor 4pcs Concrete Wall Concrete Wall...
- Page 9 STEP 5 Secure Brackets to Wall Plate Assembly Pull the strap down and push the TV to secure the TV brackets to the wall plate assembly. Squeeze and hold control to adjust cord length Attach pendant to wall plate with magnet. - 9 -...
- Page 10 OPTION: Adjust the Bolts on the Brackets to Level the TV If the TV is not level after installing, please find the bracket on the lower side and turn the bolt clockwise on the bracket to level the TV by using the Allen key 03 Horizontal line Maximum leveling adjustment 0.5”...
-
Page 11: Product Dimensions
Product Dimensions: 662.4mm / 26.08” 610mm / 24” MAX 600mm / 23.62” 457mm / 18” 401.6mm / 16” 28mm / 1.1” Post installation level adjustment - 11 -...
