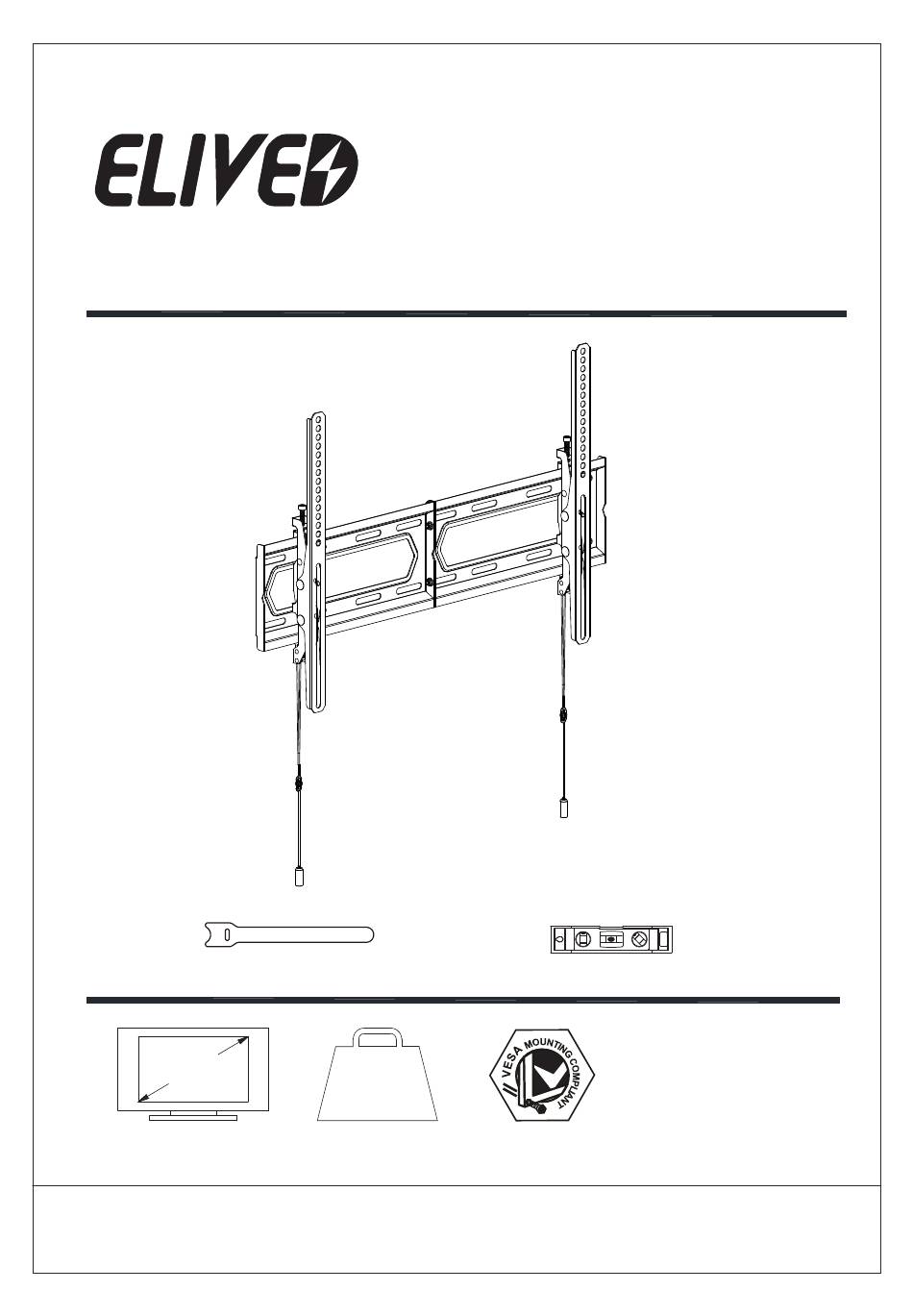

- Page 1 YD1007 INSTALLATION INSTRUCTION Velcro cable ties X5 Bubble level X1 Max:600x400mm/24x16" Max: 42"~70" 100LBS Min:75x75mm /3x3" 45.5KG (A0) If you have any questions, please contact us via help@elivedglobal.com - 1 -...
-
Page 2: Installation Tools
Safety Caution combined. ● Do not apply this product to any purpose not indicated by ELIVED. ● Incorrect installation may result in product damage or body injury. ELIVED shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse. -
Page 3: Hardware Included
Hardware Included Wall Plate Bracket Allen Key Hardware Wall Plate Kit （Wall /Product) Washers Open end Wrench Bolts Nuts Lag Bolts Ø8mm M5 x 12 5/16 x 2½ in TV Screws / Washers Philips Screws Philips Screws Philips Screws Spacers Washers Spacers M4 x 12mm... - Page 4 STEP 1 Attach Brackets to TV Select TV Screw Diameter Thread screws by hand into the threaded holes on the back of your TV to select which screw diameter fits your TV. Select TV Screw Length Too Short Too Long Correct Correct - 4 -...
-
Page 5: Attach The Brackets
Attach the Brackets Position your brackets over your TV hole pattern - making sure the brackets are centered and level over the TV hole pattern. Secure the brackets using your screw/washer/spacer selection: (a) For Flat Back (b) For Round Back / Extra Space CAUTION: Ensure bracket is securely fastened before moving on to the next step. - Page 6 STEP 2 Assemble Wall Plate Assemble the wall plates [01] together with the Bolts [D] x4 Back and Nuts [E] x4. CAUTION! Secure 2 bolts and nuts at the back of the wall plate assembly. STEP 3A Wall Plate Installation (Wood Stud) 3A-1 Locate your studs.
- Page 7 Drill Pilot Holes 3A-3 in. (70 mm) Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. 3A-4 Mount wall plate using 4 sets of 5/16” lag bolts (a) and washers B with a 1/2” socket wrench (not included).
- Page 8 STEP 3B Wall Plate Installation (Concrete or Brick) 3B-1 Position the wall plate assembly at your desired height , level the wall plate assembly and mark the pilot hole locations. 3B-2 Ø 10 mm 2.75in 70 mm Drill pilot holes Install wall plate using lag bolts , washer...
- Page 9 STEP 4 Adjust the Tilting Angle Adjust the tilting angle with the Allen Wrench Adjust the nuts STEP 5 Attach TV to Wall Plate Assembly - 9 -...
- Page 10 STEP 6 Secure Brackets to Wall Plate Assembly Pull the strap down and push the TV to secure the TV brackets to the wall plate assembly. Squeeze and hold control to adjust cord length Attach pendant to wall plate with magnet. - 10 -...
- Page 11 OPTION: Adjust the Bolts on the Brackets to Level the TV If the TV is not level after installing, please find the bracket on the lower side and turn the bolt clockwise on the bracket to level the TV by using the Allen key 03 Horizontal line Watch the level during...
-
Page 12: Product Dimensions
Product Dimensions: 662.4mm / 26.08” 610mm / 24” MAX 600mm / 23.62” 457mm / 18” 401.6mm / 16” 49mm / 1.93” Post installation level adjustment - 12 -...
