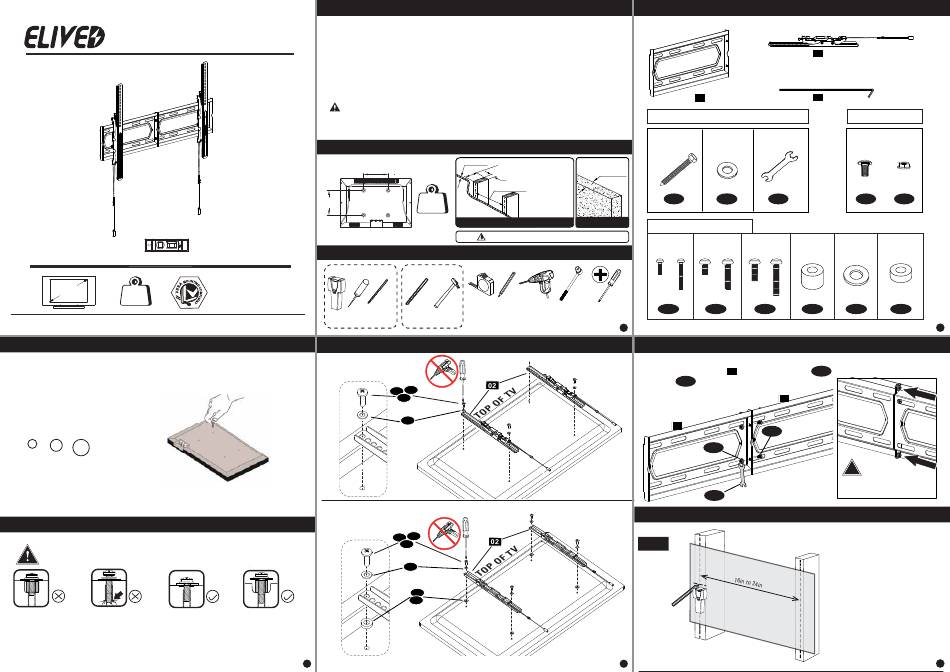

Elived YD1007 Installation Instructions

YD1007
INSTALLATION INSTRUCTION
Bubble level X1
42"~70"
Max:
100LBS
(45.5KG)
If you have any questions, please contact us.
Step 1-1 Select TV screw diameter
Thread screws by hand into the threaded holes on the back of your TV to select which screw
diameter fits your TV.
M4 M6 M8
Step 1-2 Select TV screw length
When attaching brackets to the flat screen, be careful not to over tighten screws and
be sure that screws do not bottom out in the mounting holes.
Too Short Too Long
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the installation, assembly
or use of this product, please contact us.
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount combined.
● Do not apply this product to any purpose not indicated by ELIVED.
● Incorrect installation may result in product damage or body injury. ELIVED shall bear no responsibility
for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
WARNING:
Before starting assembly, verify all parts are included and undamaged. For parts shortage or damage,
please contact us.
Must Check Before Getting Started
MAX:600mm/24"
MAX:
400mm/16"
Installation Tools (Not Included)
Wood Stud Installation
Max:600x400mm/24x16"
Min:75x75mm /3x3"
7/32"
(5.5mm)
(V2.1)
Stud Awl Wood
Finder Drill Bit
Step 1-3 Attach the bracket
(a) For Flat Back
(b) For Round Back / Extra Space
Correct Correct
3
Safety Caution
This product contains small items that could be a choking hazard if swallowed.
<16mm(5/8") Min. Wood Stud Size:
nominal 4"(102mm) actual 3 1/2"(89mm)
Min. Wood Stud Size:
nominal 2"(51mm) actual 1 1/2"(38mm)
24"(610mm)
Max:
100LBS
(45.5KG)
Drywall with wood studs
CAUTION: DO NOT install into drywall alone.
Concrete Installation
2M
3/8"
(10mm)
Band Pencil Electrodrill Socket
Masonry Hammer Tape Wrench
Drill Bit
No!
M-C
M-A
M-B
Use the shorter
screws
M-E
No need to use
for M8 screws
M-C
M-A
M-B No!
Use the longer
screws
M-E
No need to use
for M8 screws
M-D
M-F
Hardware Included
Wall Plate
x2
01
Hardware
（Wall /Product)
Washers
Lag Bolts
Ø8mm
5/16 x 2½ in
Min. 8"
(203mm)
x4
x4
A B
Solid concrete wall
TV Screws / Washers
Philips Screws Philips Screws Philips Screws
M4 x 12mm M6 x 15mm M8 x 25mm
M4 x 30mm M6 x 30mm M8 x 45mm
1/2" x4 x4
x4 x4
(13mm)
Screwdriver M-A M-B
1
Step 2 Assemble wall plate
Assemble the wall plates [01] together with the Bolts [D] x4
01
and Nuts [E] x4.
E
01
E
C
Step 3A Wall Plate installation (wood stud)
3A-1
4
Bracket
02 x2
Allen Key
03 x1
Wall Plate Kit
Open-end Wrench Bolts Nuts
M5 x 12 M5
x1 x4 x4
C D E
Spacers Washers Spacers
Ø6mm L5mm
L10mm M4-5-6
x4 x8 x4 x8
x4
M-C M-D M-E M-F
D
Back
01
D
!
CAUTION!
Secure 2 bolts and nuts at the
back of the wall plate assembly.
Locate your studs. Verify and mark
the center of the studs by finding
the stud edges using an awl, a thin
nail, or an edge-to-edge stud finder,
then measure the space of the
studs and record.
