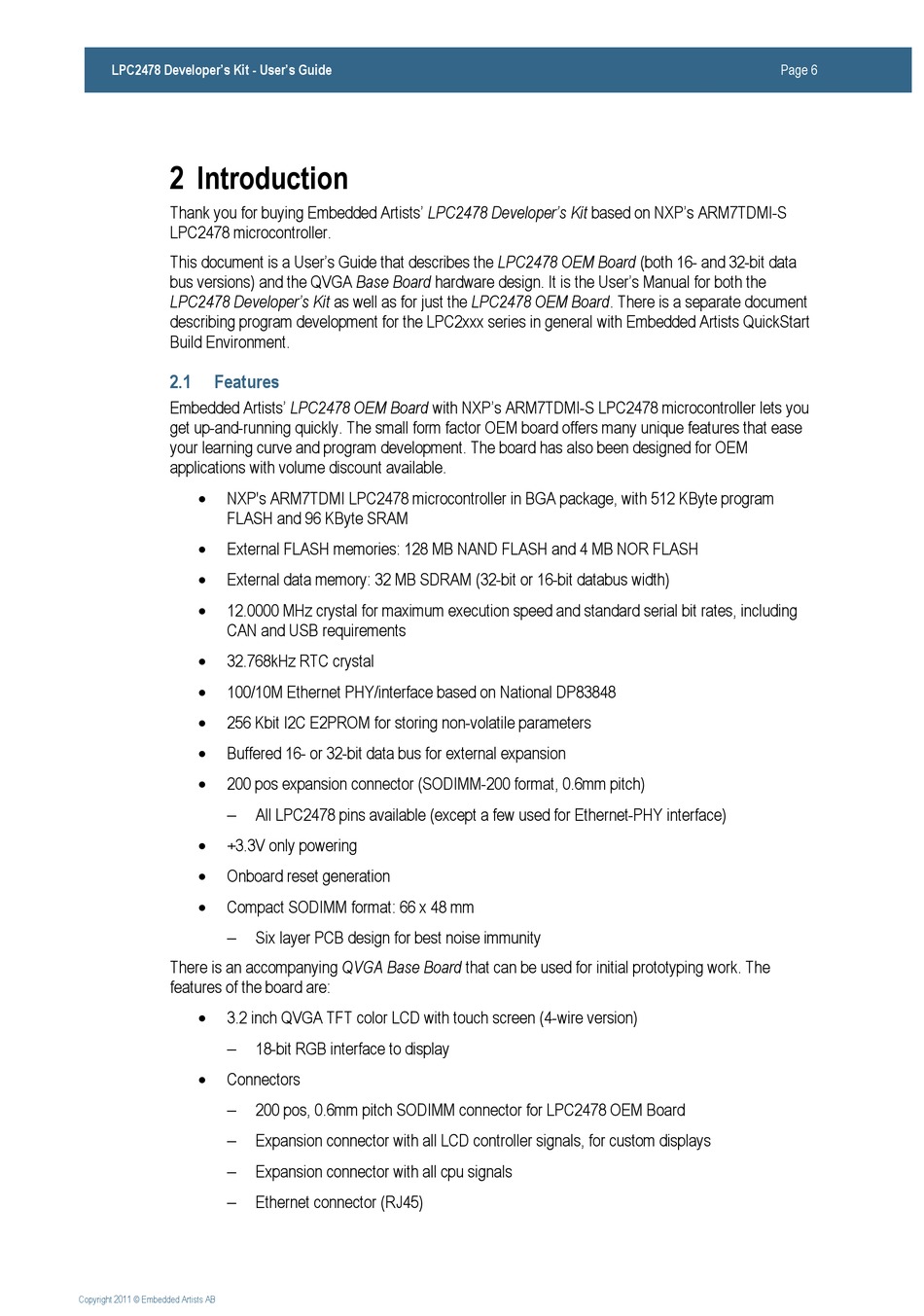

2 Introduction

Thank you for buying Embedded Artists‟ LPC2478 Developer's Kit based on NXP‟s ARM7TDMI-S
LPC2478 microcontroller.
This document is a User‟s Guide that describes the LPC2478 OEM Board (both 16- and 32-bit data
bus versions) and the QVGA Base Board hardware design. It is the User‟s Manual for both the
LPC2478 Developer's Kit as well as for just the LPC2478 OEM Board. There is a separate document
describing program development for the LPC2xxx series in general with Embedded Artists QuickStart
Build Environment.
2.1

Features

Embedded Artists‟ LPC2478 OEM Board with NXP‟s ARM7TDMI-S LPC2478 microcontroller lets you
get up-and-running quickly. The small form factor OEM board offers many unique features that ease
your learning curve and program development. The board has also been designed for OEM
applications with volume discount available.

NXP's ARM7TDMI LPC2478 microcontroller in BGA package, with 512 KByte program
FLASH and 96 KByte SRAM

External FLASH memories: 128 MB NAND FLASH and 4 MB NOR FLASH

External data memory: 32 MB SDRAM (32-bit or 16-bit databus width)

12.0000 MHz crystal for maximum execution speed and standard serial bit rates, including
CAN and USB requirements

32.768kHz RTC crystal

100/10M Ethernet PHY/interface based on National DP83848

256 Kbit I2C E2PROM for storing non-volatile parameters

Buffered 16- or 32-bit data bus for external expansion

200 pos expansion connector (SODIMM-200 format, 0.6mm pitch)


+3.3V only powering

Onboard reset generation

Compact SODIMM format: 66 x 48 mm

There is an accompanying QVGA Base Board that can be used for initial prototyping work. The
features of the board are:

3.2 inch QVGA TFT color LCD with touch screen (4-wire version)


Connectors




Copyright 2011 © Embedded Artists AB
All LPC2478 pins available (except a few used for Ethernet-PHY interface)
Six layer PCB design for best noise immunity
18-bit RGB interface to display
200 pos, 0.6mm pitch SODIMM connector for LPC2478 OEM Board
Expansion connector with all LCD controller signals, for custom displays
Expansion connector with all cpu signals
Ethernet connector (RJ45)
