Embedded Artists AB. Disclaimer Embedded Artists AB makes no representation or warranties with respect to the contents hereof and specifically disclaim any implied warranties or merchantability or fitness for any particular purpose. Information in this publication is subject to change without notice and does not represent a commitment on the part of Embedded Artists AB.
LPC1343 QuickStart Board - User’s Guide Page 3 Table of Contents 1 Document Revision History 2 Introduction Features ESD and Handling Precaution General Handling Care Code Read Protection CE Assessment Other Products from Embedded Artists 2.6.1 Design and Production Services 2.6.2...
LPC1343 QuickStart Board - User’s Guide Page 4 1 Document Revision History Revision Date Description 2010-10-25 First draft. 2010-10-27 Updated section 3.6. 2012-01-13 Added note about CE marking. Removed schematic from document. 2013-04-22 Updated 5.1 with note about requirement to power the board...

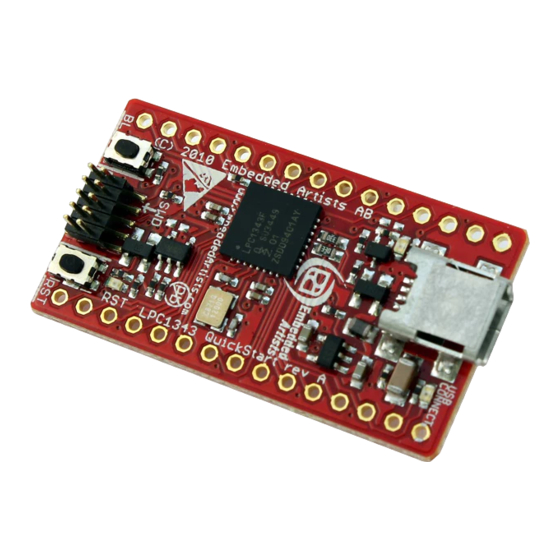

LPC1343 QuickStart Board - User’s Guide Page 5 2 Introduction Thank you for buying Embedded Artists’ LPC1343 QuickStart Board based on NXP’s LPC1343 ARM Cortex-M3 microcontroller. This document is a User’s Guide that describes the LPC1343 QuickStart Board hardware design.
EMC emission limits are not exceeded when connecting other devices to the general expansion connectors of the LPC1343 QuickStart Board. Due to the nature of the LPC1343 QuickStart Board – an evaluation board not for integration into an end-product – fast transient immunity tests and conducted radio-frequency immunity tests have not been executed.
The board is powered either via the USB interface or from an external +5V supply. U2 is an on-board voltage regulator capable of creating a +3.3V voltage for the LPC1343. It can deliver up to 150 mA. The LPC1343 itself does not consume that much so there is at least 100mA available for external circuit use.
Bootload Enable Push-button The LPC1343 sample the state of the PIO0_1 pin immediately after a reset. If the pin is low, the ISP mode is activated and further the pin PIO0_3 is sampled. If high, USB-ISP mode is activated and if low, UARTR-ISP mode is activated.
There are two expansion connectors, J1 and J2. They both have 15 positions and are placed at the board edges. See Figure 2 on page 13 for details about J1 and J2 placement on the board. All programmable pins of the LPC1343 are available on the expansion connectors; see the table below for details.
LPC1343 QuickStart Board - User’s Guide Page 11 The picture below shows how the LPC1343 QuickStart Board looks on the bottom side. The pinning of the expansion connectors is printed on the bottom side in order to simplify usage of the board.
Page 12
LPC1343 QuickStart Board - User’s Guide Page 12 E2PROM. This pin must have I2C-SDA functionality. PIO0_6 J2-3 Connected to control USB Device connect functionality (attaching a 1.5Kohm resistor to DUB-DP signal). Is USB is not used this pin can be used for other purpose.
LPC1343 QuickStart Board - User’s Guide Page 13 4 Physical Design This chapter contains information about the physical design of the LPC1343 QuickStart Board. Main Components Figure 2 below illustrates where the main components in the design can be found on the board.
SWD interface of the LPC1343 QuickStart Board. Note the orientation of the SWD cable in the LPC1343 end. Pin 1 of the SWD connector (J4) is at the board edge, see picture below. This is because the orientation of the SWD/JTAG connector on the LPC-LINK board.
The sequence of steps can be done quickly. The minimum time between step 2 and 3 is in the region of 200mS (which is the reset pulse minimum time from U3 plus the time until the LPC1343 samples the PIO0_1 pin).
Page 17
4 above to the CRP DISABLD drive. 8. Reset the board (SW1 push-button) and the (just downloaded) application will start executing. For details, see LPC1343 User’s Manual [2] from NXP as well as AN10986 [4] (application note from NXP).
LPC1343 QuickStart Board - User’s Guide Page 20 6 Further Information The LPC1343 microcontroller is a complex circuit and there are a number of other documents with more information. The following documents are recommended as a complement to this document. NXP LPC1343 Datasheet http://ics.nxp.com/products/lpc1000/datasheet/lpc1311.lpc1313.lpc1342.lpc1343.pdf...
