- User's Guide

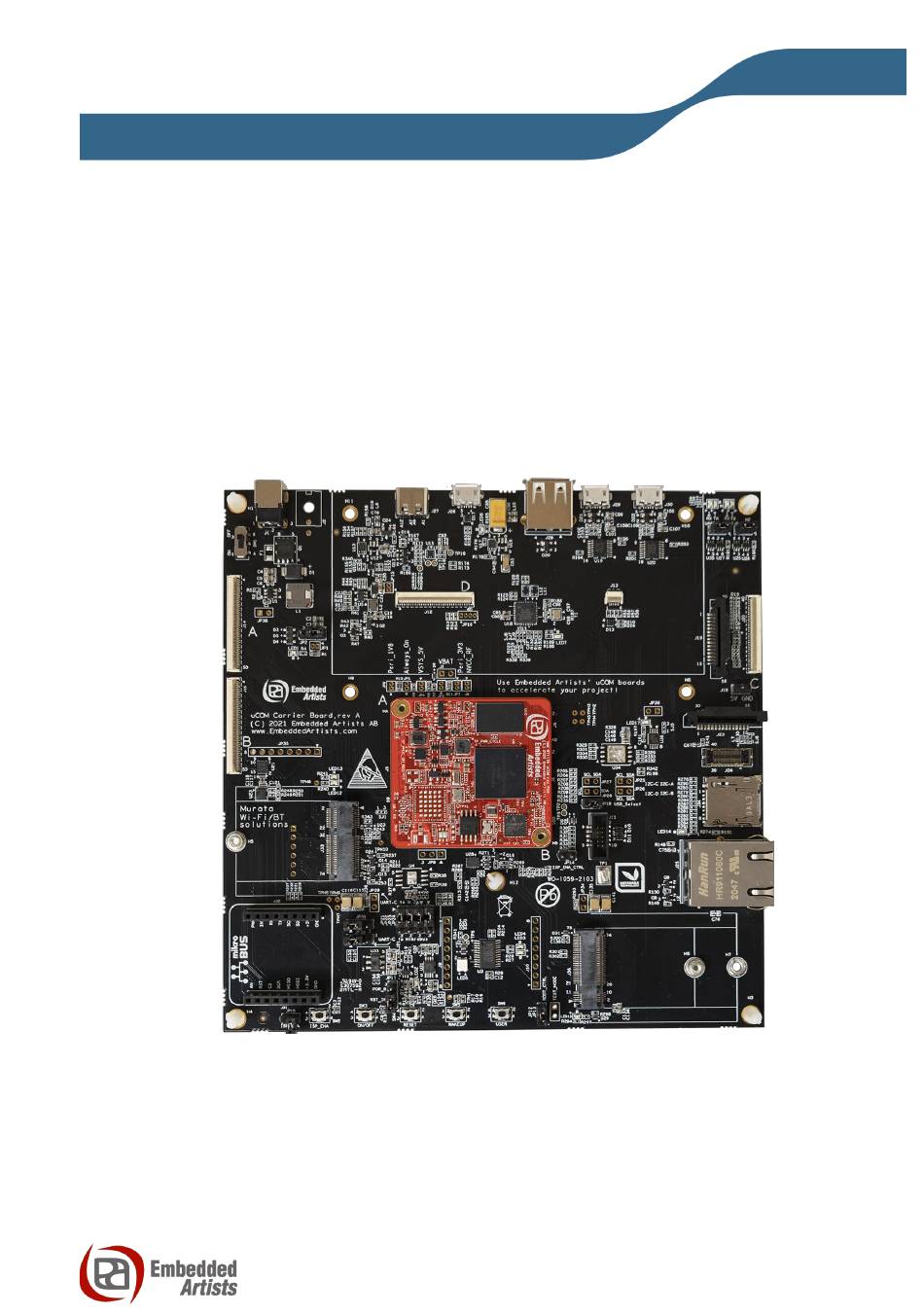

iMX RT1176 uCOM Developer's Kit
Copyright 2021 © Embedded Artists AB
iMX RT1176 uCOM Developer's Kit
User Guide
Get Up-and-Running Quickly and
Start Developing Your Application On Day 1!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMX RT1176 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Embedded Artists iMX RT1176

Summary of Contents for Embedded Artists iMX RT1176

  • Page 1 - User’s Guide iMX RT1176 uCOM Developer’s Kit Copyright 2021 © Embedded Artists AB iMX RT1176 uCOM Developer’s Kit User Guide Get Up-and-Running Quickly and Start Developing Your Application On Day 1!
  • Page 2 Embedded Artists AB. Disclaimer Embedded Artists AB makes no representation or warranties with respect to the contents hereof and specifically disclaim any implied warranties or merchantability or fitness for any particular purpose. Information in this publication is subject to change without notice and does not represent a commitment on the part of Embedded Artists AB.

  • Page 3: Table Of Contents

    RT1176 uCOM Developer’s Kit - User’s Guide Page 3 Table of Contents 1 Document Revision History 2 Getting Started iMX RT1176 uCOM Developer's Kit Content Hardware Overview Connecting - Get Started 2.3.1 Console 2.3.2 Tera Term Terminal Emulation Application 2.3.3...

  • Page 4: Document Revision History

    RT1176 uCOM Developer’s Kit - User’s Guide Page 4 1 Document Revision History Revision Date Description 2021-03-08 Initial release. Copyright 2021 © Embedded Artists AB...

  • Page 5: Getting Started

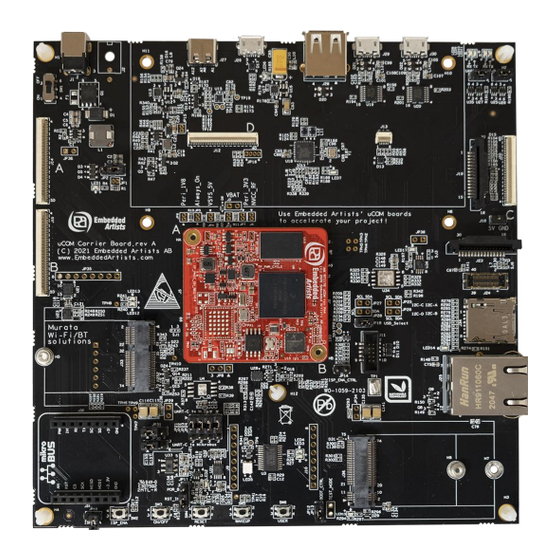

    Developer's Kit. Please read this chapter first before you start using the board - it will be well spent time! First of all, thank you for buying Embedded Artists’ iMX RT1176 uCOM Developer’s Kit based on NXP’s ARM Cortex-M7/M4 i.MX RT1176 Crossover MCU. You will get up-and-running quickly! ...
  • Page 6 3. USB OTG connector - this USB interface can, together with a PC application, be used to program the flash memory of the iMX RT1176 uCOM board. 4. UART-to-USB bridge - this gives access to the console UART of the i.MX RT1176 MCU.

  • Page 7: Connecting - Get Started

    RT1176 uCOM Developer’s Kit - User’s Guide Page 7 Connecting - Get Started It is recommended to visit the Getting Started with uCOM Developer's Kit landing page: https://www.embeddedartists.com/getting-started-with-ucom-developers-kit/ 2.3.1 Console Begin by connecting the micro-B USB connector to position 1) in Figure 1 above. Connect the other end of the USB cable to the PC.

  • Page 8: Putty Terminal Emulation Application

    RT1176 uCOM Developer’s Kit - User’s Guide Page 8 Figure 3 – Tera Term New Connection Window Configure the serial port settings (using the COM port number identified earlier) to 115200 baud rate, 8 data bits, no parity and 1 stop bit. To do this, go to Setup  Serial Port and change the settings.

  • Page 9: Powering

    RT1176 uCOM Developer’s Kit - User’s Guide Page 9 Launch PuTTY by either double clicking on the *.exe file you downloaded or from the Start menu, depending on the type of download you selected. In the window that launches, select the Serial radio button and enter the COM port number that you determined earlier.

  • Page 10: Esd Precaution

    ESD. Never touch directly on the iMX RT1176 uCOM Board and in general as little as possible on the uCOM Carrier Board. The push-buttons on the uCOM Carrier Board have grounded shields to minimize the effect of ESD.
  • Page 11 RT1176 uCOM Developer’s Kit - User’s Guide Page 11 the Youtube clip we have published about this: https://www.youtube.com/watch?v=UiYR1Oz8YPw, title "How to unmount the uCOM board from the adapter" Copyright 2021 © Embedded Artists AB...

  • Page 12: Otp Fuse Programming

    RT1176 uCOM Developers Kit. Due to the nature of the iMX RT1176 uCOM Developers Kit – an evaluation board not for integration into an end-product – fast transient immunity tests and conducted radio-frequency immunity tests have not been executed.

  • Page 13: Ucom Carrier Board Design

    RT1176 uCOM Developer’s Kit - User’s Guide Page 13 3 uCOM Carrier Board Design This chapter contains information about the peripherals and general design of the uCOM Carrier Board and how to set the different jumpers on the board. The schematic can be downloaded in pdf format from the support page, and is recommended to have printed out while reading this chapter.

  • Page 14: Sp9: 100/10Mbps Ethernet Adapter

    RT1176 uCOM Developer’s Kit - User’s Guide Page 14 SP9: 100/10Mbps Ethernet Adapter The 100/10Mbps Ethernet adapter is designed to support also the iMX RT1064 uCOM board. Therefore it is importnat to connect it correctly, see picture below for details. Two separate wires must be connected between JP37 (on the adapter) and JP38 (on the uCOM Carrier board).

  • Page 15: Disclaimers

    If any part of this document refers to any third party products or services it shall not be deemed a license grant by Embedded Artists for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

  • Page 16: Definition Of Document Status

    RT1176 uCOM Developer’s Kit - User’s Guide Page 16 for the Embedded Artists’ product or service described herein and shall not create or extend in any manner whatsoever, any liability of Embedded Artists. This document as well as the item(s) described herein may be subject to export control regulations.
