Axis 2191 Installation Manual

AXIS 2191 Installation Guide - DRAFT COPY
The AXIS 2191 Audio Module
The AXIS 2191 Audio Module is an add-on device that provides audio capability to Axis network
camera products. The module connects quickly and easily to the serial port of the camera and is
configured and controlled via the camera's user interface.
❸ ❹ ❶ ❷

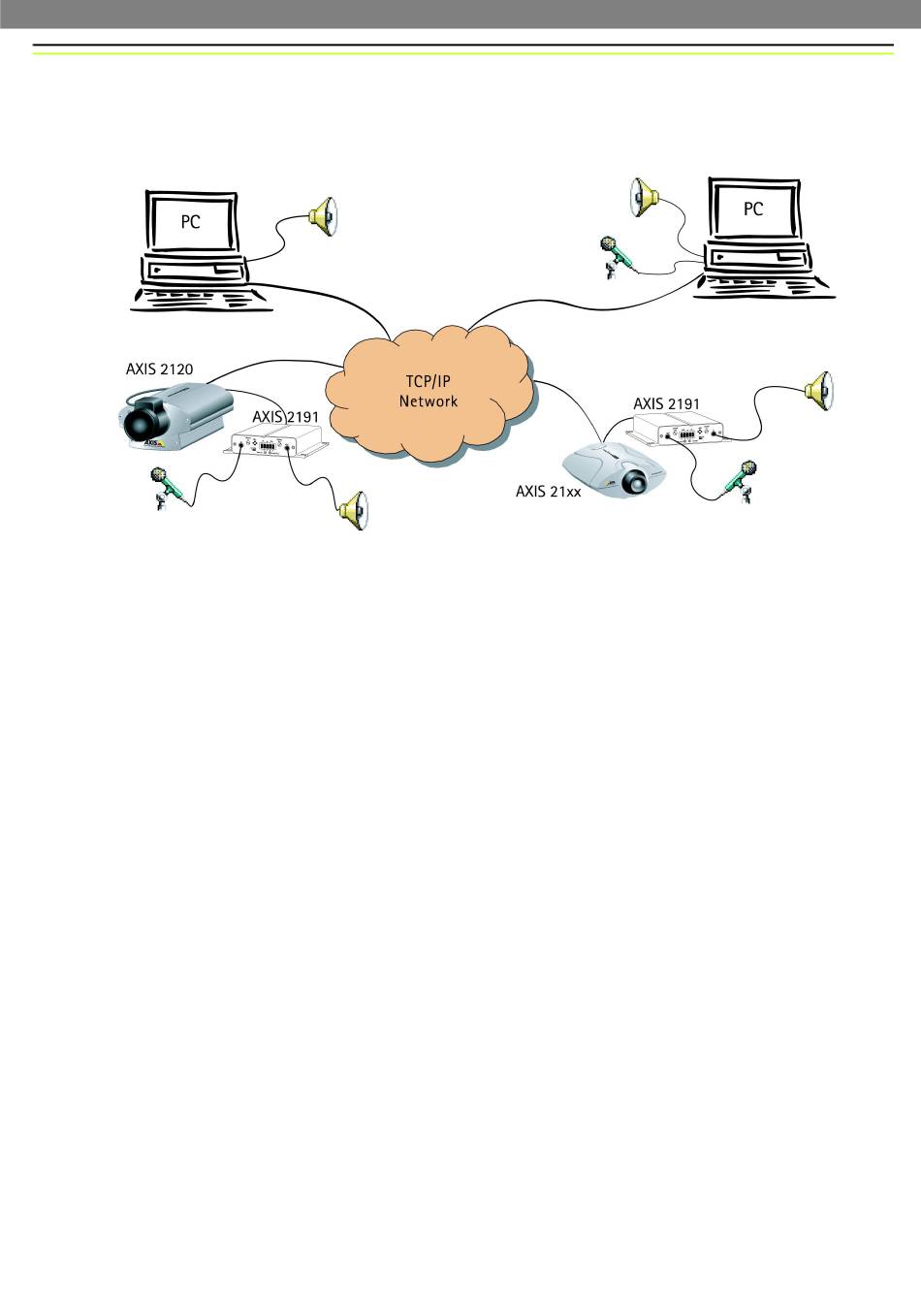

or to and - An Axis Network Camera with an AXIS 2191 Audio Module connected provides live audio and video to
browser clients on the network.
Features and Functions
• Easy to install and use
• Runs on Ethernet LANs and/or the Internet
• Built-in multi-directional microphone
• Compatible with most microphones and speakers (not included)
• External microphone via 3,5mm socket or Line-In via the terminal block
• Simple configuration and management via the network camera's administration pages
• Push-to-talk button in client user interface in Half Duplex or Simplex - Talk mode
• Can be used in Full Duplex, Half Duplex or Simplex mode (see below)
• Fully adjustable input and output levels
• Mute function
Audio Modes
• Full Duplex - Bi-directional communication that allows simultaneous transmission in both direc-
tions, as used in telephone systems. This type of communication requires a full-duplex sound card
installed on your computer. The full-duplex mode can be used for e.g. virtual meetings.
Note: This type of communication can only be used if your sound card supports full-duplex.
• Half Duplex - Bi-directional communication that transmits in one direction at a time. The one end
of the connection must be silent to receive audio from the other end. A walkie-talkie is a good
example of this type of communication.
• Simplex - Talk - Audio communication is one-way only. Use this to, for example, provide spoken
instructions to a person waiting at a door that is monitored by the camera.
• Simplex - Listen - Also one-way only. This can be used, for example, for remote monitoring.
❶
❸
