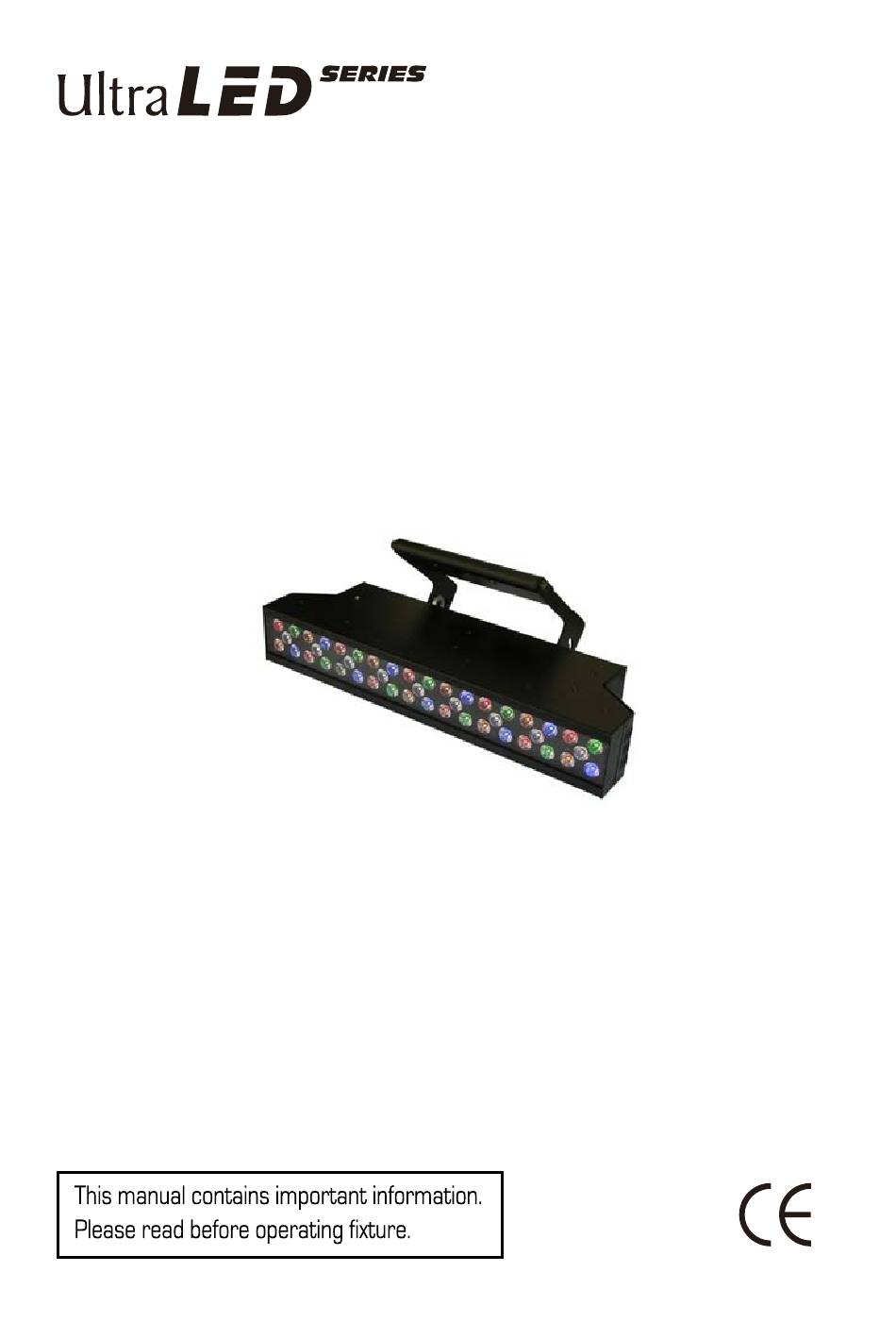

- Page 1 Information specifically for: DL-BAR1CWA45...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT INFORMATION................UNPACKING......................SAFETY INSTRUCTIONS..................INTRODUCTION....................FEATURES......................SPECIFICATIONS....................PRODUCT VIEW....................SETUP........................Mounting......................Fixture Linking....................AC Power......................OPERATING INSTRUCTIONS................Menu Map....................... Test Mode......................System Setup....................DMX mode..................... Master/Slave mode..................Program mode....................Auto mode...................... Sound mode....................Edit Colors...................... Edit Effects..................... SERVICE....................... -
Page 3: Important Information
- 2 -... -
Page 4: Unpacking
UNPACKING Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, retain all packing material for inspection and notify the shipper immediately. -
Page 5: Introduction
▪ This product is intended for indoor use only! ▪ Always turn off, unplug power and allow fixture to cool before servicing. ▪ Ensure that fixture is properly grounded. ▪ Please keep this User Guide for future consultation. ▪ Always make sure that you are connecting to the proper voltage and that the line voltage you are connecting to is not higher than that stated on decal or rear panel of the fixture. -
Page 6: Specifications
► ADDITIONAL FEATURES ▪ Fast 400Hz refresh frequency for video friendly flicker-free operation ▪ Dimmer 0-100% ▪ Strobe 1-30 fps ▪ Power In/Out for daisy-chain ▪ Adjustable floorstand/mounting bracket ▪ Interchangeable optical lens system SPECIFICATIONS ▪ Light source: 45 x 1.2w / 400mA LEDS 9 LEDS of each - Red, Green, Blue, White, Amber ▪... -
Page 7: Fixture Linking
IMPORTANT!!! Safety cables must always be used. The safety cable must be capable of holding 10 times the weight of the fixture. Fixture Linking To run your light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures in master/slave operating mode, you need DMX cables to link the units from DMX IN to DMX OUT. -
Page 8: Menu Map
Menu Map When navigating the menu: Use “UP” button to move up. Use “DOWN” button to move down. Use “Enter” button to move right. Use “MENU” button to move left. Menu Enter Down Power Control Panel Enter Test Test LED Test LED Down [LED]... -
Page 9: Test Mode
ROOT directory in USB device. 1. Download the latest software, LUX45C and LUX45E from: http://www.techni-lux.com. 2. Edit your colors by changing value of Red, Green, Blue, White and Amber. A maximum of 50 colors can be defined. -
Page 10: Dmx Mode
3. Edit your effects by changing value of 1 or 0. 1 stands for ON and 0 for OFF. The Lux Pixel45 is devided into 9 pixels and you can set each pixel to 1 (ON) or 0 (OFF) for desireable effect. Each effect program can contain up to 18 steps and total 12 effect programs can be editable. - Page 11 DMX Channels Mode 1: 3 DMX channels ch.1: effects ch.2: colors ch.3: speed 000-005 color_1 131-135 color_26 All Off 006-010 color_2 136-140 color_27 011-015 color_3 141-145 color_28 001-022 effect_1 016-020 color_4 146-150 color_29 021-026 color_5 151-156 color_30 023-046 effect_2 1-255 027-031 color_6 157-161...
- Page 12 Mode 3: 7 DMX channels x 3 sections section 1 section 2 section 3 Channel Function 1 Red 0-255 section 1: Intensity 0 -100% 2 Green 0-255 section 1: Intensity 0 -100% 3 BLue 0-255 section 1: Intensity 0 -100% 4 White 0-255 section 1: Intensity 0 -100%...
- Page 13 Mode 4: 47 DMX channels Channel Function 0-255 Pixel 1 Red: 0 -100% 0-255 Pixel 1 Green: 0 -100% 0-255 Pixel 1 Blue: 0 -100% 0-255 Pixel 1 White: 0 -100% 0-255 Pixel 1 Amber: 0 -100% 0-255 Pixel 2 Red: 0 -100% 0-255 Pixel 2 Green: 0 -100% 0-255...
- Page 14 Mode 5: 46 DMX channels with ID number Channel Function 000-005: All IDs 135-143: ID# 16 006-014: ID# 1 144-151: ID# 17 015-023: ID# 2 152-160: ID# 18 161-169: ID# 19 024-031: ID# 3 032-040: ID# 4 170-177: ID# 20 1 ID No.
-
Page 15: Master/Slave Mode
Master / Slave Mode In Master/Slave mode, a maximum of 31pcs units can be linked together to run in sync. One of the unit functions as Master and all other units are to be set as Slave. All the Slave units receive data from the Master unit. -
Page 16: Sound Mode
Sound sensitivity [1-99] goes from the highest to lowest level. Note: Edit Colors 1. Download LUX45C (Color file) from www.techni-lux.com. 2. Open the file and edit your colors by changing the value of Red, Green, Blue, White and Amber. A maximum of 50 colors can be customized. -
Page 17: Edit Effects
Edit Effects 1. Download LUX45C (Color file) from www.techni-lux.com. 2. There are 12 effect programs with 18 steps maximum each can be edited. 3. The unit is devided into 9 pixels and you can decide ON/OFF for each pixel. The numbe “1” stands for ON and “0”... -
Page 18: General Maintenace
1. Remove side metal covers. 2. Remove plastic front cover. 3. Remove UP & DOWN screws that hold the lens kit and take out the complete lens kit. 4. Replace lens kit and follow reverse steps to close the fixture. IMPORTANT!!! When replacing the lens assembly, please make sure that the power is disconnected from the fixture beforehand. - Page 19 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. Voice: 407-857-8770 Fax: 407-857-8771 www.techni-lux.com...
