Techni-Lux UltraLED Series DL-BAR10TC24 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Information specifically for:
DL-BAR10TC24
v1.0
This manual contains important information.
Please read before operating fixture.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraLED Series DL-BAR10TC24 and is the answer not in the manual?

Questions and answers

Related Manuals for Techni-Lux UltraLED Series DL-BAR10TC24

Summary of Contents for Techni-Lux UltraLED Series DL-BAR10TC24

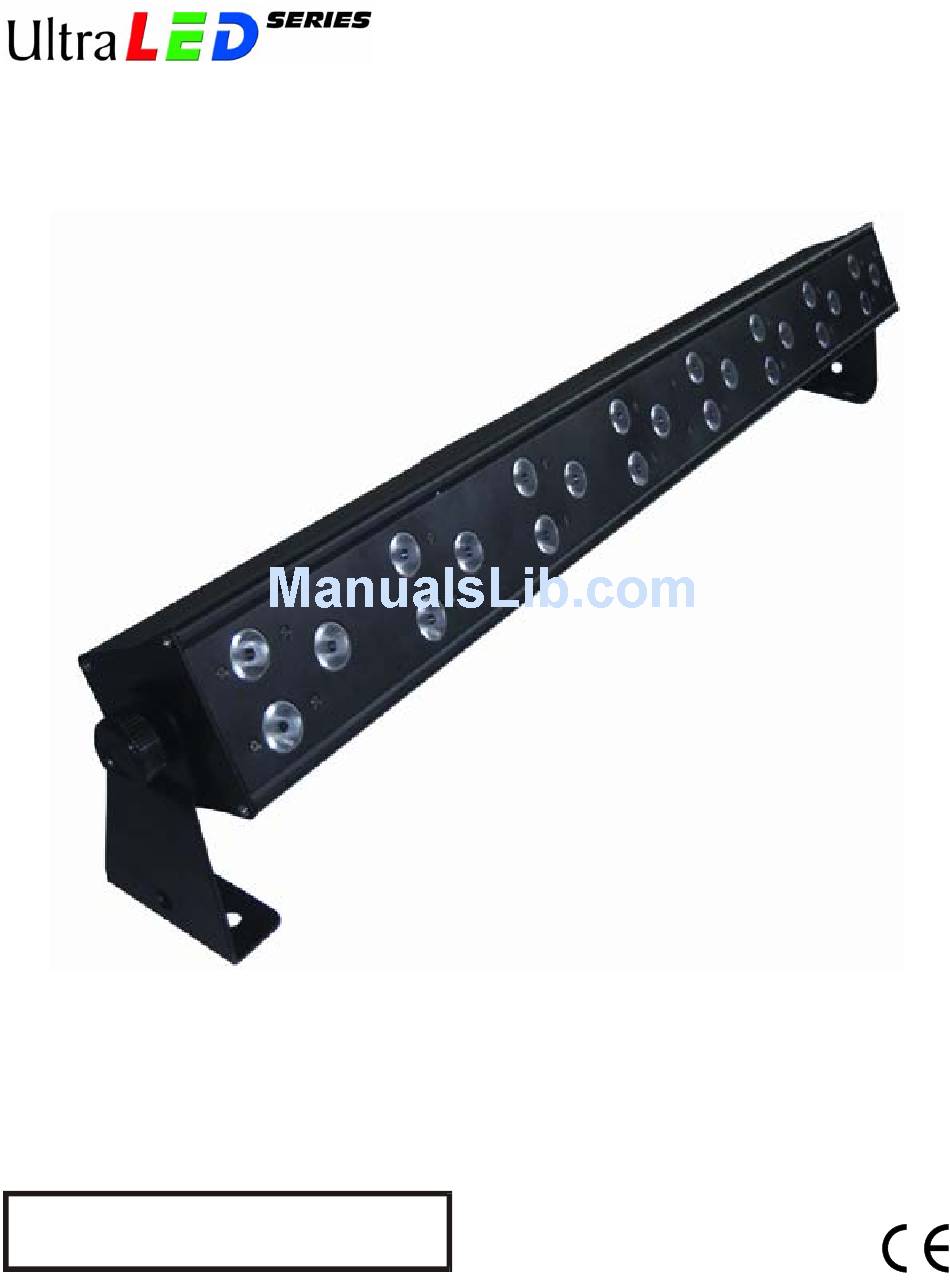

  • Page 1 Information specifically for: DL-BAR10TC24 v1.0 This manual contains important information. Please read before operating fixture.
  • Page 2 It is the owner’s responsibility to provide invoices for proof of purchase, purchase date and dealer or distributor. If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment.

  • Page 3: Table Of Contents

    Table of Contents Specifications ..........................4 Unpacking ...........................5 Power............................5 Mounting .............................5 Basic Reference..........................6 Setup and Operation Modes (LCD Display)................6 Control Panel Menu & Operation Settings ................6 Built-in Program Chase Operation (P01-P14) ................7 Auto Run Operation ........................7 Slave Operation ........................8 Sound Active Operation ......................8 DMX Operation .........................8 DMX-512 Control.........................8 DMX Data Connection ......................9...

  • Page 4: Specifications

    Specifications Fixture Overview • 3 watt tri-chromatic RGB color mixing LED elements • 24 TriLEDs divided into 8 sections of 3 • Beam Angle – 25° • Rugged Aluminum Housing • Operating modes: DMX, Auto Run, Chases, Sound Active, Master/Slave •...

  • Page 5: Unpacking

    Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection.

  • Page 6: Basic Reference

    to mount the unit and position it. Each bracket may offer different benefits when floor standing, truss mounting, wall or ceiling mounting. Always keep cords out of the way, thus preventing any trip hazards. Secure all cables properly. Do not mount where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation.

  • Page 7: Built-In Program Chase Operation (P01-P14)

    Built-in Program Chase Operation (P01-P14) A program is a sequence of different steps that will be called up one after another in a continuous loop. With the DL-BAR10TC24 fixture, you can select up to 14 different program chases. Each program is described in the table below. To select a program: Press the MODE button to select the internal PROGRAM Mode.

  • Page 8: Slave Operation

    In Auto Mode the programs are called up automatically in a continuous loop. Press the MODE button to select the AUTO Mode. Press the ENTER button to select the desired frequency of the loops. The desired frequency of the loops (Frequency = FQN 01-99) can be selected using the UP/DOWN buttons.

  • Page 9: Dmx Data Connection

    Fixtures require a "Start Address" from 1 to 512, setting the first DMX channel containing data for the fixture (see DMX Background). Before addressing fixtures, consult the manual of the system’s DMX controller to select a desirable addressing scheme. Valid Start Addresses range from 1 to 512.

  • Page 10: Dmx Start Address

    5 Pin XLR (Socket) Pin 1: GND(Sheild) XLR (Plug) Pin 2: Signal(-) Pin 1: GND(Sheild) Pin 3: Signal(+) Pin 2: Signal(-) Pin 4: N/C Pin 3: Signal(+) Pin 5: N/C 5 Pin XLR (Plug) XLR (S ocket Pin 1: GND(Sheild) Pin 1: GND(Sheild) Pin 2: Signal(-) Pin 2: Signal(-)

  • Page 11: Channel Mode

    6 channels: Bar completely operates as 1 complete section only. 9 channels: Bar is divided into 2 sections of 4 groups of tri-leds. 15 channels: Bar is divided into 4 sections of 2 groups of tri-leds. 24 channels: Bar is divided into 8 individual sections of 1 group of tri-leds. 27 channels: Bar is divided into 8 individual sections of 1 group of tri-leds with master dimmer and strobe functions.

  • Page 12: Channel Mode

    Note: Macro CH 1 will over ride all channels in all modes. To use the tables below, reference 6 CH mode. Only change between the different modes is when CH 1 is set for Channel MODE (DMX Value 011-021). 9 Channel Mode 11-21 Master Strobe (0-...

  • Page 13: Accessory Items (Sold Separately)

    Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance.

  • Page 14: Dmx-512 Background

    Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same Data Positive (S+ or Hot) and carry the same signals. n/c (not used) n/c (not used) 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. www.techni-lux.com...
