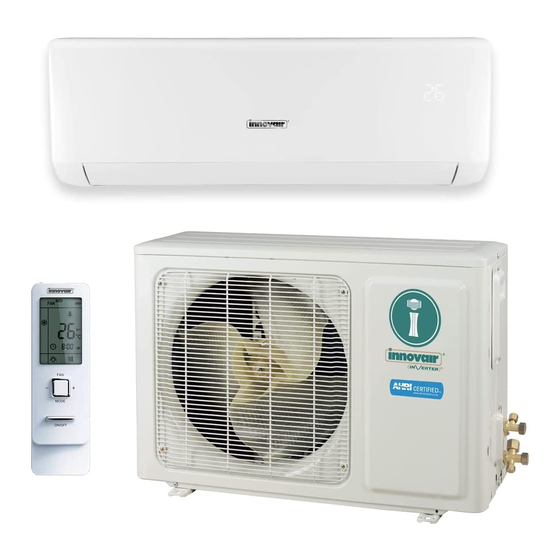

innovair Elite EIN10H2V32 Owner's Manual
  1. Manuals
  2. Brands
  3. innovair Manuals
  4. Air Conditioner
  5. Elite EIN10H2V32
  6. Owner's manual

innovair Elite EIN10H2V32 Owner's Manual

Hide thumbs Also See for Elite EIN10H2V32:
Table of Contents

Advertisement

Quick Links

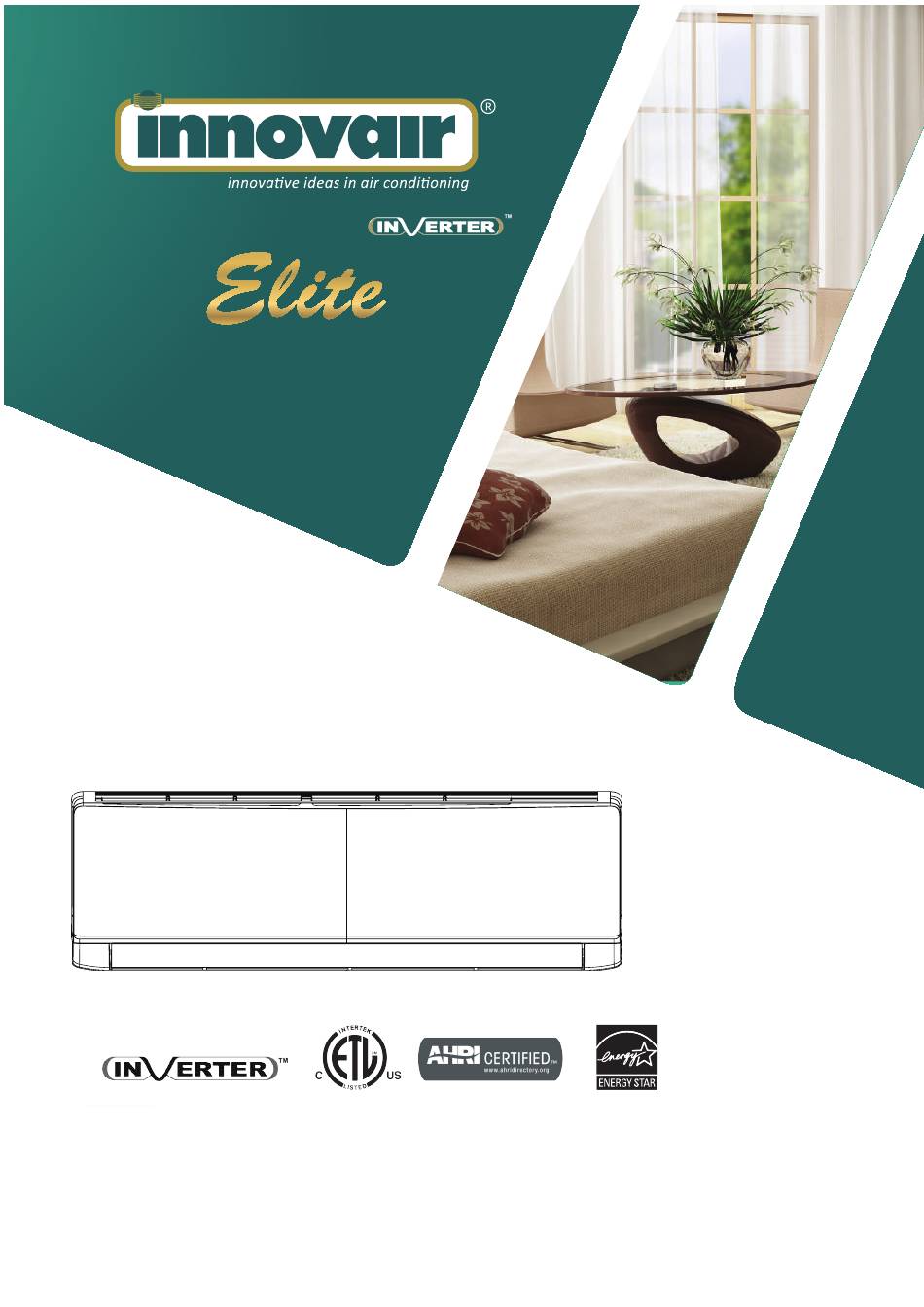

HEAT PUMP
DUCTLESS SPLITS
OWNER'S
MANUAL
WARNING
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, property damage, personal injury and/or death.
• This service is only for service engineer to use.
EIN10H2V32
EIN13H2V32
EIN18H2V32
EIN24H2V32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite EIN10H2V32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for innovair Elite EIN10H2V32

Summary of Contents for innovair Elite EIN10H2V32

  • Page 1 HEAT PUMP DUCTLESS SPLITS OWNER'S MANUAL EIN10H2V32 EIN13H2V32 EIN18H2V32 EIN24H2V32 WARNING • The information contained in the manual is intended for use by a qualified service technician familiar with safety procedures and equipped with the proper tools and test instruments •...

  • Page 2: Table Of Contents

    OWNER’S MANUAL Innovair Elite Mini Split Table of Contents Introduction ......... . . 1 Nomenclature .

  • Page 3: Nomenclature

    OWNER’S MANUAL Innovair Elite Mini Split NOMENCLATURE Example: EIN10H2V32(I) 10 H Series EIN - Elite Inverter I - Indoor Unit O - Outdoor Unit Cooling Capacity 10 - 9,000 BTUH 13 - 12,000 BTUH 18 - 18,000 BTUH 24 - 24,000 BTUH...

  • Page 4: Safety Precautions

    OWNER’S MANUAL Innovair Elite Mini Split SAFETY PRECAUTIONS Please read the following before operation. Recognize safety information. This is the safety-alert symbol. When you see this symbol on the unit and in instructions or manuals, be alert to the potential for personal injury.
  • Page 5 OWNER’S MANUAL Innovair Elite Mini Split SAFETY PRECAUTIONS Please read the following before operation. WARNING • Disconnect electrical power to the indoor and outdoor units before performing any maintenance or cleaning. • Do not attempt to repair the Gree system yourself. Incorrect repairs may cause electric shock or fire.

  • Page 6: Installation Schematic

    OWNER’S MANUAL Innovair Elite Mini Split Installation Schematic Air inlet Indoor unit Air outlet Installation Components* 1. Front Panel 2. Aux. Button 3. Filter 4. Horizontal Louver 5. Remote Controller 6. Inter-Connection Wire (sold separately) 7. Drain Hose (sold separately) 8.

  • Page 7: System Functions

    OWNER’S MANUAL Innovair Elite Mini Split SYSTEM FUNCTIONS WHISPER QUIET Not only are the systems energy efficient, but they are quiet too. Elite Wall Mount units operate with sound lower than typical library sound levels. MULTI FAN SPEEDS Whether operating in either Cooling or Heating mode, the indoor fan can be set to your choice of seven different speeds (Ultra-Low, Low, Low-Medium, Medium, Medium-High or High) to achieve maximum comfort.
  • Page 8 OWNER’S MANUAL Innovair Elite Mini Split SYSTEM FUNCTIONS MODE BUTTON The unit can be set to five different operating modes: HEAT, COOL, DRY, FAN ONLY and AUTO. NOTE: AUTO MODE has fixed setpoints of 68° F heating and 77° F cooling, which are not adjustable.

  • Page 9: Operation Of Wireless Remote Controller

    OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER BUTTONS ON REMOTE CONTROLLER 1. ON/OFF Button 2. Fan Button 1. ON/OFF Button 3. Mode Button 4. +/- Buttons 2. Fan Button 3. Mode Button 5. TURBO Button Button 4.
  • Page 10 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER REMOTE CONTROLLER OPERATIONS The wireless remote controller is sleek, versatile and allows you to change room temperatures and functions on your Elite system from the palm of your hand. The large LCD display and buttons make it easy-to-understand and easy-to-use.
  • Page 11 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER MODE BUTTON Use the “MODE” button to select one of the available modes. The selected mode will be displayed on the remote controller and the appropriate light will illuminate on the front display panel.
  • Page 12 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER TIMER SETTING TIMER OFF button To set when you want the unit to turn Off at the end of a selected time period, use the button labeled “TIMER OFF”...
  • Page 13 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER SLEEP MODE The Elite system will automatically adjust room temperature during your sleep time. This slight change in temperature will not affect your comfort level due to the natural effects that sleeping has on the body, but it will save on energy consumption and will lower your electric bill.
  • Page 14 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER NOTE: During this procedure, if no button is pressed within 10 seconds, remote controller will automatically exit the sleep curve setting and resume original display. If ON/OFF, MODE SLEEP, COOLING or HEATING button is pressed during the setting or inquiry procedure, remote controller will also exit the sleep curve setting.
  • Page 15 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER DISPLAYING SETPOINT OR INDOOR TEMPERATURE ON FRONT PANEL: The setpoint temperature or room temperature can be displayed on the front panel. Only setpoint temperature is displayed on the remote controller.
  • Page 16 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER QUIET MODE Sapphire’s QUIET MODE function delivers quiet comfort to your room. Press QUIET button to activate QUIET MODE in heating or cooling mode. The QUIET icon will be displayed on the remote controller.
  • Page 17 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER I FEEL MODE Press this button to use the I FEEL function, and the ( ) icon will be displayed. The unit will sense room temperature at the remote controller instead of at the indoor unit. It then adjusts airflow and temperature accordingly for the ultimate in personal comfort control and energy savings.
  • Page 18 OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF WIRELESS REMOTE CONTROLLER CHANGING BATTERIES AND ADDITIONAL NOTES To change batteries, slide cover off battery compartment on back of remote controller. Remove and safely discard old batteries. Insert two new AAA 1.5V dry batteries, using correct polarity.

  • Page 19: Operation Of Smart Control

    OWNER’S MANUAL Innovair Elite Mini Split OPERATION OF SMART CONTROL FOR USE WITH YOUR SMARTPHONE For the ultimate in convenience, your Elite Heat Pump or Air Conditioner features a built-in intelligent WIFI capability and Smart Control function. This allows you to operate the unit through your smartphone.

  • Page 20: Troubleshooting

    OWNER’S MANUAL Innovair Elite Mini Split TROUBLESHOOTING PROBLEM CAUSE/SOLUTION System does not restart. Cause: The system has a built-in three-minute delay to prevent short and/or rapid cycling of the compressor. Solution: Wait three minutes for the protection delay to expire.
  • Page 21 OWNER’S MANUAL Innovair Elite Mini Split TROUBLESHOOTING PROBLEM CAUSE/SOLUTION Water leaking from the indoor Cause: While it is normal for the system to generate condensate water in cooling unit into the room. mode, it is designed to drain this water via a condensate drain system to a safe location.

  • Page 22: Care And Cleaning

    OWNER’S MANUAL Innovair Elite Mini Split CARE AND CLEANING WARNING Take notice of the following items before cleaning your Elite indoor wall unit. To avoid electric shock or injury, do not attempt to clean the unit unless it has been turned •...

  • Page 23: Energy Saving Tips

    OWNER’S MANUAL Innovair Elite Mini Split ENERGY SAVING TIPS 1. Reduce room setpoint at night: During the nighttime hours you don't require the same level of conscious cooling or heating. Try using Sleep Mode to gradually relax room temperature and allow the unit to run less and save energy.

This manual is also suitable for:

Elite ein13h2v32Elite ein18h2v32Elite ein24h2v32
