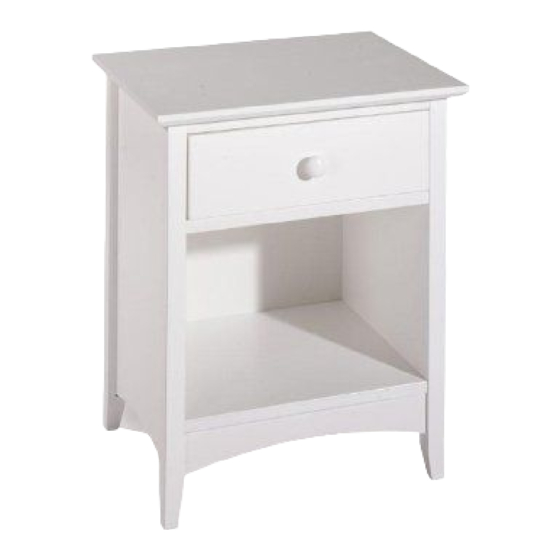

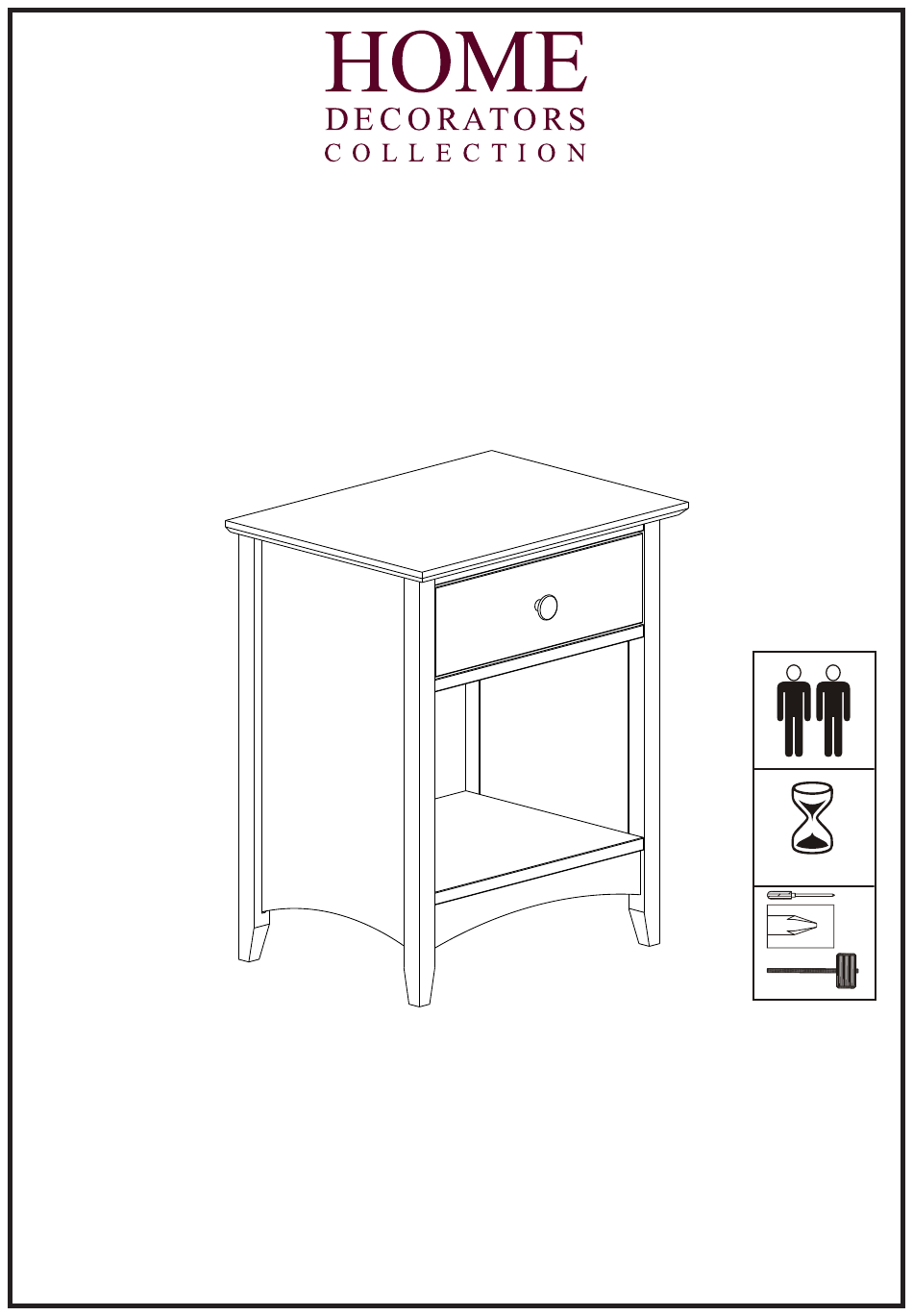

HAWTHORNE 1 DRAWER NIGHTSTAND 25"Hx20.5"W
SKU # 2047800120R (Dark Cherry)
SKU # 2047800550R (Oak)
SKU # 2047800410R (White)
SKU # 2047800210 (Black)
30 Min.
BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL
PARTS AND HARDWARE ARE ACCOUNTED FOR.
IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING
MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED. SELECT A CLEAN,
SMOOTH SURFACE TO WORK (SUCH AS CARPET).
THEN, FOLLOW THE EASY STEPS BELOW.
IF PARTS ARE MISSING, PLEASE CALL 1-800-998-7021 FOR INFORMATION.
MADE IN BRAZIL
16 02 08 2
Advertisement
Related Manuals for Home Decorators Collection 2047800120R
Summary of Contents for Home Decorators Collection 2047800120R
- Page 1 HAWTHORNE 1 DRAWER NIGHTSTAND 25"Hx20.5"W SKU # 2047800120R (Dark Cherry) SKU # 2047800550R (Oak) SKU # 2047800410R (White) SKU # 2047800210 (Black) 30 Min. BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL PARTS AND HARDWARE ARE ACCOUNTED FOR. IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED.
- Page 2 Part# Description Sizes (w x d x h) 20 1/4¨ 14 15/16¨ 11/16¨ 1 5/8¨ 24¨ Left Side 13 3/4¨ Right Side 1 5/8¨ 24¨ 13 3/4¨ 1 9/16¨ Rail 15 15/16¨ 11/16¨ 15 15/16¨ 2 1/2¨ Front Rail 11/16¨ Bottom Panel 15 15/16¨...
-
Page 3: Hardware Pack
1/4¨ x 1 3/16¨ 9/64¨ x 1 2/5¨ 1/16¨ x 7/8¨ 1/8¨ x 1 1/4¨ 1/8¨ x 15/16¨ HARDWARE PACK... - Page 4 1. Prepare for future assembly by: S T E P 1 * Insert wood dowels (A) into drawer sides (8) & (9) * Insert wood dowels (A) into all rails (4) * screw mini-fix pins (B) into the top panel (1) * screw mini-fix pins (B) into the side parts (2) &...
- Page 5 2. Using the dowels and mini-fix pins previously attached in step S T E P 1 as guide, assemble the rails (4) and the bottom panel (6)to side (2) as shown. Next align and attach the side (3) making sure all dowels and holes are matched up.
- Page 6 Turn your nightstand upright again, then insert wood dowel (A) S T E P into the side top holes. 5. Attach the top panel (1) and secure S T E P using mini-fix drums (C) as shown.
- Page 7 6. Using dowels as your guide, aling and attach a left (8) and a S T E P right (9) drawer side to a drawer front (7) as shown. Secure using screws (D) as shown. 7. Slide in the drawer bottom (10) as shown. S T E P...
- Page 8 8. Align and attach the drawer back (11) as shown, secure using S T E P screws (D). 9. Attach the drawer knobs (F) to the drawer front (7) using screws S T E P (G) as shown. Then, attach the plastic drawer stop (H) to the drawer back (11) using screw (I) as shown.
- Page 9 10. Slide in the drawers. To remove the drawer you must press S T E P 10 down the drawer stop as shown. 11. Complete the assembly of your nighstand by nailing the back panel S T E P 11 (12) using nails (E).
