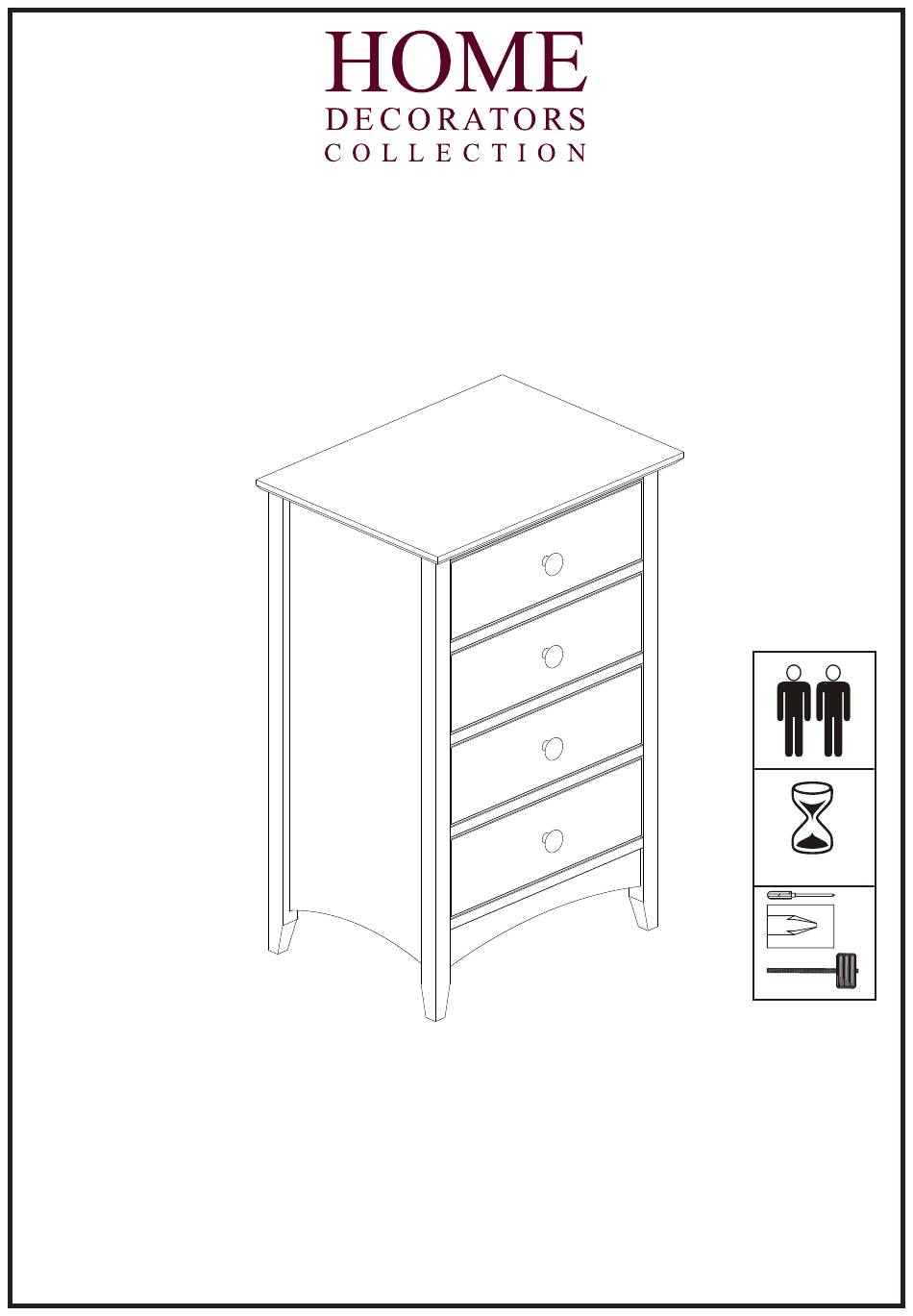

HAWTHORNE 4-DRAWER CHEST 31"Hx20"W
SKU #
2048000
SKU #
2048000
SKU #
2048000
SKU #
2048000
BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL
PARTS AND HARDWARE ARE ACCOUNTED FOR.
IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING
MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED. SELECT A CLEAN,
SMOOTH SURFACE TO WORK (SUCH AS CARPET).
IF PARTS ARE MISSING, PLEASE CALL 1-800-998-7021 FOR INFORMATION.
120R (Dark Cherry)
550R (Oak)
410R (White)
210 (Black)
THEN, FOLLOW THE EASY STEPS BELOW.
30 Min.
MADE IN BRAZIL
16 02 08 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection HAWTHORNE 2048000120R
Summary of Contents for Home Decorators Collection HAWTHORNE 2048000120R
- Page 1 HAWTHORNE 4-DRAWER CHEST 31"Hx20"W SKU # 2048000 120R (Dark Cherry) SKU # 2048000 550R (Oak) SKU # 2048000 410R (White) SKU # 2048000 210 (Black) 30 Min. BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL PARTS AND HARDWARE ARE ACCOUNTED FOR. IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED.
- Page 2 Part# Description Sizes (w x d x h) 20 1/4¨ 14 15/16¨ 11/16¨ 29 15/16¨ 1 5/8¨ Left Side 13 3/4¨ 29 15/16¨ 1 5/8¨ Right Side 13 3/4¨ 1 9/16¨ 15 15/16¨ 11/16¨ Rail 15 15/16¨ 2 1/2¨ Front Rail 11/16¨...
-
Page 3: Hardware Pack
1/4¨ x 1 3/16¨ 1/8¨ x 1 3/16¨ 1/16¨ x 7/8¨ 1/8¨ x 1 3/16¨ 1/8¨ x 5/8¨ HARDWARE PACK... - Page 4 1. Prepare for future assembly by: S T E P * Insert wood dowels (A) into all drawer sides (8) & (9) * Insert wood dowels (A) into all rails (4) * screw mini-fix pins (B) into the top panel (1) * screw mini-fix pins (B) into the side parts (2) &...
- Page 5 2. Using the dowels and mini-fix pins previously attached in step S T E P 2 1 as guide, assemble the rails (4) to side(2) as shown. Next align and attach the side (3) making sure all dowels and holes are matched up.
- Page 6 4. Secure the bottom panel (6) using nails (E) as shown. S T E P 5. Turn your chest upright again, insert wood dowel (A) into the S T E P side top holes. Then, attach the top panel (1) and secure using mini-fix drums (C) as shown.
- Page 7 6. Using dowels as your guide, aling and attach a left (8) and a S T E P right (9) drawer side to a drawer front (7) as shown. Secure using screws (D) as shown. 7. Slide in the drawer bottom (10) as shown. S T E P...
- Page 8 8. Align and attach the drawer back (11) as shown, secure using S T E P screws (D). 9. Attach the drawer knobs (F) to the drawer front (7) using screws S T E P (G) as shown. Then, attach the plastic drawer stop (H) to the drawer back using screw (I) as shown.
- Page 9 10. Slide in the drawers. To remove the drawer you must press S T E P 10 down the drawer stop as shown. 11. Complete the assembly of your chest by nailing the back panel S T E P 11 (12) using nails (E).
