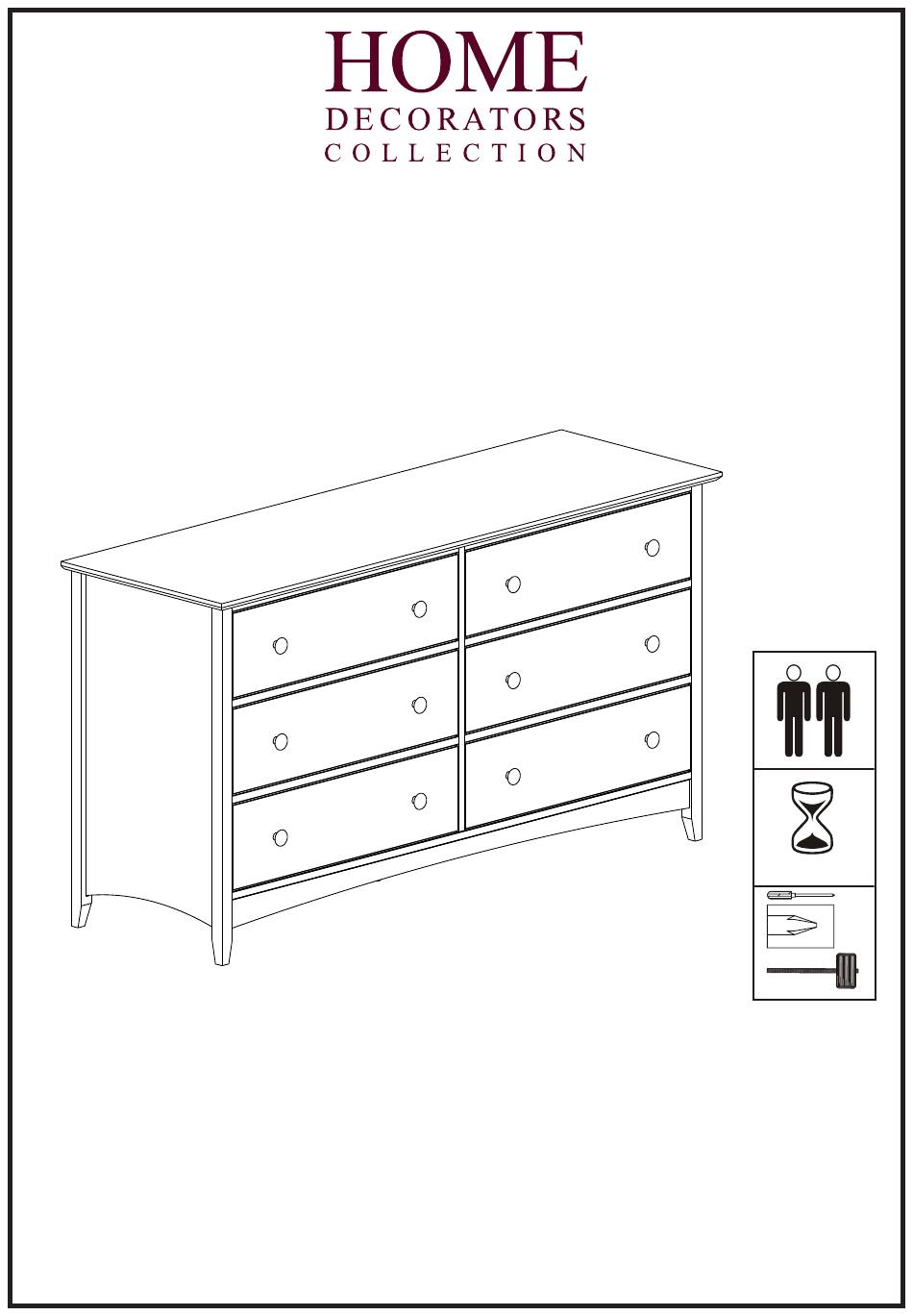

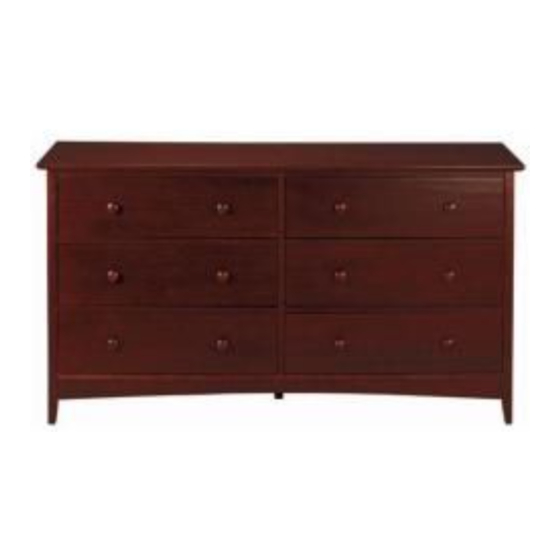

HAWTHORNE WIDE 6-DRAWER DRESSER 32"Hx59"W
SKU# 2049000120R (DARK CHERRY)
SKU# 2049000550R (OAK)
SKU# 2049000410R (WHITE)
SKU# 2049000210 (BLACK)
30 Min.
BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL
PARTS AND HARDWARE ARE ACCOUNTED FOR.
IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING
MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED SELECT A CLEAN,
SMOOTH SURFACE TO WORK (SUCH AS CARPET).
THEN, FOLLOW THE EASY STEPS BELOW.
IF PARTS ARE MISSING, PLEASE CALL 1-800-998-7021 FOR INFORMATION.
MADE IN BRAZIL
16 02 08 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection HAWTHORNE 2049000120R
Summary of Contents for Home Decorators Collection HAWTHORNE 2049000120R
- Page 1 HAWTHORNE WIDE 6-DRAWER DRESSER 32"Hx59"W SKU# 2049000120R (DARK CHERRY) SKU# 2049000550R (OAK) SKU# 2049000410R (WHITE) SKU# 2049000210 (BLACK) 30 Min. BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL PARTS AND HARDWARE ARE ACCOUNTED FOR. IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED SELECT A CLEAN, SMOOTH SURFACE TO WORK (SUCH AS CARPET).
- Page 2 Part# Description Sizes (w x d x h) 59 1/16¨ 19¨ 11/16¨ 31 1/16¨ 17 13/16¨ 1 5/8¨ Left Side 31 1/16¨ 17 13/16¨ 1 5/8¨ Right Side 24 15/16¨ 17 5/8¨ 1 9/16¨ Divider Bottom Panel 54 1/4¨ 17 9/16¨ 11/16¨...
-
Page 3: Hardware Pack
1/4¨ x 1 3/16¨ 1/8¨ x 1 3/16¨ 1/16¨ x 7/8¨ 1/8¨ x 1 3/16¨ 1/8¨ x 5/8¨ 3/16¨ x 1 9/16¨ 1/4¨ x 1 15/16¨ HARDWARE PACK... - Page 4 1. Prepare for future assembly by: S T E P * Insert wood dowels (A) into all drawer sides (31) & (32) * Insert wood dowels (A) into the side parts (2) & (3) * Insert wood dowels (A) into the divider (4) * Insert wood dowels (A) into all rails (11) * Insert wood dowels (A) into the bottom panel (5) * screw mini-fix pins (B) into the top panel (1)
- Page 5 2. Attach the plastic plug (J) to central foot (10) then screw the S T E P adjustable foot (K) into the plastic plug. Using the holes as guide, attach the central foot (10) to bottom S T E P panel (5) and secure using screw (M) and allen key (N) as shown.
- Page 6 Using the dowels and mini-fix pins previously attached in step S T E P 4 1 as guide, assemble the rails (11) to divider(4) as shown. Secure the rails to the divider using mini-fix drums (C) in a clockwise motion as shown: Using the dowels and mini-fix pins previously attached in step S T E P 5...
- Page 7 Attach the front rail (6) to the bottom rail (5) using the mini-fix S T E P 6 pins as guides, secure using mini-fix drums (C) as shown. Attach the top panel (1) and secure using mini-fix drums (C) S T E P 7 as shown.
- Page 8 8. Using dowels as your guide, align and attach a left (31) and a S T E P 8 right (32) drawer side to a drawer front (15) as shown. Secure using screws (D) as show. 9. Slide in the drawer bottom (16) as shown. S T E P 9...
- Page 9 10. Align and attach the drawer back (17) as shown, secure using S T E P 10 screws (D). 11. Attach the drawer knobs (F) to the drawer front (15) using screws S T E P 11 (G) as shown. Then, attach the plastic drawer stop (H) to the drawer back using screw (I) as shown.
- Page 10 12. Slide in the drawers. To remove the drawer you must press S T E P 12 down the drawer stop as shown. 13. Complete the assembly of your chest by nailing the back panel S T E P 13 (13) using nails (E).
-
Page 11: Tipping Restraint Hardware
S T E P Tipping restraint Instructions TIPPING RESTRAINT HARDWARE • 1 nylon strap B B B • 1 ½”screw C C C Ø6 • 1 plastic screw anchor D D D • 2 wall brackets E E E 1 small screw •...
