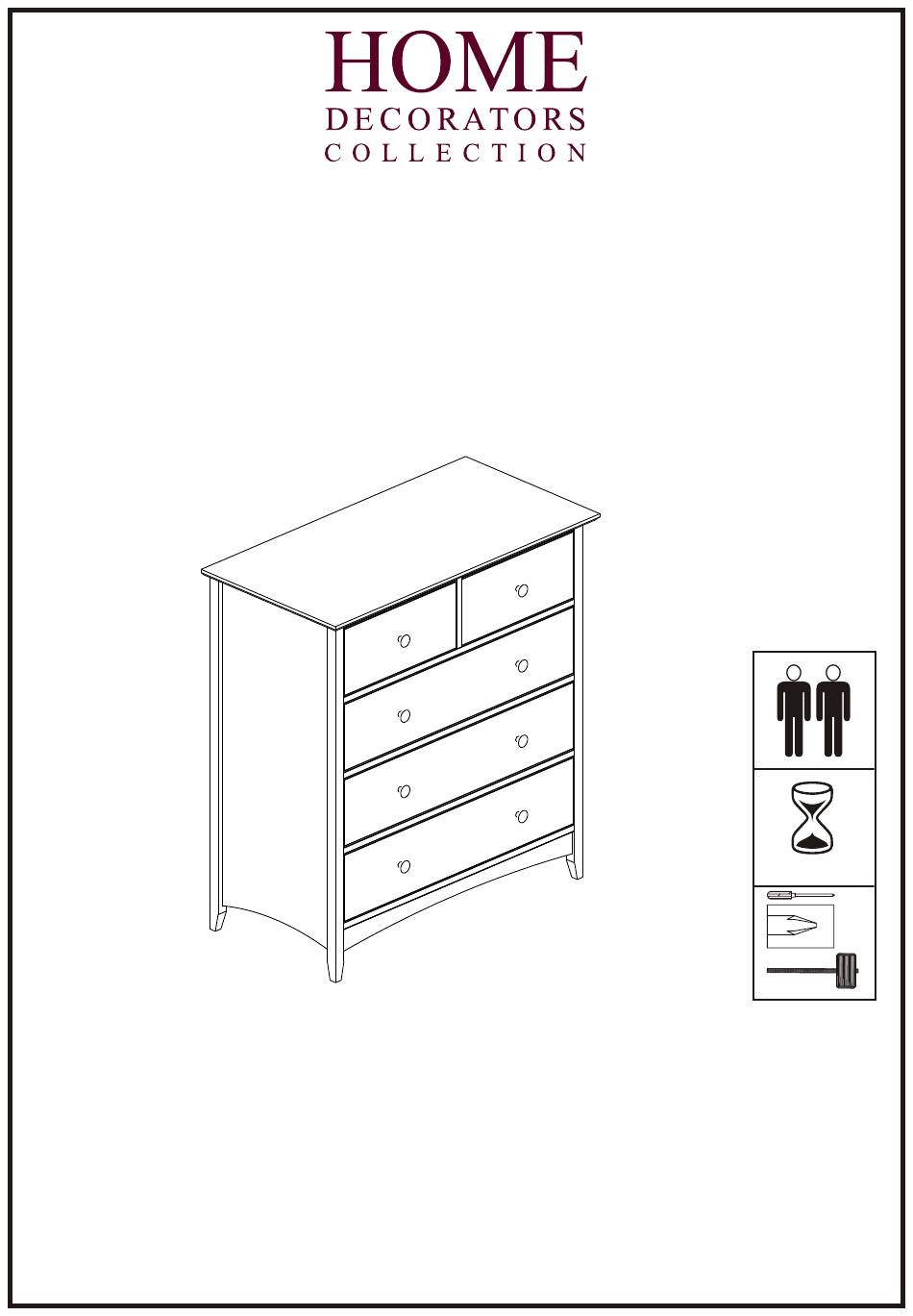

HAWTHORNE 3 + 2 DRAWER CHEST 31"Hx37"W
SKU# 2048500120R - Dark Cherry
SKU# 2048500550R - Oak
SKU# 2048500410R - White
SKU# 2048500210 - Black
60 Min.
BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL
PARTS AND HARDWARE ARE ACCOUNTED FOR.
IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING
MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED SELECT A CLEAN,
SMOOTH SURFACE TO WORK (SUCH AS CARPET).
THEN, FOLLOW THE EASY STEPS BELOW.
IF PARTS ARE MISSING, PLEASE CALL 1-800-998-7021 FOR INFORMATION.
MADE IN BRAZIL
16 02 04 2
Advertisement
Related Manuals for Home Decorators Collection HAWTHORNE 2048500120R
Summary of Contents for Home Decorators Collection HAWTHORNE 2048500120R
- Page 1 HAWTHORNE 3 + 2 DRAWER CHEST 31"Hx37”W SKU# 2048500120R - Dark Cherry SKU# 2048500550R - Oak SKU# 2048500410R - White SKU# 2048500210 - Black 60 Min. BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL PARTS AND HARDWARE ARE ACCOUNTED FOR. IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED SELECT A CLEAN, SMOOTH SURFACE TO WORK (SUCH AS CARPET).
- Page 2 Part# Description Sizes (w x d x h) 37 3/8¨ 19¨ 11/16¨ Left Side 29 15/16¨ 17 13/16¨ 1 5/8¨ Right Side 29 15/16¨ 17 13/16¨ 1 5/8¨ Rail 15 15/16¨ 1 9/16¨ 11/16¨ Front Rail 32 9/16¨ 2 1 / 2¨ 11/16¨...
-
Page 3: Hardware Pack
1/4¨ x 1 3/16¨ 1/8¨ x 1 3/16¨ 1/16¨ x 7/8¨ 1/8¨ x 1 3/16¨ 1/8¨ x 5/8¨ HARDWARE PACK... - Page 4 1. Prepare for future assembly by: S T E P * Insert wood dowels (A) into all drawer sides (21) & (22) * Insert wood dowels (A) into all rails (4), (13 & (14) * Insert wood dowels (A) into the side parts (2) & (3) * Insert wood dowels (A) into the divider (16) * screw mini-fix pins (B) into the top panel (1) * screw mini-fix pins (B) into the side parts (2) &...
- Page 5 2. Using the dowels and mini-fix pins previously attached in step S T E P 1 as guide, assemble the rails (4) & (14) to divider(16) as shown. Secure the rails to the divider using mini-fix drums (C) in a clockwise motion as shown: 3.
- Page 6 4. Attach the front rail (5) to the bottom rail (13) using the S T E P mini-fix pins as guides, secure using mini-fix drums (C) as shown. 5. Secure the bottom panel (6) using nails (E) as shown. S T E P...
- Page 7 6. Attach the top panel (1) and secure using mini-fix drums (C) S T E P 6 as shown. 7. Turn your chest upright and secure the last rail (13) using S T E P mini-fix drums (C) as shown.
- Page 8 8. Using dowels as your guide, aling and attach a left (21) and a S T E P right (22) drawer side to a drawer front (7) as shown. Secure using screws (D) as show. 9. Slide in the drawer bottom (25) as shown. S T E P 10.
- Page 9 11. Attach the drawer knobs (F) to the drawer front (7) using screws S T E P 11 (G) as shown. Then, attach the plastic drawer stop (H) to the drawer back (11) using screw (I) as shown. 12. Using dowels as your guide, aling and attach a left (21) and a S T E P 12 right (22) drawer side to the drawer front (20) as shown.
- Page 10 S T E P 13 13. Slide in the drawer bottom (23) as shown. 14. Align and attach the drawer back (24) as shown, secure using S T E P 14 screws (D).
- Page 11 15. Attach the drawer knobs (F) to the drawer front (20) using screws S T E P 15 (G) as shown. Then, attach the plastic drawer stop (H) to the drawer back (24) using screw (I) as shown. S T E P 16 16.
- Page 12 17. Slide in the drawers. To remove the drawer you must press S T E P 17 down the drawer stop as shown. 18. Complete the assembly of your chest by nailing the back panel S T E P 18 (12) using nails (E).
