OMSID # 207000498
Model # WSFP60ECHD-21
ASSEMBLY INSTRUCTIONS

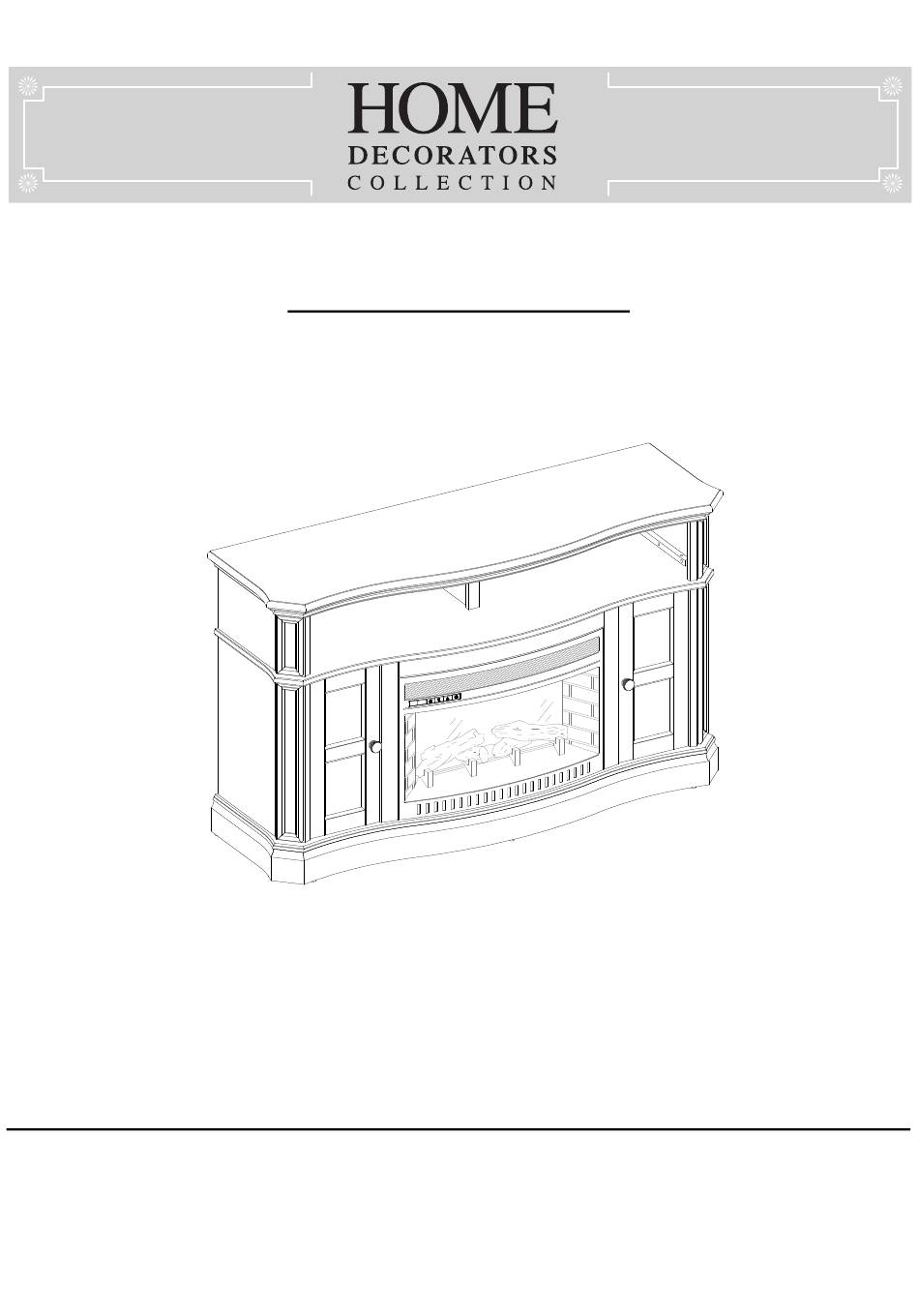

Glenrae 58 in. Media Bow Front Console with Infrared Electric Fireplace
in Antique Black Finish
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available
for your home improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection Glenrae WSFP60ECHD-21
Summary of Contents for Home Decorators Collection Glenrae WSFP60ECHD-21
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............... 2 Hardware Included ............3 Safety Information .............. 2 Package Contents ............3 Warranty ................2 Assembly ................4 Pre-Assembly ..............2 Care and Maintenance ............11 Planning Assembly ............2 Tools required ............... 2 Safety Information Fits up to most 177.8 cm / 70 in. -
Page 3: Hardware Included
Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Wood dowel 38 + 1 extra Magnetic catch Bolt 32 + 1 extra Pan head screw 4 + 1 extra Lock washer 32 + 1 extra L-shaped metal brace Flat washer 32 + 1 extra... -
Page 4: Assembly
Assembly Attaching the left lower partition panel NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. Refer to the dowel assembling guide drawings in this step for further clarification on how to properly glue in the wooden dowels. Apply this method whenever instructed to install wood dowels Unpack the unit and confirm that you have all the hardware and required parts. - Page 5 Assembly (continued) Assembling the lower side panels Glue six wood dowels (AA) into the non-threaded holes on the base (C). □ Align and attach the lower side panels (D) to the base (C) with four bolts (BB) and four washers (CC and DD). □...
- Page 6 Assembly (continued) Installing the center shelf Glue ten wood dowels (AA) into the top holes of both lower side panels (D) and partitional panels (E and F). □ Ask for assistance to position the center shelf (B) onto the inserted wood dowels (AA). Attach the center shelf (B) in place with ten bolts □...
- Page 7 Assembly (continued) Attaching the top panel assembly Glue eight dowels (AA) into the non-threaded holes of the center shelf (B). □ Align and attach the top panel assembly onto the inserted wood dowels (AA) and then fasten in place with six bolts (BB) and six □...
- Page 8 Assembly (continued) Installing the adjustable shelves Stand the assembled unit upright. □ Insert four shelf pins (GG) into the desired holes inside each side compartment. Tilt and rest the adjustable shelves (L) onto □ the shelf pins (GG) and secure in place with the screws (FF). Installing the doors Attach one knob (HH) to the front side of the left door (G) with the knob bolt (II).
- Page 9 Assembly (continued) Installing the fireplace insert Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO NOT drag the insert across the □ base (C) as it may scratch the unit. Attaching the L-shaped metal braces Using the pilot holes as a guide, align and attach two L-shaped metal braces (LL) to the base (C) by screwing one washer head screw □...
- Page 10 Assembly (continued) Installing the acrylic stopper Remove the paper backing from the acrylic stopper (MM), then properly align the acrylic stopper into the cut-out on the acrylic stopper □ template on the front of the top panel (A). Press down on the acrylic stopper to help adhesion. At the back of the top panel (A), carefully pull out the thumb tacks to remove the acrylic stopper template.
-
Page 11: Care And Maintenance
Care and Maintenance A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or shipping. To clean and care for your furniture: Use a soft, clean cloth that will not scratch the surface when dusting. □... - Page 12 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
