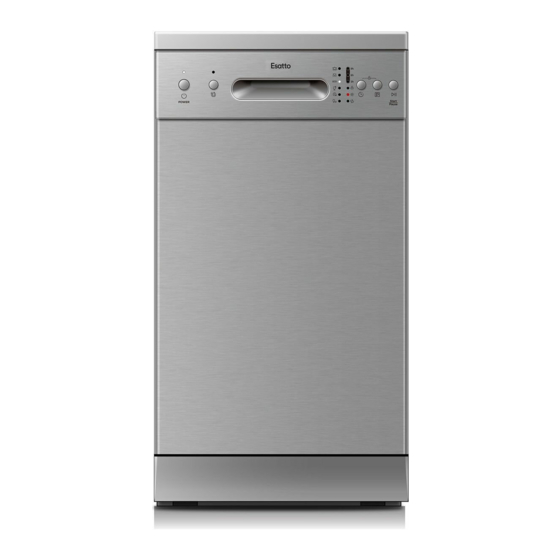

- Page 1 Product: Model Code/s: 45cm Compact EDW456S Freestanding Dishwasher User Manual Exactly what you need Version: Online: V1.1 0521 esatto.house...
- Page 2 User Manual Appliances Exactly what you need...
- Page 3 Contents Welcome General Safety Product Instructions Overview Quick Start Installation Using Your Guide Instructions Dishwasher Programming Other Loading The Dishwasher Dishwasher Tips The Baskets Troubleshooting Error Codes Technical Information Your Receipt Purchase Warranty Details Information...
- Page 4 Australia 3121 to ensure optimum performance. — Telephone Again, thank you for choosing an Esatto appliance and we look forward to being of 1300 11 4357 service to you. — Email Kind Regards, support@residentia.group...
- Page 5 General Safety Instructions SAFETY INFORMATION WARNING When using your dishwasher , follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...
- Page 6 User Manual supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1 ) Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 7 Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
- Page 8 User Manual Disposal For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
- Page 9 Product Overview CT OVERVIEW PRODUCT OVERVIEW ANT: IMPORTANT: performance from your dishwasher, read all operating instructions To get the best performance from your dishwasher, read all operating instructions for the first time. before using it for the first time.
-
Page 10: The Dishwasher
User Manual Quick Start Guide QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” of PART Ⅰ: Generic Version.) Inside Outside Loading the baskets Removing the larger residue on the cutlery Filling the dispenser... - Page 11 Installation Instructions INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals.
- Page 12 User Manual Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear.
- Page 13 Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm.
- Page 14 User Manual Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
- Page 15 Underneath existing work top (when fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).
-
Page 16: Using Your Dishwasher
User Manual Using Your Dishwasher USING YOUR DISHWASHER Control Panel Operation (Button) Press this button to turn on your dishwasher, the screen lights up. Power To dry dishes more completely. Extra drying (It can only be used with Intensive, Heavy, ECO, Glass ,90min) Delay Press the button to set the delay time. - Page 17 Display I I n n t t e e n n s s i i v v e e For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.
- Page 18 User Manual Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles...
- Page 19 Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other.
- Page 20 User Manual Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
- Page 21 Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
- Page 22 User Manual Filling The Rinse Aid Reservoir Rinse-Aid indicator To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the "open" (left) arrow and lift its dispenser, whilst avoiding it to it out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash.
- Page 23 Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads,...
- Page 24 User Manual Programming The Dishwasher PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser.
- Page 25 NOTE: *AS/NZS 2007.1 This program is the test cycle. The information for comparability test in accordance with *AS/NZS 2007.1. Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
- Page 26 User Manual Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Press the Start/Pause button to pause the washing. 2. Wait 5 seconds then open the door. 3.
- Page 27 Other Dishwasher Tips USING YOUR DISHWASHER Before using your dishwasher : Inside Outside 1. Loading the basket (Refer to the Loading the Baskets (AS/NZS 2007.1) section) 2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) (Refer to the Filling The Rinse Aid Reservoir section) 3.
- Page 28 User Manual Type 2: To raise the rack to the upper position, To lower the rack, push down on the lift rack until both sides are at the same handle and release. height. The rack will secure into place. Folding back the cup shelves To make room for taller items in the dishwasher basket, raise the cup rack upwards.
- Page 29 MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door.These surfaces are outside the wash cabinet and are not...
- Page 30 User Manual Coarse filter Coarse filter Main filter Main filter Fine filter Open Open Hold the coarse filter and rotate it The fine filter can be pulled off the anticlockwise to unlock the filter. bottom of the filter assembly. Lift the filter upwards and out of The coarse filter can be detached the dishwasher.
- Page 31 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the centre still and out the spray arm upward.
- Page 32 User Manual Caring For The Dishwasher Frost precaution please take frost protection measures on the dishwasher in winter. Every fter washing cycles,please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3.
- Page 33 Loading The Baskets (AS/NZS 2007.1) LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: 1.Upper basket: Item Number Cups Saucers Glasses Item Number Dessert dishes Dinner plates Soup plates...
- Page 34 User Manual 3.Cutlery basket: Number Item Soup spoons Forks Knives 4 4 4 Teaspoons Dessert spoons Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 10 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5g/22.5g Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)
- Page 35 Troubleshooting TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker.
- Page 36 User Manual Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. have been used. White film on Hard water minerals. To clean the interior, use a damp inside surface sponge with dishwasher detergent...
- Page 37 Problem Possible Causes What To Do The dishes Not enough detergent Use more detergent, or change are not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray the movement of can rotate freely.
- Page 38 User Manual Problem Possible Causes What To Do The dishesare Wrong program has With a short programme, the not drying been selected. washing temperature is lower, decreasing cleaning performance. Choose a programme with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating.
- Page 39 Error Codes ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Codes Meanings Possible Causes The Rapid light Faucets is not opened, or water intake is Longer inlet time. flicker fleetly restricted, or water pressure is too low.
-
Page 40: Technical Information
User Manual Technical Information TECHNICAL INFORMATION Height (H) 845mm Width (W) 448mm Depth (D1) 600mm (with the door closed) Depth (D2) 1150mm (with the door opened 90°) - Page 41 Product fiche Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010: Manufacturer Esatto Type / Description EDW456S Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.55 kWh Water consumption of the standard cleaning cycle 10.9 liter...
- Page 42 User Manual Attached your receipt to this page...
- Page 43 Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO.
- Page 44 User Manual Appliances Exactly what you need...
- Page 45 esatto.house...
-
Page 46: Warranty Information
User Manual Warranty Information AUSTRALIA WARRANTY TERMS & CONDITIONS IN THIS WARRANTY DISHWASHING APPLIANCES ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in This document sets out the terms and conditions of the the ACL;... - Page 47 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group in Australia, the Appliances come with a Group or its ASR. If you reside outside of the service...
- Page 48 This page User Manual is intentionally left blank Appliances Exactly what you need A RESIDENTIA GROUP INITIATIVE...
