Summary of Contents for Esatto EDW6S

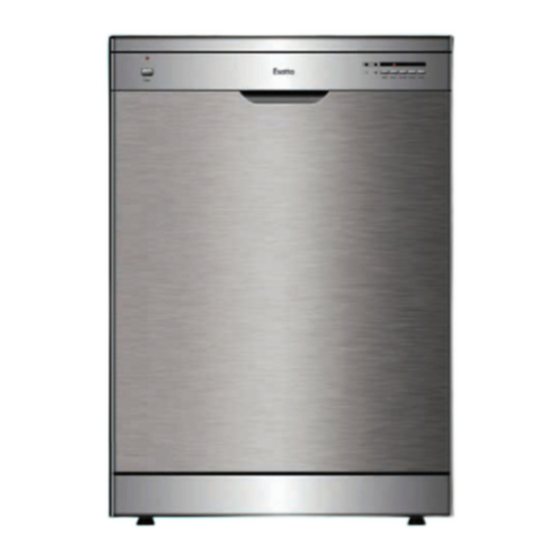

- Page 1 Model Code/s: Product: Document: EDW6S Freestanding User Manual Dishwasher...
- Page 2 Again, thank you for choosing an Esatto appliance and we look forward to being of service to you. Kind Regards, The Residentia Team...
-
Page 3: Table Of Contents
User Manual: Page: Contents: Page: Safety instructions Your Dishwasher Installation Instructions Operating Your Dishwasher Cleaning & Maintenance Troubleshooting Technical Data Warranty Information... -
Page 4: Safety Instructions
User Manual: Page: Safety Instructions This dishwasher is intended to be used in domestic environments only, including: → household kitchen; → staff/office kitchen; → hotel/motel kitchens; or → bed and breakfast type environments. It has not been designed for use in commercial kitchen environments. Warning Please ensure that you carefully read this user manual before installing and using the dishwasher, as it will help you to use and maintain the... - Page 5 User Manual: Page: → This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) →...
-
Page 6: Your Dishwasher
User Manual: Page: Your Dishwasher SPECIFICATIONS Upper Basket 2 Spray Arms 3 Lower Basket Main Filter 5 Detergent Dispenser 6 Cup Shelf Cutlery Basket 8 Coarse Filter 9 Rinse Aid Dispenser 10 Drain Pipe 11 Inlet pipe connector MODEL PRODUCT DIMENSIONS (W×D×H) PRODUCT FEATURES EDW6W 600mm, 580-1175mm, 850mm... -
Page 7: Installation Instructions
User Manual: Page: Installation Instructions It’s important to carefully read the following installation instructions before beginning the installation of your dishwasher. Important! The installation of the pipes and electrical outlets should be completed by suitably licensed and qualified persons. POSITIONING →... - Page 8 User Manual: Page: COLD WATER CONNECTION → Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. → If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear.
-
Page 9: Operating Your Dishwasher
User Manual: Page: Operating Your Dishwasher QUICK OPERATION GUIDE... - Page 10 User Manual: Page: CONTROL PANEL Power Button: To turn the dishwasher on/off. Power Indicator: Indicates when the power is switched on. Rinse Aid Indicator: Indicates when the rinse aid dispenser needs refilling. End Cycle Indicator: Indicates when the washing program has finished. Program Indicators: Displays which wash program you have selected.
- Page 11 User Manual: Page: ADJUSTING THE RINSE AID DISPENSER → The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5".
- Page 12 User Manual: Page: FILLING YOUR DETERGENT DISPENSER → Compartment A (below) is for the main wash cycle detergent. → Compartment B is for the pre-wash cycle detergent. This can be used for heavily soiled dishes. → In regards to dosage, follow the instructions of the detergent manufacturer.
- Page 13 User Manual: Page: LOADING THE DISHWASHER Only use utensils and dishes that are identified as dishwasher safe or proof. → To prevent damage to your dishes and glassware, do not remove them from the dishwasher immediately after the program has ended. Items that are not suitable for the dishwasher: →...
- Page 14 User Manual: Page: ADJUSTING THE UPPER BASKET → The height of the upper basket can be adjusted in order to create more space for large dishes both for the upper and lower basket racks. The height of the upper basket rack can be adjusted by lifting up the basket for the upper position, and lifting up the handle to lower the upper basket, see the picture below: FOLDING BACK THE CUP SHELVES...
- Page 15 User Manual: Page: CUTLERY BASKET → Cutlery should be placed in the cutlery basket separately from each other in the appropriate positions, and do make sure the utensils do not nest together. STARTING A WASH CYCLE → Load the cutlery and dish basket racks. →...
-
Page 16: Cleaning & Maintenance
User Manual: Page: Cleaning & Maintenance FILTERING SYSTEM The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter, a flat (main filter) and a microfilter (fine filter). →... - Page 17 User Manual: Page: CARING FOR THE DISHWASHER → The control panel of the dishwasher can be cleaned using a slightly dampened cloth. After cleaning, ensure it is dryed thoroughly. → To clean the internal edge of the door, you should only use a soft, damp cloth with warm water.
-
Page 18: Troubleshooting
User Manual: Page: Troubleshooting & Technical Data OPERATION IN CASE OF EMERGENCY Important! If your dishwasher appears to be operating incorrectly, then you should disconnect it from the power outlet and then contact the Residentia Group Support team on 1300 11 HELP (4357). In the event of an emergency you should: →... - Page 19 User Manual: Page:...
-
Page 20: Technical Data
User Manual: Page: ERROR CODES When some malfunctions occur, the dishwasher may display some error codes to warn you of an issue. TECHNICAL DATA Electrical details Rated Voltage: 220 - 240 Volts, 50 Hz Capacity: 12 Place Settings Water Pressure: 0.04-1.0 MPa... - Page 21 User Manual: Page:...
-
Page 22: Warranty Information
User Manual: Page: Warranty WARRANTY TERMS & CONDITIONS DISHWASHERS (FREESTANDING, INTEGRATED) → This document sets out the terms and conditions of the product warranties for Residentia Group Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance. - Page 23 User Manual: Page: Warranty continued You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Residentia Group is not liable in the following situations (which are not exhaustive): the Appliance is damaged by: accident (ii)
- Page 24 User Manual: Model Code/s: Page: EDW6S...
