Summary of Contents for Esatto EBTDW2D

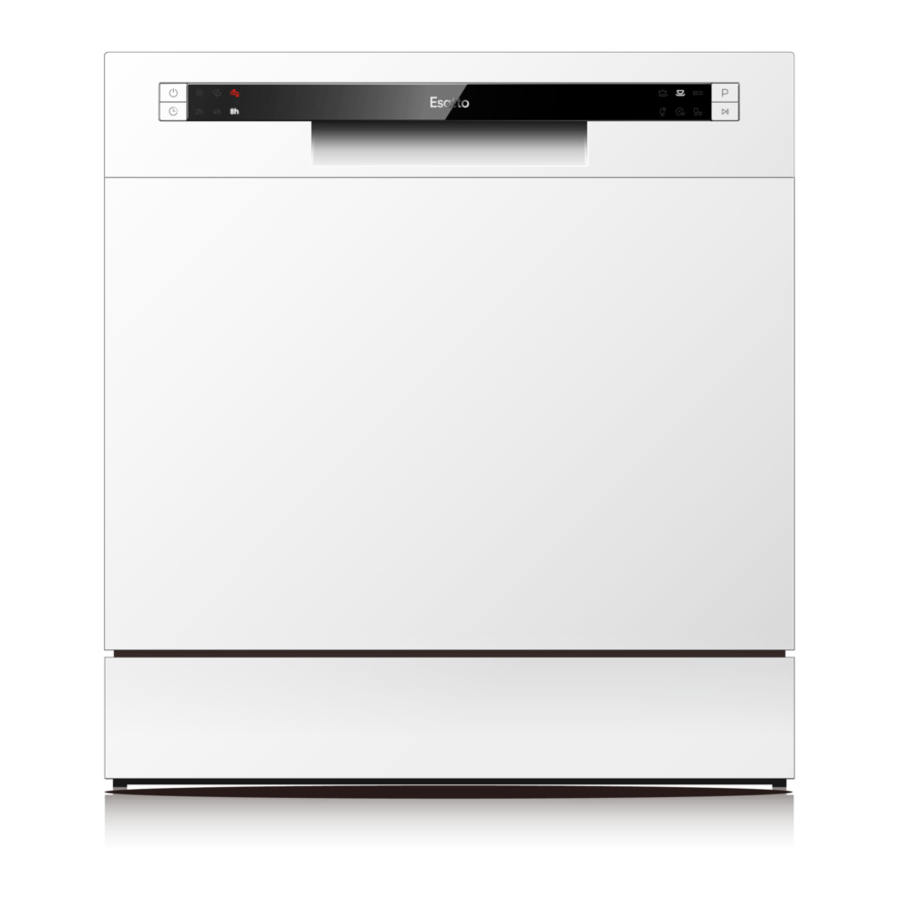

- Page 1 Product: Model Code/s: Bechtop EBTDW2D Dishwasher User Manual Exactly what you need Online: esatto.house...
- Page 2 User Manual...
-
Page 3: Table Of Contents
Contents Welcome Quick Start Guide Safety Disposal Information Operation Getting Instructions Started Loading the Starting a Dishwasher Wash Program Maintenance Installation & Cleaning Instructions Troubleshooting Technical Information Purchase Warranty Details Information... - Page 4 It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an Esatto appliance and we look forward to being of service to you. Kind Regards, The Residentia Team Postage.
- Page 5 Quick Start Guide Quick operation guide For more details on operation, please read the relevant content in this manual. For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the Power switch button to switch on the appliance, Open the door.
-
Page 6: Safety Information
User Manual Safety Information 1.IMPORTANT SAFETY INFORMATION When using your dishwasher, WARNING! follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses;... - Page 7 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Page 8 User Manual Disposal Disposal This appliance's packaging materials are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. It is prohibited to dispose of this appliance as household waste.Correct Disposal of this product: this symbol on the product or in its packing indicates that this product may not be treated as household waste.
-
Page 9: Operation Instructions
Operation Instruction 3.Operation Instruction IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel 3 4 5 Power Button: To turn on/off the power supply. Delay setting indications Program Selector: Press the button to select Delay Button : To press the button to delay. - Page 10 User Manual Getting Started Prior using for the first time Prior using for the first time Prior using for the first time Before using your dishwasher for the first time: Before using your dishwasher for the first time: Before using your dishwasher for the first time: Rinse aid dispenser Rinse aid dispenser Rinse aid dispenser...
- Page 11 NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser Adjust lever set on "4".
-
Page 12: Loading The Dishwasher
User Manual Adding detergent to dispenser Adding detergent to dispenser Push latch to open Push latch to open Fill in Detergent Fill in Detergent For main wash detergent. For main wash detergent. Fill the detergent dispenser with detergent. Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as For pre-wash detergent. - Page 13 Attention before or after loading the Dishwasher Baskets (For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans It is not necessary to rinse the dishes under running water.
- Page 14 User Manual Up Shelf Down Shelf Soup spoons Teaspoons Dessert spoons 2 Forks Knives WARNING! Do not let any item extend through bottom. Always load sharp utensils with the sharp point down! For personal safety and a top quality clean, place the silverware in the basket: They do not nest together.
- Page 15 Starting a Wash Program 6.Starting a washing programme Wash Cycle Table Detergent Cycle Selection Description Running Water Energy Rinse Program pre/main Information of Cycle time(min) (Kwh) Pre-wash 50℃ Wash (65 ℃) For heaviest soiled crockery、 Rinse soiled pots、pans、dishes 5/20g Rinse 1.25...
-
Page 16: Maintenance & Cleaning
User Manual Maintenance & Cleaning 7.Maintenance and Cleaning Filtering System The filter prevent larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain. - Page 17 Change the Program Premise: You can modify the washing program, When the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "...
- Page 18 User Manual Remarks: - Inspect the filters for blocking every time the dishwasher has been used. - By unscrewing the coarse filter.you can remove the filter system.Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. Cleaning The Filter To clean the coarse filter and the fine filter, use a cleaning brush.
- Page 19 Cleaning the Spray Arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. Open Cleaning the Spray Arms To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.
- Page 20 User Manual Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. About Power Connection WARNING! For personal safety:...
- Page 21 Connection of drain hoses Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance. The free end of the hose must be at a height lower than75cm and must not be immersed in water to avoid the back flow of it.
- Page 22 User Manual How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
-
Page 23: Troubleshooting
Troubleshooting 9.Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn t Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other start circuit breaker tripped. - Page 24 User Manual Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent.
-
Page 25: Technical Information
Technical Information Technical Information Technical Information Height : 590mm Width : 550mm Depth : 500mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 8 Place settings... - Page 26 User Manual Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO.
- Page 27 Attach your receipt to this page →...
-
Page 28: Warranty Information
User Manual Warranty Information WARRANTY TERMS & CONDITIONS IN THIS WARRANTY DISHWASHERS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in the ACL; This document sets out the terms and conditions of the ‘ACL’... - Page 29 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a or its ASR. If you reside outside of the service area,...
- Page 30 User Manual This page is intentionally left blank...
- Page 31 This page is intentionally left blank...
- Page 32 Appliances Exactly what you need W W W. R E S I D E N T I A . G R O U P...
