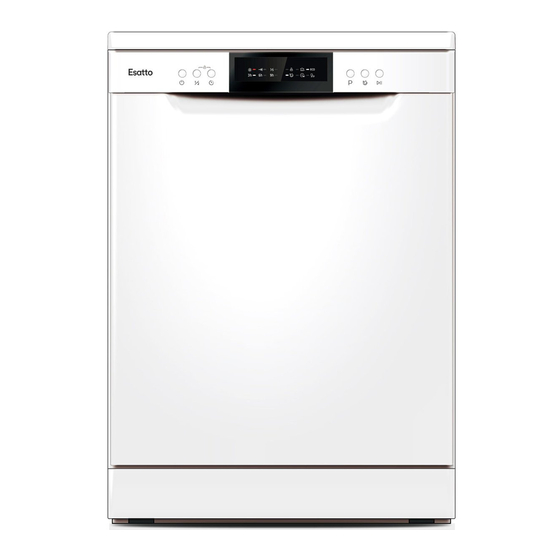

- Page 1 Model Code/s: Product: Document: EDW7CS 60cm User Manual Freestanding Dishwasher...
- Page 2 Again, thank you for choosing an Esatto appliance and we look forward to being of service to you. Kind Regards, The Residentia Team...
-
Page 3: Table Of Contents
User Manual: Page: Contents: Page: Quick Operation Guide Safety Instructions Operation Instruction Prior to Using for the First Time Loading the Dishwasher Baskets Starting a Washing Program Maintenance & Cleaning Installation Instructions Troubleshooting Tips Technical Data Warranty... -
Page 4: Quick Operation Guide
User Manual: Page: Quick Operation Guide Quick Operation Guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, press the On/Off button to switch on the appliance. Compartment A: For each wash cycle. Compartment B: Fill the detergent dispenser For programs with pre-wash only. -
Page 5: Safety Instructions
User Manual: Page: 1.IMPORTANT SAFETY INFORMATION Safety Instructions READ ALL OF THE INSTRUCTIONS BEFORE USING WARNING! When using your dishwasher, follow the precautions listed below: GROUNDING INSTRUCTIONS WARNING! This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. -
Page 6: Operation Instruction
User Manual: Page: 2.Operation Instruction IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel 1. On/Off Button: to switch On/Off the appliance; 2.Alt function Button: Dual zone wash function, press the 10.Child lock indicator;... -
Page 7: Prior To Using For The First Time
User Manual: Page: Prior using for the first time Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent A. Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. - Page 8 User Manual: Page: NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings.
- Page 9 User Manual: Page:...
-
Page 10: Loading The Dishwasher Baskets
User Manual: Page: 4.Loading the Dishwasher Baskets Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. - Page 11 User Manual: Page: The Method Loading Normal Dishware Loading the Upper Basket Loading the Lower Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, serving dishes and...
-
Page 12: Starting A Washing Program
User Manual: Page:... - Page 13 User Manual: Page: NOTE: When you press the Start/Pause button to pause during washing, the LED display window will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Change the Program... Premise: A cycle that is underway can only be modified if it has only been running for a short time.
-
Page 14: Maintenance & Cleaning
User Manual: Page: 6.Maintenance and Cleaning Filtering System The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter, a flat (Main filter) and a microfilter(Fine filter). - Page 15 User Manual: Page: Notes: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week.
-
Page 16: Installation Instructions
User Manual: Page: How to Keep Your Dishwasher in Shape After Every Wash When not in Use for a LongTime It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of... - Page 17 User Manual: Page: Improper connection of the equipment earthing conductor can result in the risk of an WARNING! for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed.
- Page 18 User Manual: Page: How to Drain Excess Water From Hoses If the sink is more than 1000mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
-
Page 19: Troubleshooting Tips
User Manual: Page: 8.Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other start circuit breaker acted appliances sharing the same circuit with the dishwasher... - Page 20 User Manual: Page: Problem Possible Causes What To Do Problem Possible Causes What To Do Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". The dishes The dishes were not loaded correctly.
-
Page 21: Technical Data
User Manual: Page: If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leaks, WARNING! the water should be removed before restarting the dishwasher. If overflow occurs, turn off the main water supply before calling a service. - Page 22 User Manual: Page:...
- Page 23 User Manual: Page:...
- Page 24 User Manual: Page: THIS PAGE IS INTENTIONALLY LEF T BL ANK...
- Page 25 User Manual: Page: THIS PAGE IS INTENTIONALLY LEF T BL ANK...
-
Page 26: Warranty
User Manual: Page: Warranty WARRANTY TERMS & CONDITIONS DISHWASHERS (FREESTANDING, INTEGRATED) → This document sets out the terms and conditions of the product warranties for Residentia Group Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance. - Page 27 User Manual: Page: Warranty continued You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Residentia Group is not liable in the following situations (which are not exhaustive): the Appliance is damaged by: accident (ii)
- Page 28 Model Code/s: EDW7CS...
