PREMIUM STRINGER 9200 User Manual page 10

TENSIONER OPERATION
1. Setting the control panel :
a). Set the tension display in KG or LB by pressing the KG/LB key.
b). Select pre-stretch value – 0%, 10% or 20% by pressing PRE-STRETCH key.
c). Select speed– high, medium or low by pressing SPEED ke y.
d). Select the stringing pattern – Knot, Main or Cross by pressing KNOT, MAIN
or CROSS keys.
e). Set the desired tension by holding the +/-1.0 or +/-0.1 kgs or lbs keys down.
Press "M" key immediately or wait for 3 seconds to store the tension setting.
2. Tensioning a string

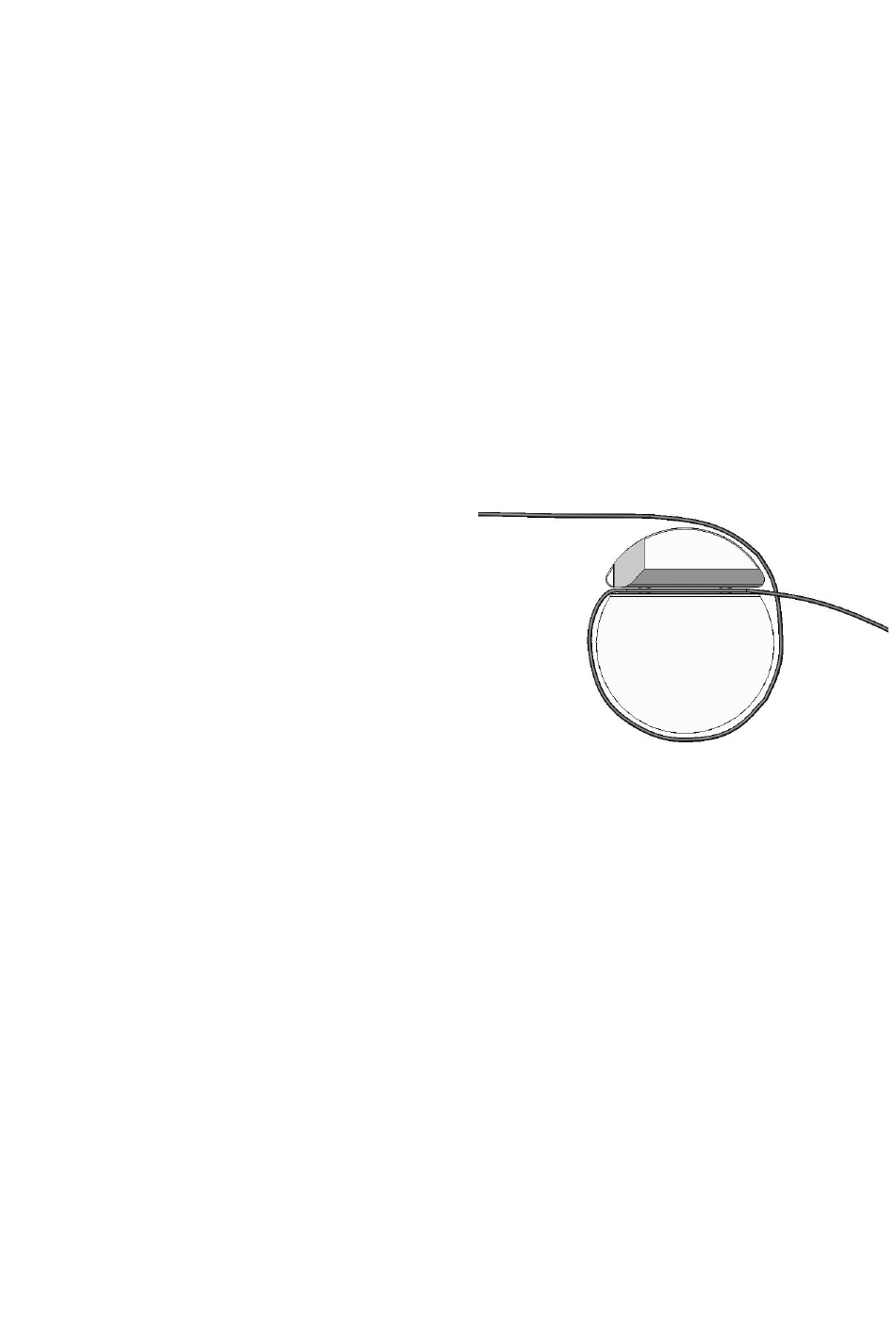

Pass the string over the top of the
string gripper and wrap the string
clockwise around the gripper drum
and position of the string between the
gripper jaws.
Press the green tensioning switch next
to the string gripper or START key on
the control panel to activate the
tensioner.
3. Releasing a string:
To release the string after clamping, press the green tensioning switch next to
the string gripper again or "R" key on the control panel.
10
