Summary of Contents for CDA HCG302

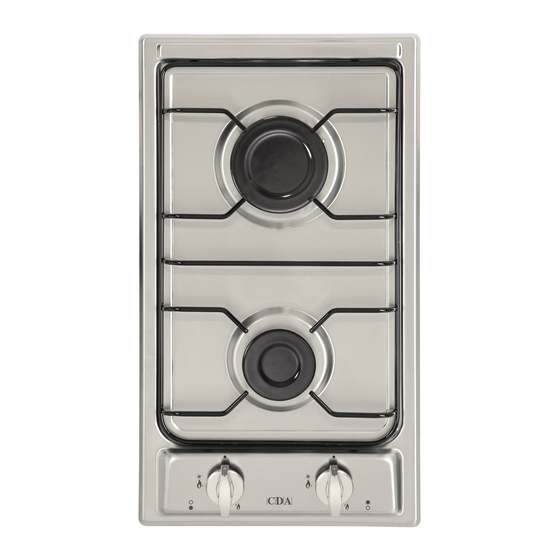

- Page 1 HCG302 Built-in Gas Cooking Installation, Use and Maintenance www.cda.eu...
-
Page 2: Declaration Of Ce Conformity
The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance. -
Page 3: Important Safety Precautions And Recommendations
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. - Page 4 • CAUTION: this appIiance must only be installed in a permanently ventilated room in compliance with the applicable regulations. • Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.
- Page 5 • WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
- Page 6 ENERGY LABELLING/ECODESIGN • Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the European Parliament and of the Council). Reference to the measurement and calculation methods used to establish compliance with the above requirements: • Standard EN30-2-1 (hobs: gas fired burners). USE OF THE APPLIANCE, ENERGY SAVING TIPS GAS FIRED BURNERS •...
- Page 7 ADVICE ADVICE for the for the INSTALLER INSTALLER...
- Page 8 IMPORTANT : • The appliance is designed and approved for domestic use only and should not be installed in a commercial, semi commercial or communal environment. Your product will not be guaranteed if installed in any of the above environments and could affect any third party or public liability insurances you may have.
-
Page 9: Installation
Installation TECHNICAL INFORMATION FOR THE INSTALLER In order to install the cooker top into the kitchen fixture, a hole with the dimensions shown in fig. 1.1a has to be made, bearing in mind the following: • A 30mm ventilation gap must be provided between the bottom of the appliance and any cabinetry, draw unit or appliance. - Page 10 Fig. 1 Cooktop installed Fig. 2 Measures (mm) Description (minimum) (minimum) 30cm wide models...
-
Page 11: Fastening The Cooktop
FASTENING THE COOKTOP Each cooktop is provided with an installation kit including brackets and screws for fastening the cooktop to benches from 20 to 40mm thick. The kit includes two “F” type brackets (for the front of the cooktop), two “R” type brackets (for the rear of the cooktop) and four self-threading screws “S”. -
Page 12: Provision For Ventilation
PROVISION FOR VENTILATION • The appliance should be installed into a room or space with an air supply in accordance with the current version of BS 5440-2: 2000. • For rooms with a volume of less than 5m - permanent ventilation of 100 cm free area must be provided. -
Page 13: Gas Section
Gas Section GAS INSTALLATION REQUIREMENTS Important ! • Before installation, make sure that the local distribution conditions (gas type and pressure) and the adjustment of this appliance are compatible. The appliance adjustment conditions are given on the plate or the label. •... -
Page 14: Gas Connection
GAS CONNECTION Cat: 2H 3+ Installation to Natural Gas Installation to Natural Gas must conform to the Code of Practice, etc. The supply pressure for Natural Gas is 20 mbar. The installation must conform to the relevant British/European Standards. Installation to LP Gas When operating on Butane gas a supply pressure of 28-30 mbar is required. - Page 15 The fitting (fig. 6) is made up of: 1/2" BSPP (G) parallel 1/2" BSPP (G) parallel – 1 nut “A” (ISO 228-1) male (ISO 228-1) female – 1 elbow fitting “C” – gasket “F” Connection to the Gas Supply – Be careful when flexible pipes are used that they do not come into contact with moving parts.
-
Page 16: Lubrication Of The Gas Taps
GAS MAINTENANCE TABLE FOR THE CHOICE OF THE INJECTORS G30/G31 GB IE Cat: II 2H 3+ 28-30/37 mbar 20 mbar Nominal Reduced Ø injector Ø injector BURNERS Power Power [1/100 mm] [1/100 mm] [kW] [kW] Semi-rapid (SR) 1,75 0,45 Rapid (R) 3,00 0,75 Triple-ring (TR) -
Page 17: Cooktop Burners
REPLACEMENT OF THE INJECTORS Semi-rapid Fig. 8 If the injectors are not supplied they can be and Rapid obtained from the “Service Centre”. burner Select the injectors to be replaced according to the “TABLE FOR THE CHOICE OF THE INJECTORS”. nozzle diameters, expressed... -
Page 18: Mains Electricity Connection
Mains Electricity Connection Incorrect installation may be dangerous and the manufacturer can not be held responsible. Warning! This appliance must be earthed The manufacturer declines all responsibility for any problem caused by failure to observe this rule. THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. - Page 19 ADVICE ADVICE for the for the USERS USERS...
-
Page 20: Features And Technical Data
Features and Technical Data Fig. 1 Fig. 2 Fig. 3 Fig. 4 Caution! NOTE: Do not cover the hob with aluminium The knobs and symbols may vary. foils. -
Page 21: Gas Burners
GAS BURNERS Semirapid (SR) 1,75 kW Rapid (R) 3,00 kW Triple-ring (TR) 3,80 kW CONTROLS DESCRIPTION Rapid burner control knob (2) Semirapid burner control knob (1) Triple-ring burner control knob (3) NOTES: ■ The electric ignition is incorporated in the knobs. ■... -
Page 22: How To Use The Cooktop
How To Use The Cooktop GAS BURNERS NOTE: The knob and symbols may vary. Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 5) which control the safety valves. Turning the knob, so that the indicator line points to the symbols printed on the panel, achieves the following functions: –... -
Page 23: Lighting The Burners
LIGHTING THE BURNERS To ignite the burner, the following instructions are to be followed: Press in the corresponding knob and turn counter-clockwise (fig. 6) to the full flame position marked by the “ ” symbol (fig. 5); hold the knob in until the flame has been lit. -
Page 24: Choice Of The Burner
CHOICE OF THE BURNER On the control panel, near every knob there is a diagram that indicates which burner is controlled by that knob. The suitable burner must be chosen according to the diameter and the capacity used. The burners and pans must be used in accordance with the following instructions: DIAMETERS OF PANS WHICH MAY BE USED ON THE BURNERS BURNERS MINIMUM... - Page 25 CORRECT USE OF TRIPLE-RING BURNER- OPTIONAL (models with triple-ring burner only) • To use the WOK you need to place the proper stand (if the the wok pan adapter is not supplied with the appliance, it is available as an accessory at extra cost) in order to avoid any faulty operation of the triple-ring burner (figs.
-
Page 26: Cleaning And Maintenance
Cleaning and Maintenance GENERAL ADVICE However special care should be taken around the rear or the underneath of the • Before you begin cleaning, you must appliance as these areas are not designed ensure that the appliance is switched off at the cooker switch. or intended to be touched and may contain sharp or rough edges, that may cause injury. -
Page 27: Control Knob
GAS TAPS • Do not let cleaning products come into contact with the valves. • Periodic lubrication of the gas taps must be carried out by specialist personnel only. • In the event of operating faults in the gas taps, call the Service Department. CONTROL KNOB The control knobs may be removed for cleaning but care should be taken not to damage the seal. - Page 28 Fig. 10 Fig. 11 Fig. 12 Fig. 14 Fig. 13...
-
Page 30: Appliance Servicing
Appliance Servicing CDA provide a quality and effective after-sales service to cover all your servicing needs. Please attach your receipt to this page for safekeeping. Please help us to help you by having the following information available when booking a service-call: Model type, make and model –... - Page 32 Please contact our Customer Care Department for Service on the details below Customer Care Department Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu www.cda.eu Copyright © CDA 2017...
