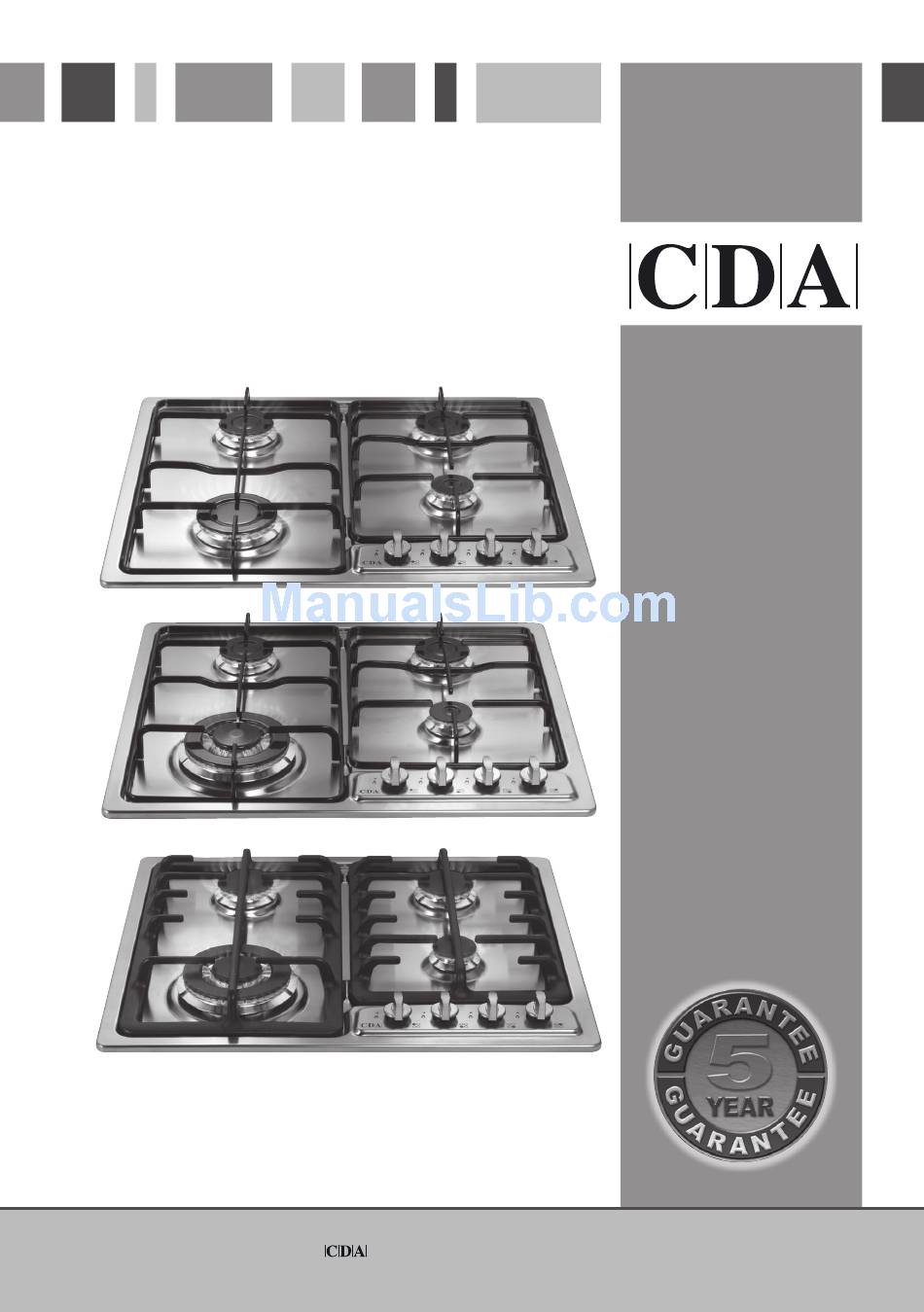

Manual for Installation, Use and Maintenance Passionate about style GB-IE Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
Page 2
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel. Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
Igniting the Burners To ignite the burners, follow these instructions: Lightly press the control knob (shown on the right) and turn the knob anti- clockwise to the maximum position. Press and hold the control down to begin the ignition process (a clicking sound will be heard). Once the burner is lit, adjust the burner power to the required position.
Page 5
Correct use of the optional Wok Pan Adaptor The wok pan adaptor is a special stand that is designed to be fitted over the Triple Ring burner to give support to round bottomed woks. When using a wok, always place the wok pan adaptor in position over the pan support on the Triple Ring burner as shown in Fig.5.
Over time with use, the stainless steel surface may discolour; this is normal and does not constitute a fault with this ap- pliance. Proprietary stainless steel cleaners are available. We recommend the CDA E-Cloth available from the CDA Sales Team for cleaning stainless steel surfaces.
Mains Electricity Connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E.
Gas Safety (installation and use) Regulations 1984. • The CDA Group Ltd is not legally able to provide any assistance in the installation of gas appliances except to Gas Safe registered installers. Any Gas Safe registered fitter requiring help must provide their name, address and registration number.
This hob can be converted from propane operation at a nominal inlet pressure of 37mbar or butane operation at a nominal inlet pressure of 28/30mbar to natural gas at 20mbar. This conversion must only be carried out by a competent person (i.e. a Gas Safe registered fitter). HCG602 Burner Rapid...
Fitting the Hob Unpacking the hob: Take care not to lose or mishandle any parts. Fitting position of the hob: This appliance must be installed a minimum of 50mm from any back wall and a minimum of 185mm away from any adjacent vertical surfaces, e.g.
Page 11
How to install the hob: Overall dimensions of the hob: Width: 585mm Depth: 500mm Worktop cut-out dimensions: Width: 550mm Depth: 470mm 1. Make the required hole in the worktop. Before doing this, you must check the instructions supplied with any cooker hood to ensure that you will have the required clearance.
